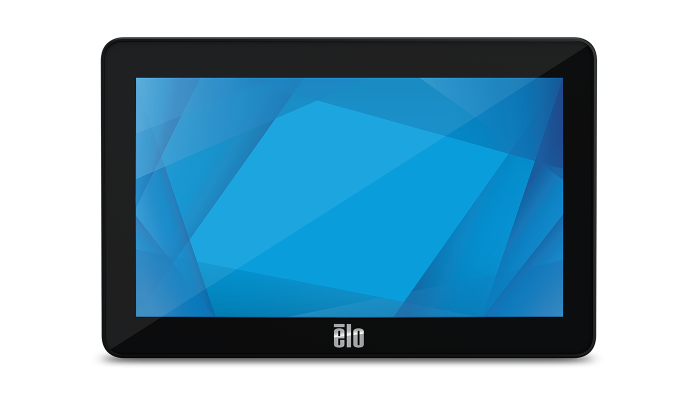

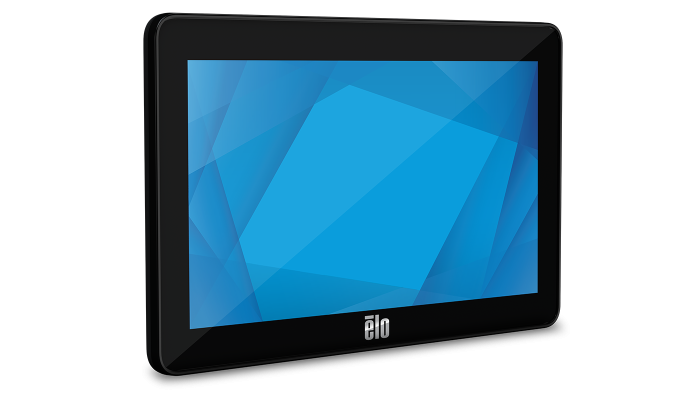

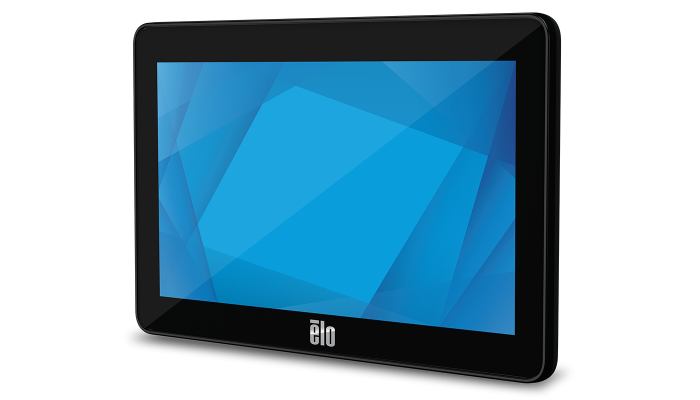

The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
DisplayLink technology supports Windows, Android and Linux operating systems.
|
Part Number |
TouchPro PCAP (Worldwide) - E796382 |
|
Color |
Black |
|
Touch Technology & Capacity |
PCAP (Projected Capacitive) - 10 Touch |
|
Diagonal Size |
7'' diagonal, Active matrix TFT LCD (LED) |
|
Aspect Ratio |
5:3 |
|
Active Area |
6.07'' x 3.38'' / 154.08 mm x 85.92 mm |
|
Resolution |
800 x 480 |
|
Viewing Angle |
Horizontal: 75° or 150° total / Vertical: 55°/65° or 120° total |
|
Number of Colors |
16.2 million |
|
Brightness |
Panel: 500 nits; TouchPro PCAP: 430 nits |
|
Response Time-total (typical) |
25 msec |
|
Contrast Ratio |
500:1 |
|
Touch Interfaces |
USB |
|
Surface Treatment |
Anti-glare |
|
I/O Ports |
1 x Micro USB |
|
Input Video Frequency |
Horizontal: 31.5K KHz |
|
Power |
Input connector: Micro-USB |
|
Power Consumption (Typical) |
Monitor + adapter |
|
Monitor Dimensions (without Stand) |
4.61" x 7.11" x 0.7"' / 117.22 mm x 180.58 mm x 17.7 mm |
|
Shipping Box Dimensions |
6.69" x 9.13" x 3.74" / 170 mm x 232 mm x 95 mm |
|
Weight (Unpackaged) |
0.77 lbs / 0.35 kg |
|
Weight (Packaged) |
1.43 lbs / 0.65 kg |
|
Operating Temperature |
0°C to 40°C / 32°F to 104°F |
|
Storage Temperature |
-20°C to 60°C / -4°F to 140°F |
|
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% |
|
Mounting Options |
VESA 75mm x 75mm |
|
Other Features |
IK06 impact compliant |
|
Warranty |
3-year |
|
Regulatory approvals and declarations |
Canada cUL, IC |
|
Ingress Protection |
IP65 |
|
Impact Protection |
FHD Model: IK07 |
|
What's in the Box |
Touchmonitor |
