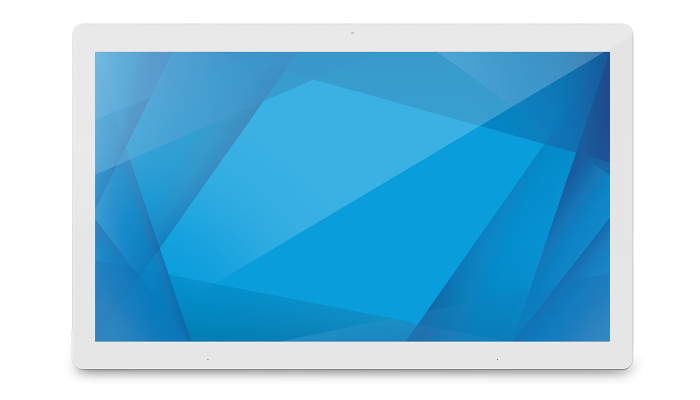

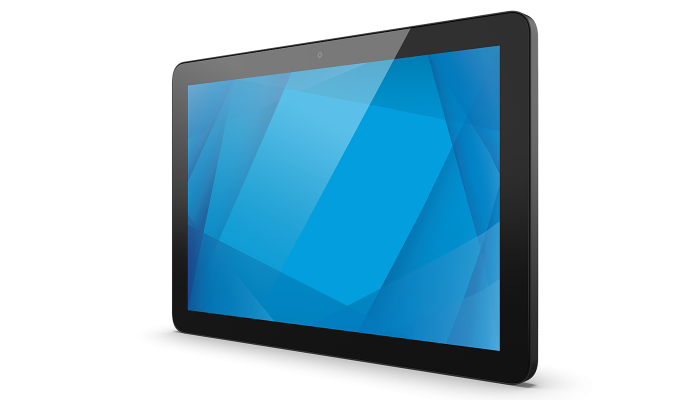

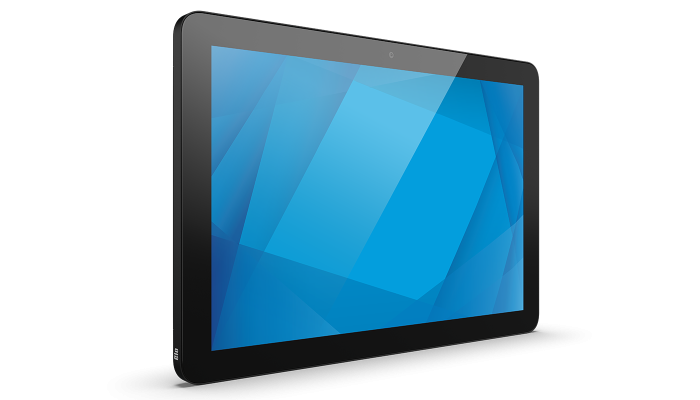

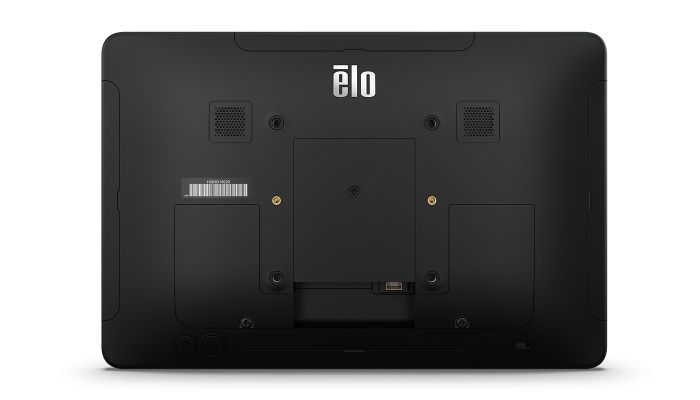

10-inch I-Series 4 for Android

Standard Model, Android 10, Black - E389883
Standard Model, Android 10, White - E411266 (MTO)
Standard Model, Android 12, Black - E746741
Value Model, Android 10, Black - E390647
Value Model, Android 10, White - E411643 (MTO)
Value Model, Android 12, Black - E792262

White or Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches

Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399

4GB

Standard Model: 64GB
Value Model: 32GB

Android 10 with Google Play Services (AOSP capable)
Upgrade to Android 12 and planned upgrade to Android 14 are available with an OS 360 subscription

10.1'' diagonal, Active matrix TFT LCD (LED)

16:10

8.54" x 5.34" / 217 mm x 136 mm

Standard Model: 1920 x 1200 @ 60Hz
Value Model: 1280 x 800 @ 60Hz

8-bit (16.7 million)

Standard Model:
LCD Panel: 450 nits
TouchPro PCAP: 387 nits

Value Model:
LCD Panel: 300 nits
TouchPro PCAP: 250 nits

25 msec

Standard Models: 900:1 / Value Models: 800:1

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three ports

1x USB 3.0 support (900mA)
Type C USB output
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in

1920 x 1080 @ 60Hz

Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus

802.11a/b/g/n/ac + Bluetooth 5.0

Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone

Standard Model: 2x 0.8W
Value Model: 2x 2W

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

Standard Model:
On: 8.5W
Off: 0.4W
Sleep: 4.5W

Value Model:
On: 7.2W
Off: 0.4W
Sleep: 3.4W

Supported via Elo PoE Device PN: E413396

9.96" x 6.65" x 0.87" / 252.9 mm x 169.0 mm x 22.1 mm

Standard Model: 12.6" x 6.0" x 9.3" / 320 mm x 150 mm x 235 mm
Value Model: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm

Standard Model: 2.0 lbs / 0.9 kg
Value Model: 1.8 lbs / 0.8 kg

Standard Model: 4.5 lbs / 2.1 kg
Value Model: 4.9 lbs / 2.2 kg

0°C to 40°C / 32°F to 104°F

-20°C to 50°C / -4°F to 122°F

Operating: 20% to 80%
Storage: 5% to 95%

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

50,000 hours demonstrated

VESA 75mm

2 years

3 year OS 360 - Elo P/N: E873133
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

Monthly Android security updates available with Elo OS 360 package.

Touchscreen sealed to LCD

I-Series 4
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)
