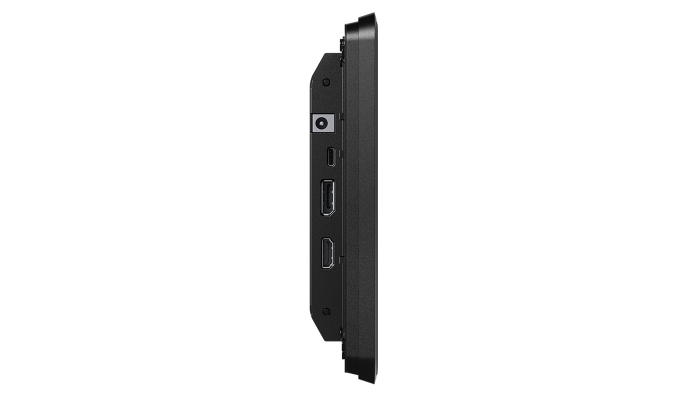

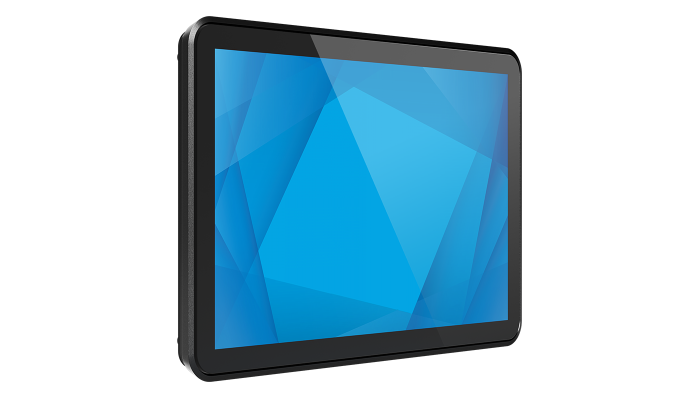

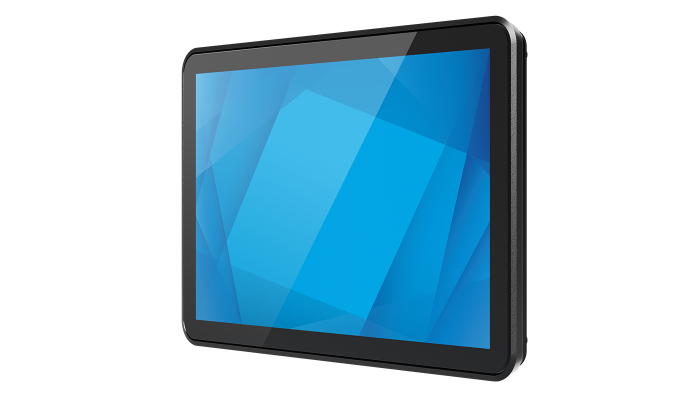

Elo’s 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Part Number |
TouchPro PCAP - E971060 |
Color |
Black |
Touch Technology & Capacity |
PCAP (TouchPro® Projected Capacitive) - 10 Touch |
Touch Thru |
TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches. |
Touch Interface |
USB 2.0 |
Diagonal Size |
10.1'' diagonal, Active matrix TFT LCD (LED) |
On Screen Display |
On screen OSD with menu and power buttons on the back of the unit. |
Aspect Ratio |
16:10 |
Active Area |
8.54" x 5.34" / 216.96 mm x 135.60 mm |
Resolution |
1280 x 800 |
Other Supported Resolutions |
640x480 60Hz |
Viewing Angle |
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
Number of Colors |
16.7 million |
Brightness |
LCD panel: 500 nits |
Response Time-total (typical) |
29 msec |
Contrast Ratio |
800:1 |
Video |
HDMI V1.4 Type A receptacle for HDMI input |
Power |
Option1: |
Maximum Operating Time |
24/7 |
Power Consumption (Typical) |
ON (Default - 80% Brightness): 6.52W |
Dimensions |
9.46" x 6.26" x 1.26" / 240.4 mm x 159.0 mm x 32.0 mm |
Shipping Box Dimensions |
12.40" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm |
Weight (Unpackaged) |
2.75 lbs / 1.25 kg |
Weight (Packaged) |
5.35 lbs / 2.43 kg |
Operating Temperature |
0°C to 40°C / 32°F to 104°F |
Storage Temperature |
-20°C to 60°C / -4°F to 140°F |
Humidity |
Operating: 20% to 80% |
Sealabilty |
IPX1 for front side |
MTBF |
50,000 hours demonstrated |
Warranty |
3 years |
Regulatory approvals and declarations |
Australia RCM |
Compliance |
GLI 27 kV air / 8 kV contact ESD compliance |
Energy Star |
Energy Star 7.0 |

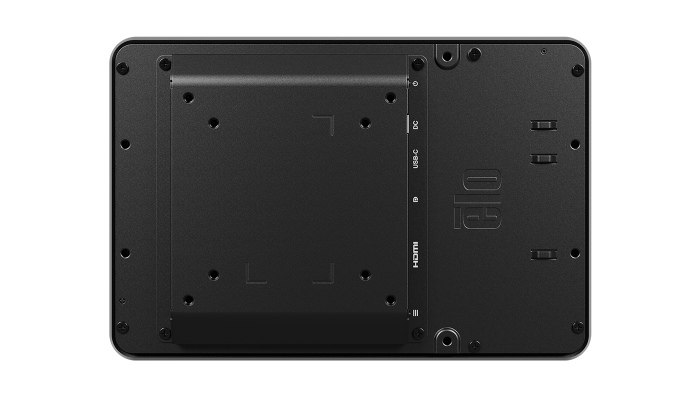

Mounting Options |
75 mm VESA mount |
What's in the Box |
1064L |
