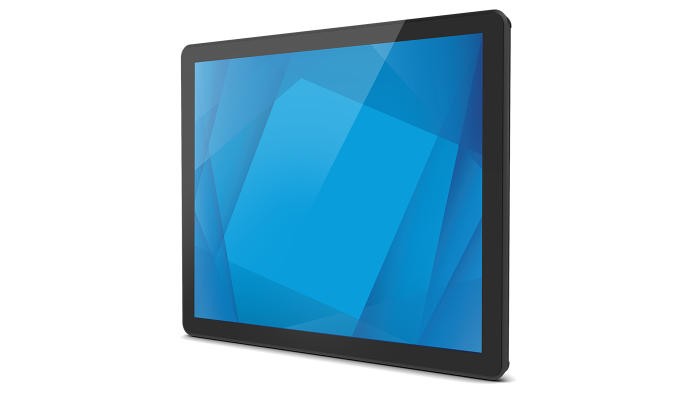

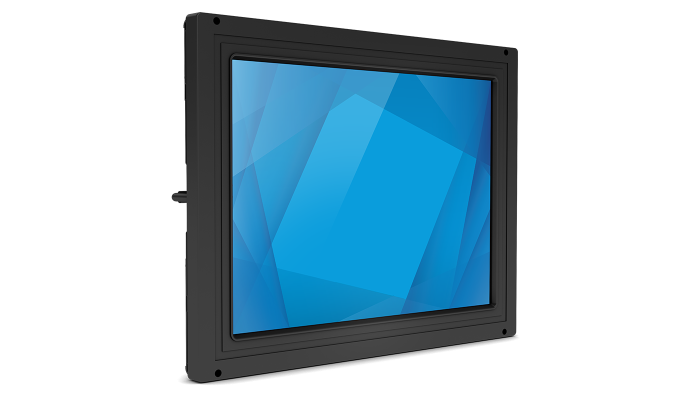

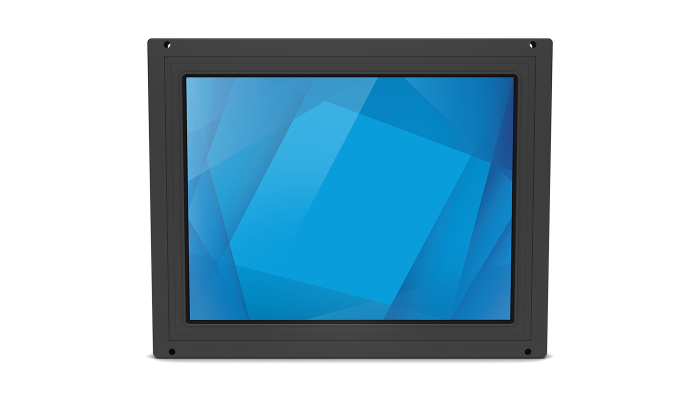

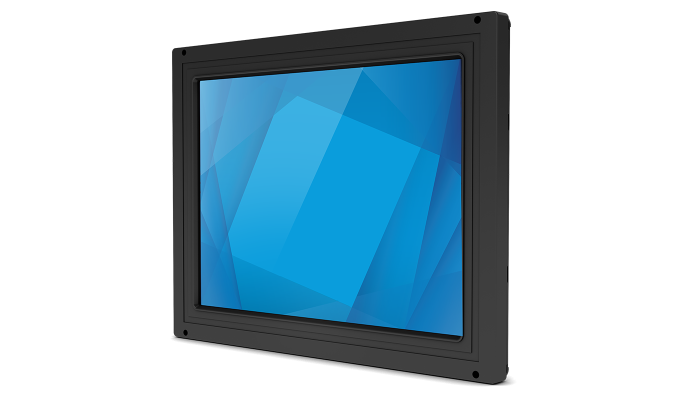

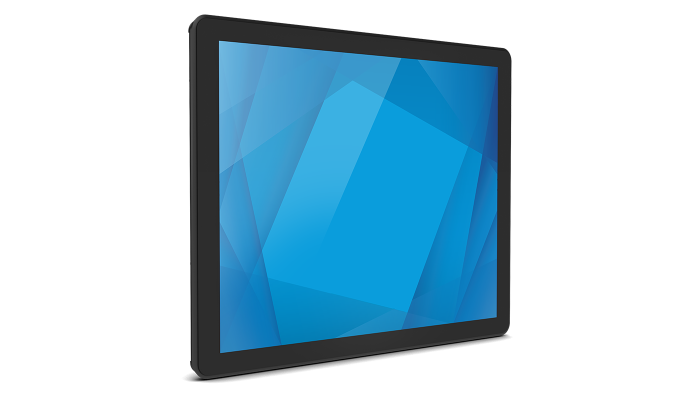

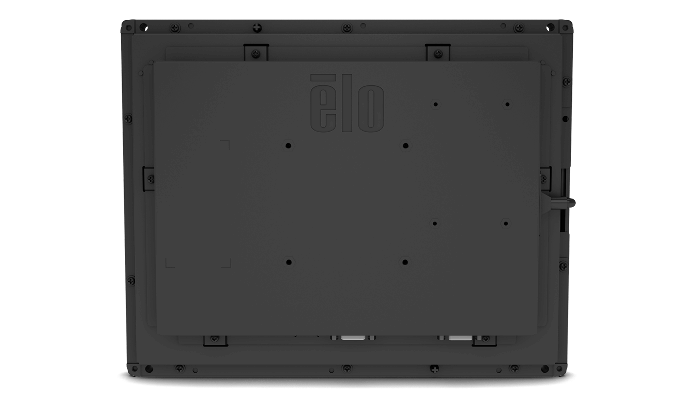

1291L 12″ Open Frame Touchscreen

IntelliTouch (Worldwide) - E329452
TouchPro PCAP (Worldwide) - E331595

Black

SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch

TouchPro PCAP - USB 2.0
IntelliTouch - Dual serial/USB 2.0

12.1'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

4:3

9.69" x 7.26"/ 246mm x 184.50mm

800 x 600 at 60 Hz

640 x 480 60Hz
800 x 500 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.2 million

LCD panel: 450 nits
IntelliTouch: 405 nits
TouchPro PCAP: 405 nits

25 msec

1500:1

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Horizontal: 30 - 60 KHz
Vertical: 50 - 75 Hz

HDMI, VGA & Display Port

External DC - Optional power brick (sold separately)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

12VDC +/- 5%

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Monitor + Adapter at 230V/50Hz
ON: 12.2 W
SLEEP: 1.5 W
OFF: 0.5W

Bezel: 11.91" x 9.54" x 1.96" / 302.5mm x 242.2mm x 49.8mm
Zero-Bezel: 11.90" x 9.53" x 1.77" / 302.5mm x 242mm x 44.9mm

15.12" x 12.68" x 14.38" / 384mm x 322mm x 185mm

5.8 lbs / 2.65 Kg

10.5 lbs / 4.75 Kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95%

Touchscreen sealed to bezel
Touchscreen sealed to LCD

50,000 hours demonstrated

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
RoHS, China RoHS, WEEE

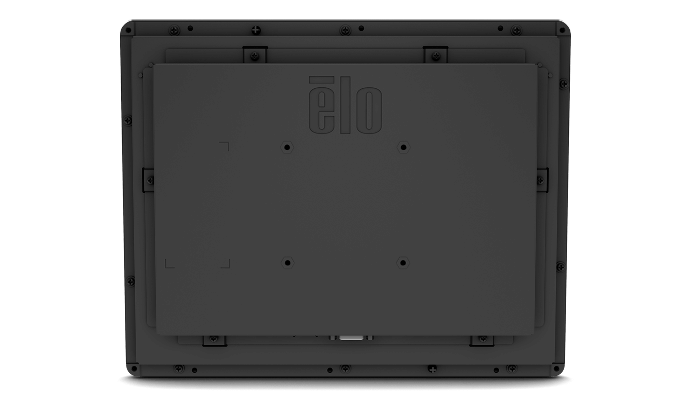

4-hole 75mm VESA mount
Rear mount through bezel or with included mounting brackets (IntelliTouch models).
Flush mount with included mounting brackets (TouchPro PCAP models)
See dimensional drawings for details

HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
