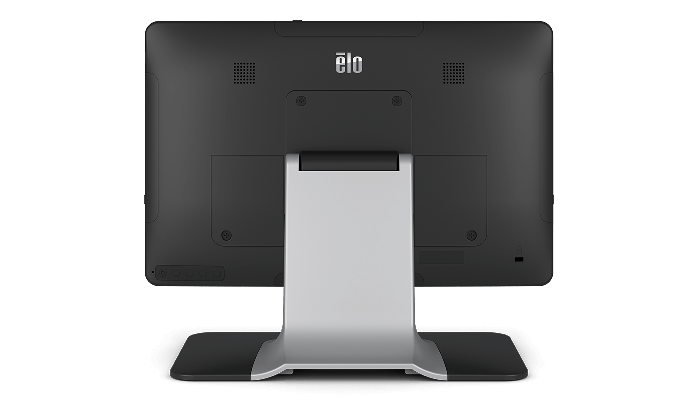

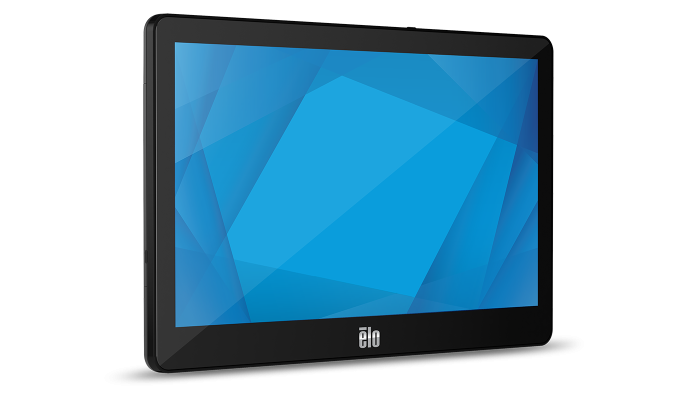

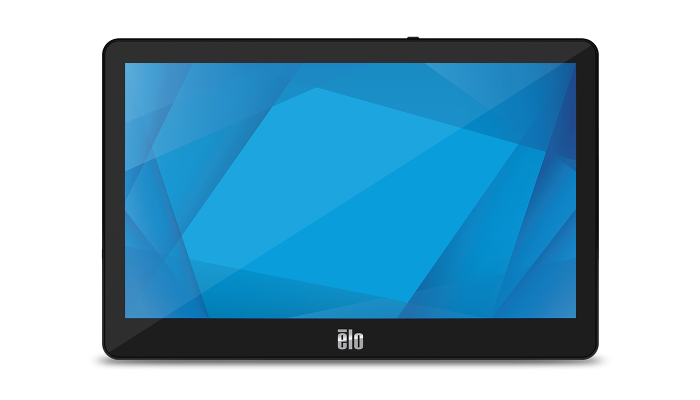

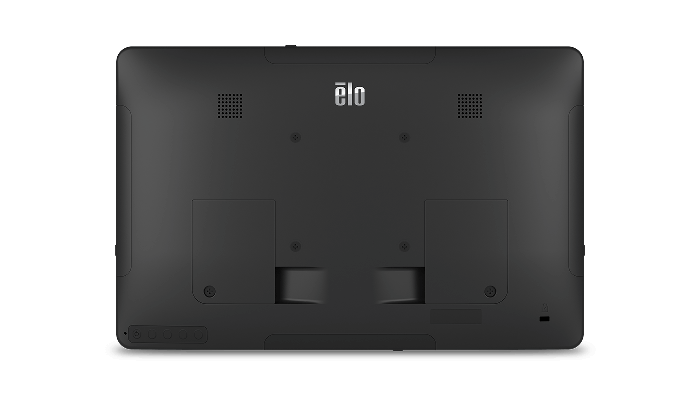

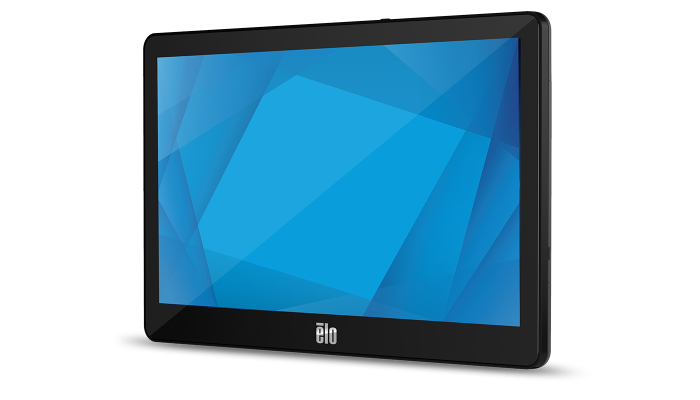

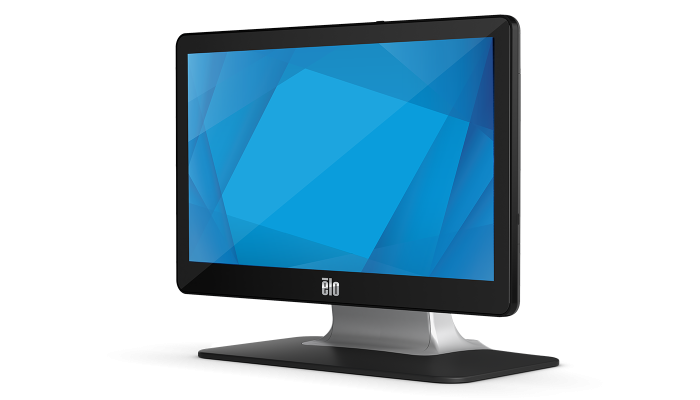

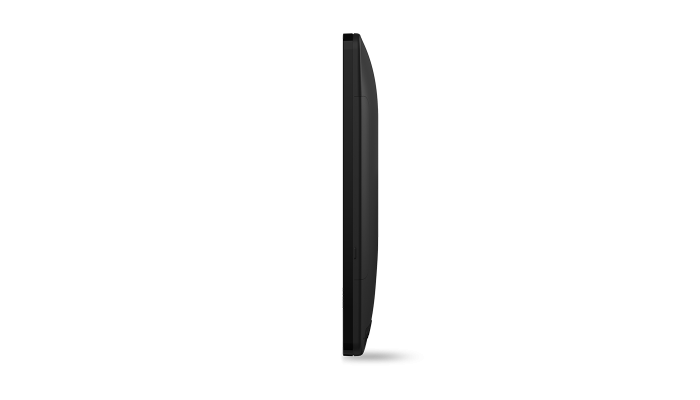

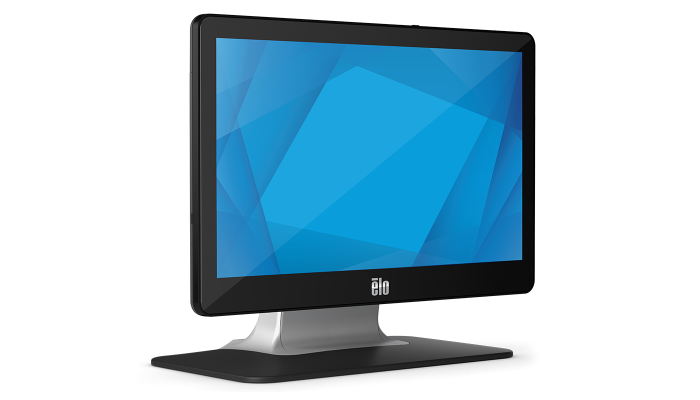

1302L 13″ Touchscreen Monitor

Black With Stand (Worldwide) - E683204
Black Without Stand (Worldwide) - E683595
White With Stand (Worldwide) - E683396
White Without Stand (Worldwide) - E683787

White or Black

PCAP (Projected Capacitive) - 10 Touch

13.3'' diagonal, Active matrix TFT LCD

16:9

11.57" x 6.51" / 293.76 mm x 165.24 mm

FHD: 1920 x 1080 / HD: 1366 x 768

640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
720 x 576 50Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 800 60Hz, 60Hz RB
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.7 million

Panel: 300 nits;
TouchPro PCAP: 270 nits

25 msec

800:1

USB

Anti-glare

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Energy Saver, Panel Saver, Mute, Volume, Audio Source

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

1 x Full-function USB-C (Requires PD [Power Delivery], USB 3.0 and Display Port)
1 x Audio jack (Line-in)
1 x VGA
1 x HDMI
1 x 12V D/C input
4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals

2 x 1W

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA
USB Type-C

Horizontal: 30 – 75K KHz
Vertical: 60Hz

Option 1 - USB Type-C Input voltage range: 5V±5% 3A / 9V±5% 3A / 15V±5% 1.8A / 20V±5% 1.35A

Option 2 - External DC Adapter 12V/36W in box

Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

Monitor input voltage range: 12VDC +/- 5%

Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz

Monitor + adapter
ON: 8.2W
SLEEP: 1.2W
OFF: 0.18W

8.32" x 12.84" x 0.99" / 211.30 mm x 326.06 mm x 25.05 mm

10.22" x 12.84" x 5.91" / 259.57 mm x 326.06 mm x 150 mm

Without Stand: 11.02" x 15.95" x 6.30" / 280 mm x 405 mm x 160 mm
With Stand: 13.11" x 16.34" x 8.66" / 333 mm x 415 mm x 220 mm

Without Stand: 2.69 lbs / 1.22 kg
With Stand: 5.11 lbs / 2.32 kg

Without Stand: 6.37 lbs / 2.89 kg
With Stand: 10.19 lbs / 4.62 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)

50,000 hours demonstrated

VESA 75mm x 75mm (4-hole)

3 years

Australia RCM
Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NOM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE, REACH
Russia EAC
India BIS

IPX1 for front side

IK07

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Touchmonitor
HDMI cable
Touch USB Cable (USB Type-A to Type-C)
Quick Install Guide
EEI Label
Power brick
NA Power cable
EU Power cable
3x Tie wraps
2x screws for cable cover(s)
