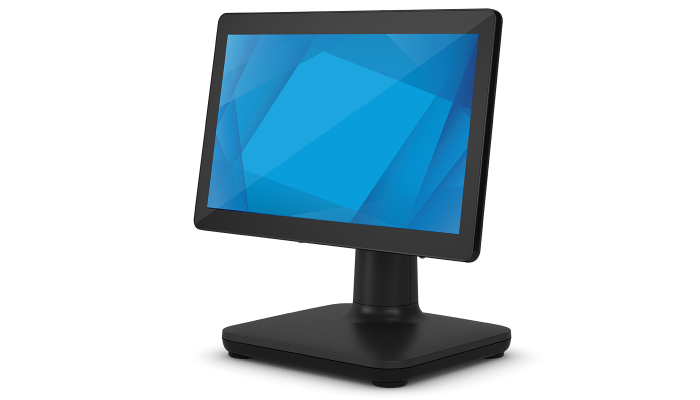

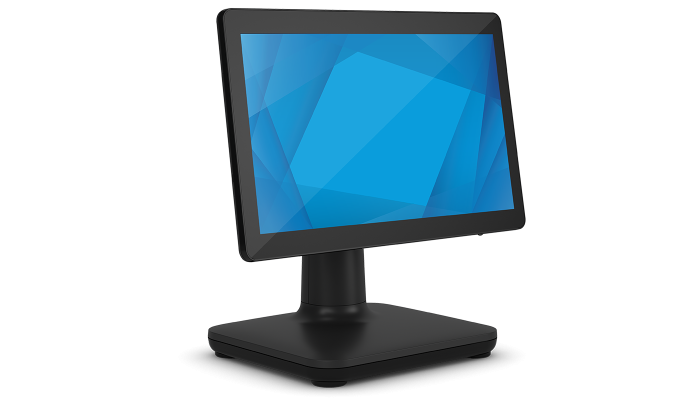

15-inch (16:9) E-Series 2

No OS - E135925
Win 10 - E136131

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Intel® Celeron® Processor J4125 (4M Cache, up to 2.7 GHz)

Intel UHD Graphics 600

AMI

4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)

128GB M.2 SATA SSD, 80 TBW

2.0

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344.2 mm x 193.5 mm

1366 x 768 @ 60Hz

262,144

LCD Panel: 220 nits
PCAP: 187 nits

10 msec

400:1

Horizontal: 45°/45° or 90° total / Vertical: 15°/35° or 50° total

3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)

1 x 24V on I/O
2 x 12V on I/O

1 x LAN RJ45 (Gigabit)

2 x RJ45

12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth 5.0

1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

1 x 3.5 mm headset jack

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit

Windows 10 - 36 Language groups

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

24W
Sleep: < 5W
Off: < 0.5W

15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm

18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm

10.4 lbs / 4.7 kg

15.2 lbs / 6.9 kg

0°C to 35°C / 32°F to 95°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)

Energy Star 7.1

UL/cUL, FCC, TUV, CE, CB, NOM, S-Mark, UKCA, China CCC

50,000 hours demonstrated

75mm VESA mount

3-year

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components.
Models with a stand for desktop application.
Models without a stand for 75mm VESA mounting.
Kensington lock

E-Series 2
North America Power Cord
EU Power Cord
Power Adapter – 180W
Cable Management Kit
Quick Installation Guide (QIG)
