15-inch (16:9) EloPOS System

HD Models:
Celeron, No OS, 4GB, 128GB SSD with Wall Mount I/O Hub - E441010
Celeron, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E440808
Celeron, No OS, 8GB RAM, 128GB SSD, with Wall Mount I/O Hub - E256639
i3, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E441385
i3, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E441193
i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E441781
i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E441575
i3, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E262258
i3, Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand -E397698
i3, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E263402
i5, No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E442161
i5, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E441968
i5, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E442550
i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E442365
i5, Win 10, 8GB RAM, 256GB SSD with Wall Mount I/O Hub - E892954
i5, Win 10, 8GB RAM, 512GB SSD with Wall Mount I/O Hub -E841559
i5, Win 10, 16GB RAM, 128GB SSD with I/O Hub Stand - E877703
i5, Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand - E892761

Full HD Models:
Celeron, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E935572
Celeron, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E935367
Celeron, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E841357
Celeron, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E395937
Celeron, Win 10, 8GB RAM, 128GB SSD, with I/O Hub Stand - E189245
i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E407627
i3, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub -E880567
i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E396134
i3, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E727037
i5, No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E936365
i5, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E936163
i5, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E936750
i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E936556
i5, Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand - E536624
i5, Win 10, 16GB RAM, 256GB SSD with I/O Hub Stand - E939305
i5, Win 10, 16GB RAM, 256GB SSD with Wall Mount I/O Hub - E939498
i5, Win 10, 32GB RAM, 1TB SSD with I/O Hub Stand - E580923

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel® Celeron® J4125 Processor (4M Cache, up to 2.7 GHz)
i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Celeron Models: N/A
i3 Models: Intel H310 Express
i5 Models: Intel Q370 Express

Celeron Models: Intel UHD Graphics 600
i3 & i5 Models: Intel UHD Graphics 630

AMI

Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB)
i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

128GB M.2 SATA SSD, 80 TBW
256GB M.2 SATA SSD, 160 TBW
Optional M.2 PCIe (NVMe) SSD for select models

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron Models: N/A
i3 Models: N/A
i5 Models: Active Management Technology (Intel® AMT 11.0) Support.

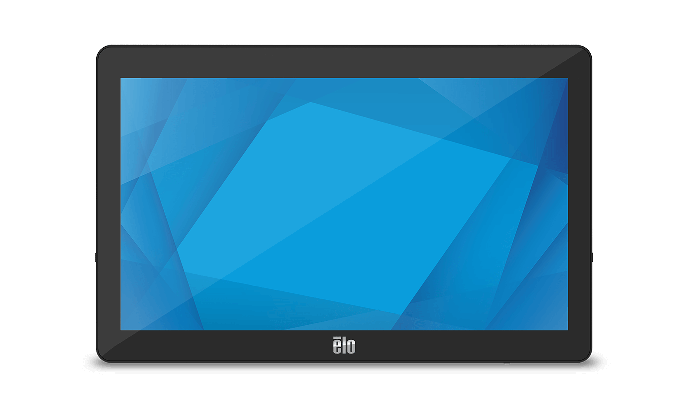

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344.2 mm x 193.5 mm

HD Models:
1366 x 768 @ 60Hz

Full HD Models:
1920 x 1080 @ 60Hz

262,000

HD Models:
LCD Panel: 220 nits
PCAP: 187 nits

Full HD Models:
LCD Panel: 300 nits
PCAP: 255 nits

HD Models:
10 msec

Full HD Models:
25 msec

HD Models: 400:1
FHD Models: 700:1

HD Models: Horizontal: 45°/45° or 90° total / Vertical: 15°/35° or 50° total

Full HD Models: Horizontal: 80°/80° or 160° total / Vertical: 80°/80° or 160° total

3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)

1 x 24V on I/O
2 x 12V on I/O

1 x LAN RJ45 (Gigabit)

2 x RJ45

12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth 5.0

1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

1 x 3.5 mm headset jack

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit

Windows 10 - 36 Language groups

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

HD Models:
Celeron: 24W
i3: 65W
i5: 74W

Full HD Models:
Celeron: 26W
i3: 67W
i5: 76W

With Stand: 15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm
Without Stand: 15.2" x 9.8" x 2.89" / 386.2 mm x 248.9 mm x 73.3 mm

With Stand: 18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm
Without Stand: 18.19" x 8.5" x 13.57" / 462 mm x 216 mm x 346 mm

With Stand: 10.8 lbs / 4.9 kg
Without Stand: 6.4 lbs / 2.9 kg

With Stand: 16.1 lbs / 7.3 kg
Without Stand: 10.8 lbs / 4.9 kg

0°C to 35°C / 32°F to 95°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)

Energy Star 7.1

UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC
Taiwan BSMI, Korea KCC for i3 and i5 FHD models only
Malaysia SIRIM, Singapore IMDA for i3 FHD models only

50,000 hours demonstrated

75mm VESA mount

3-year

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components.

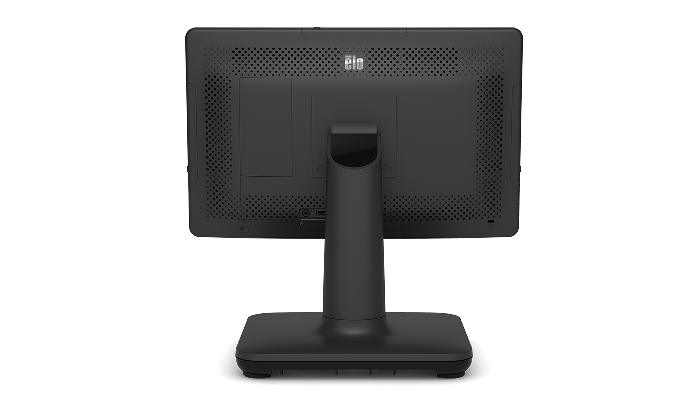

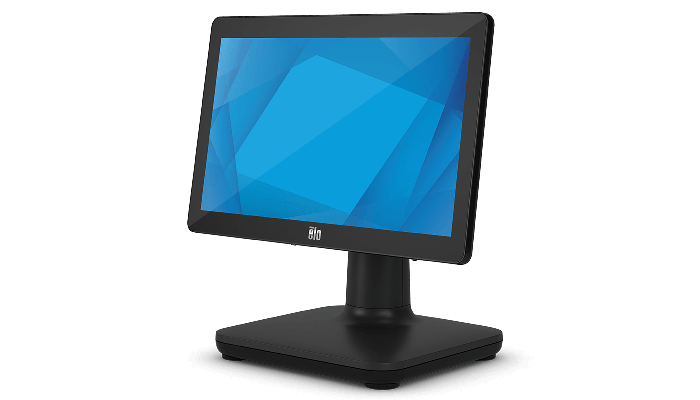

Models with a stand for desktop application.

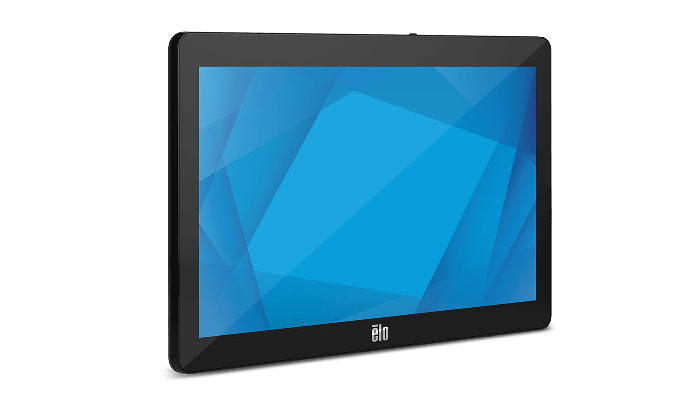

Models without a stand for 75mm VESA mounting.
Kensington lock

EloPOS System
North America Power Cord
EU Power Cord
Power Adapter – 180W
Cable RJ-45 to DB-9
Cable cover locking screw
Quick Installation Guide (QIG)
