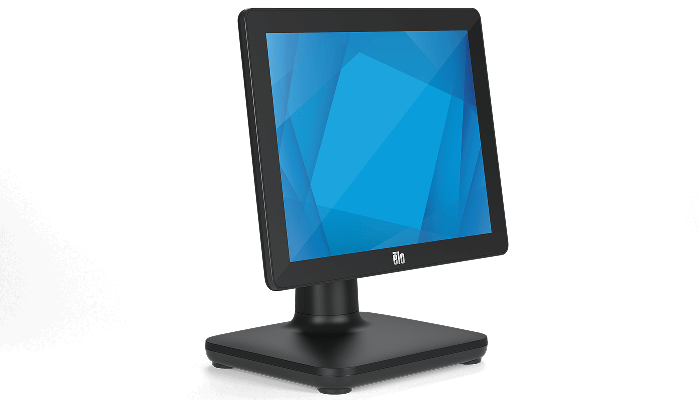

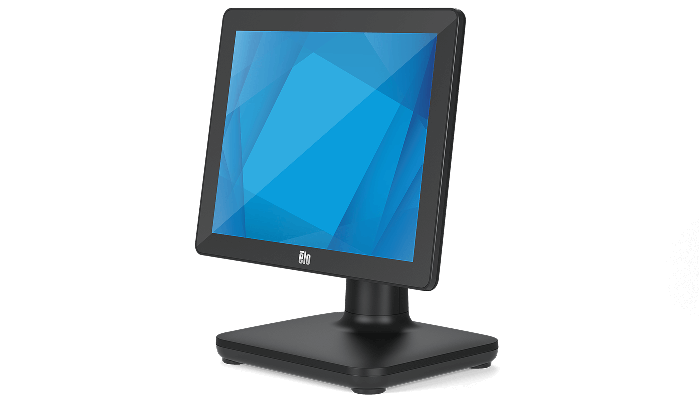

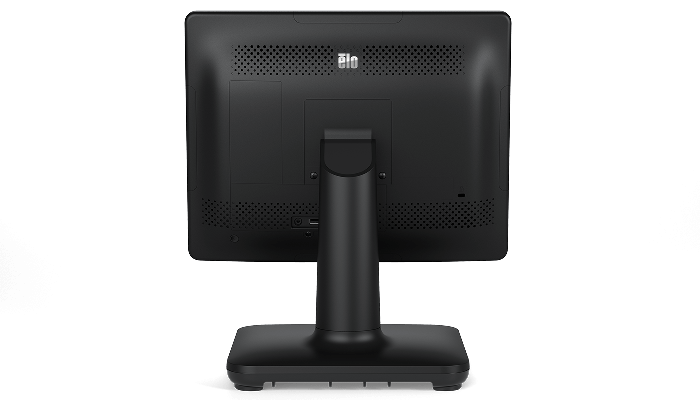

15-inch (4:3) EloPOS System

Celeron, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E590979
Celeron, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E494164
Celeron, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E587032
i3, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E931706
i3, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E931896
i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E590570
i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E494361
i3, Win 10, 8GB RAM, 128GB SSD, with Wall Mount I/O Hub - E432087
i5, No OS, 8GB RAM, 256GB SSD with Wall Mount I/O Hub - E590763

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel® Celeron® J4125 Processor (4M Cache, up to 2.7 GHz)
i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Celeron Models: N/A
i3 Models: Intel H310 Express
i5 Models: Intel Q370 Express

Celeron Models: Intel UHD Graphics 600
i3 & i5 Models: Intel UHD Graphics 630

AMI

Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB)
i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

128GB M.2 SATA SSD, 80 TBW
256GB M.2 SATA SSD, 160 TBW
Optional M.2 PCIe (NVMe) SSD for select models

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron Models: N/A
i3 Models: N/A
i5 Models: Active Management Technology (Intel® AMT 11.0) Support.

15'' diagonal, Active matrix TFT LCD (LED)

4:3

11.97" x 8.98" / 304.1 mm x 228.1 mm

1024 x 768 @ 60Hz

262,000

LCD Panel: 400 nits
PCAP: 340 nits

23 msec

800:1

Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)

1 x 24V on I/O
2 x 12V on I/O

1 x LAN RJ45 (Gigabit)

2 x RJ45

12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth 5.0

1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

1 x 3.5 mm headset jack

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit

Windows 10 - 36 Language groups

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

Celeron: 30W
i3: 63W
i5: 78W

With Stand: 14.16" x 15.37" x 8.71" / 359.7 mm x 390.4 mm x 221.3 mm
Without Stand: 14.16" x 11.17" x 3.07" / 359.7 mm x 283.7 mm x 78.1 mm

With Stand: 17.91" x 14.65" x 20.04" / 455 mm x 372 mm x 509 mm
Without Stand: 18.19" x 8.50" x 14.80" / 462 mm x 216 mm x 376 mm

With Stand: 11.6 lbs / 5.3 kg
Without Stand: 7.61 lbs / 3.45 kg

With Stand: 18.1 lbs / 8.2 kg
Without Stand: 11.02 lbs / 5 kg

0°C to 35°C / 32°F to 95°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)

Energy Star 7.1

UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC

50,000 hours demonstrated

75mm VESA mount

3-year

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components.
Models with a stand for desktop application.
Models without a stand for 75mm VESA mounting.
Kensington lock

EloPOS System
North America Power Cord
EU Power Cord
Power Adapter – 180W
Cable RJ-45 to DB-9
Cable cover locking screw
Quick Installation Guide (QIG)
