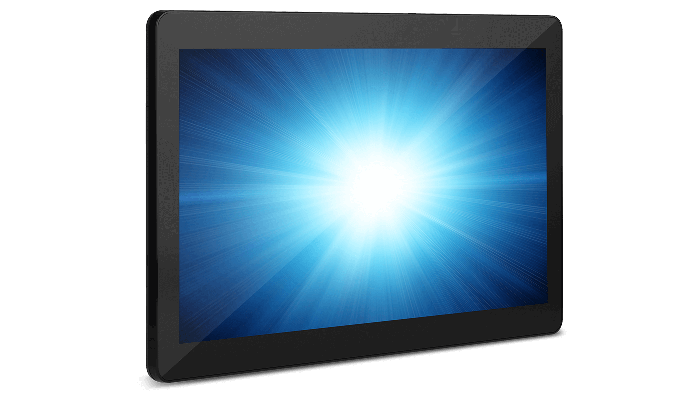

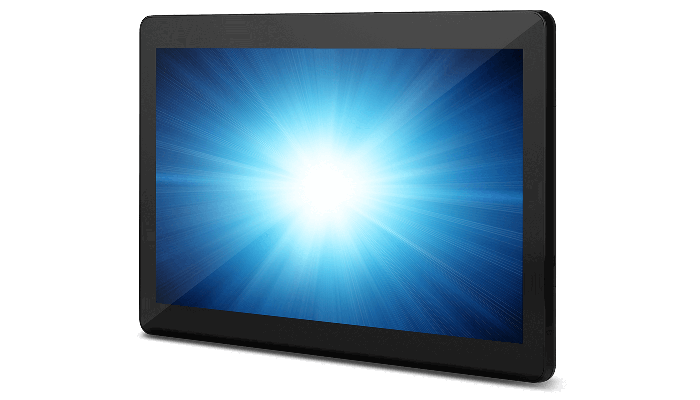

15-inch I-Series 2 with Intel

Celeron, Win10, 4GB - E691852
Celeron, ChromeOS Flex, 4GB - E291329
Celeron, No OS, 4GB - E692048
i3, Win10, 8GB - E850204
i3, ChromeOS Flex, 8GB - E291517
i3, No OS, 8GB - E850003
i5, Win10, 8GB - E692244
i5, ChromeOS Flex, 8GB - E291723
i5, No OS, 8GB - E692448
i5, Win 10, 8GB - E294312
i5, No OS, 8GB - E294494
i5, No OS, 16GB - E718055

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel® Celeron® J4125 Processor (4M Cache, up to 2.7 GHz)
i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Celeron: N/A
i3: Intel H310 Express
i5: Intel Q370 Express

Celeron: Intel UHD Graphics 600
i3 & i5: Intel UHD Graphics 630

AMI

Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

i3 & i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

128GB M.2 SATA SSD 72 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron: N/A
i3 & i5: Active Management Technology (Intel AMT 11.0) Support

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344.2 mm x 193.5 mm

1920 x 1080 @ 60Hz

266,144

LCD panel: 300 nits
TouchPro PCAP: 270 nits

25 msec

700:1

Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

1 x USB 3.0
4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals

1 x LAN RJ45 (Gigabit)

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth 5.0

1 x 3.5mm line out

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit
ChromeOS Flex

Windows 10 - 36 Language groups

External USB-C power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 100W

Celeron: 30 W
i3: 67 W
i5: 73 W
Sleep: < 5W
Off: < 0.5W

15.13" x 9.7" x 1.72" / 384.2 mm x 246.4 mm x 43.8 mm

18.19" x 8.5" x 13.57" / 462 mm x 216 mm x 346 mm

4.9 lbs / 2.2 kg

9.5 lbs / 4.3 kg

0°C to 35°C / 32°F to 95°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC,
Korea KCC for i5 models only
Taiwan BSMI for i5 models only

50,000 hours demonstrated

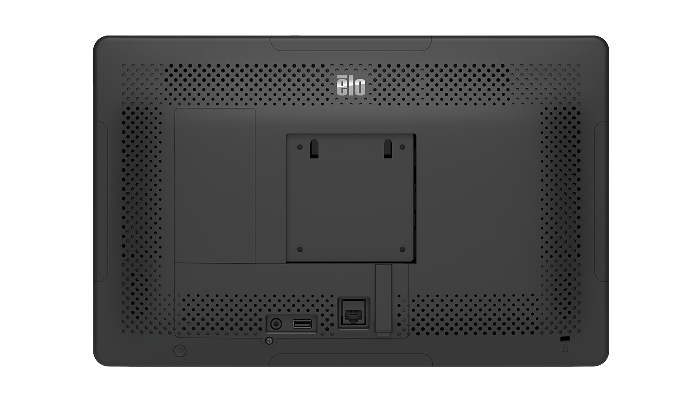

75mm VESA mount

3 years

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components
Kensington lock

I-Series 2.0 for Windows Touchcomputer
North America Power Cord
European Power Cord
Power Adapter - 100W
Cable cover locking screw
Quick Install Guide
