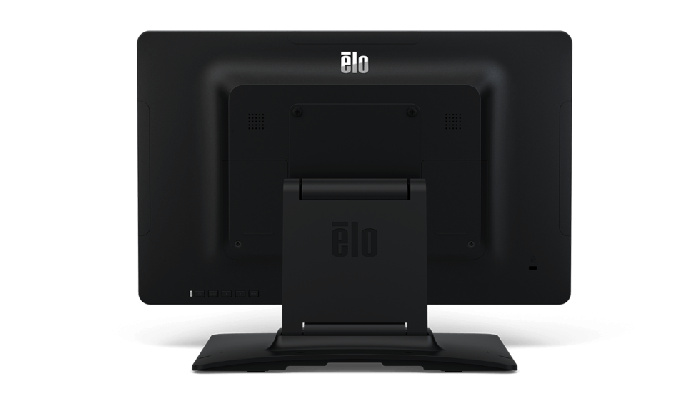

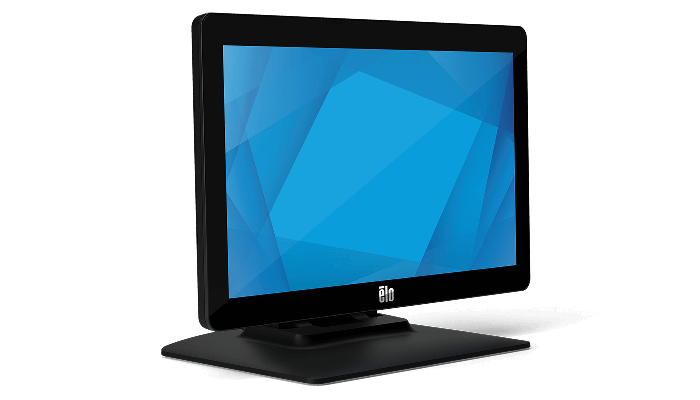

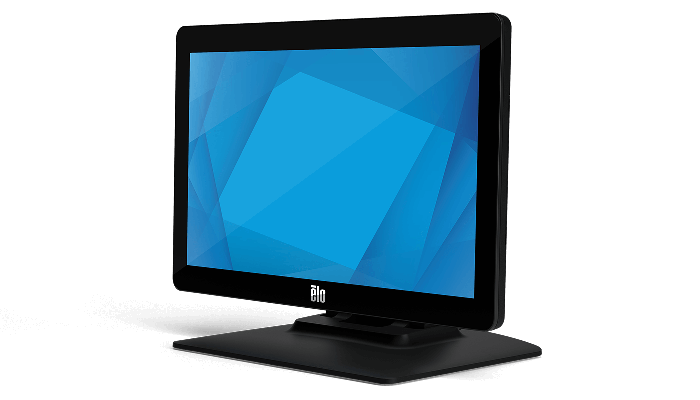

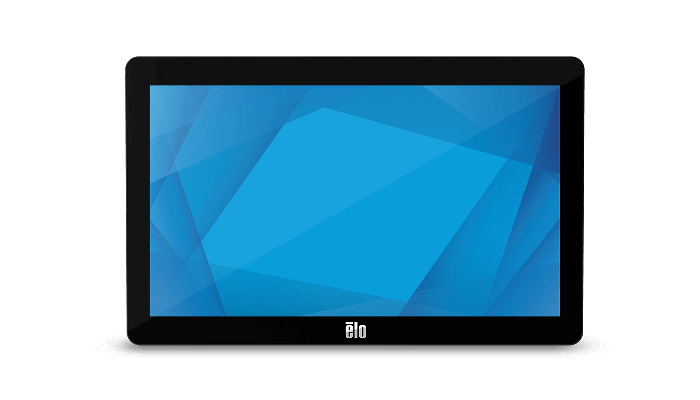

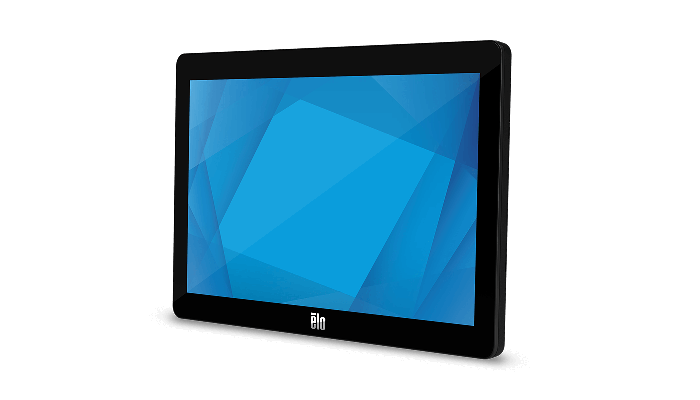

1502L 15.6″ Touchscreen Monitor

PCAP FHD USB-C With Stand (Worldwide) - E155645
PCAP FHD USB-C Without Stand (Worldwide) - E125496

Black

PCAP (Projected Capacitive) - 10 Touch

15.6'' diagonal, Active matrix TFT LCD (LED)

1.28" / 32.4 mm panel depth

16:9

13.55" x 7.62" / 344.16 mm x 193.5 mm

Active matrix TFT LCD

FHD: 1920 x 1080

640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 800 60Hz, 60Hz RB
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total

16.7 million

LCD Panel: 250 nits
PCAP + DC power: 225 nits
PCAP + USB-C 5V power: 180 nits

30 msec

700:1

USB

Anti-glare

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: OSD, Power

1 x USB Type-C
1 x Audio jack (Line-in)
1 x VGA (Micro-HDMI female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals

2 x 2W internal speakers

Analog VGA
HDMI
USB Type-C (support DP Alt mode)
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues

Horizontal: 31.5 - 82 KHz
Vertical: 50 - 75 Hz

Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
Option 2: External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz

ON: 9.5 W
SLEEP: 1.87 W
OFF: 0.2 W

9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm

11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm

With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm
Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm

With Stand: 6.72 lbs / 3.05 kg
Without Stand: 3.62 lbs / 1.64 kg

With Stand: 11.05 lbs / 5.01 kg
Without Stand: 7.47 lbs / 3.39 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

50,000 hours demonstrated

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

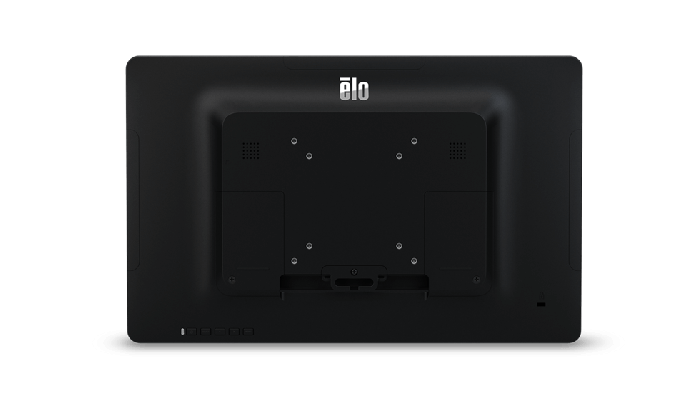

VESA 4-hole 75mm and 100mm mounting interface on rear of unit

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Canada cUL, IC
Europe CE
United Kingdom UKCA
Japan VCCI
United States UL, FCC
China CCC
Korea, KCC, e-standby
Australia RCM
Mexico NOM
Taiwan BSMI
International CB
RoHS, China RoHS, WEEE, REACH
India BIS
Russia EAC

IPX1 for front side

IK07

Touchmonitor
Quick Install Guide
HDMI cable
Power brick
2x cable clamps
2x tie wraps
EEI Label
USB Cable (USB Type-A to Type-C)
NA Power cable
EU Power cable
3x screws (M3x8mm) for cable clamps
2x screws (M3x10mm) for cable doors
4x screws (M4x10mm) for E125496 only
