1502LM 15.6″ Medical Grade Touchscreen Monitor

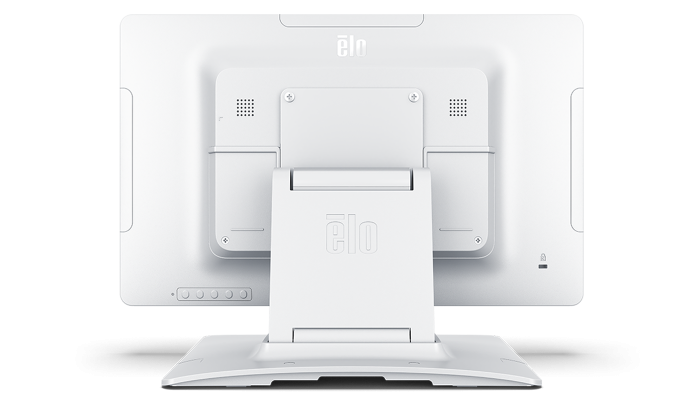

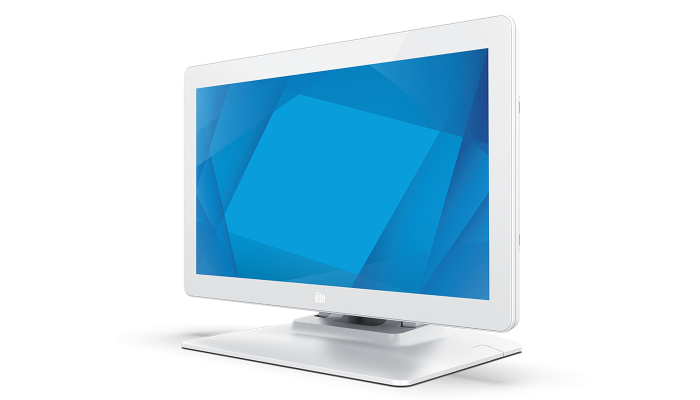

White With Stand - E542808

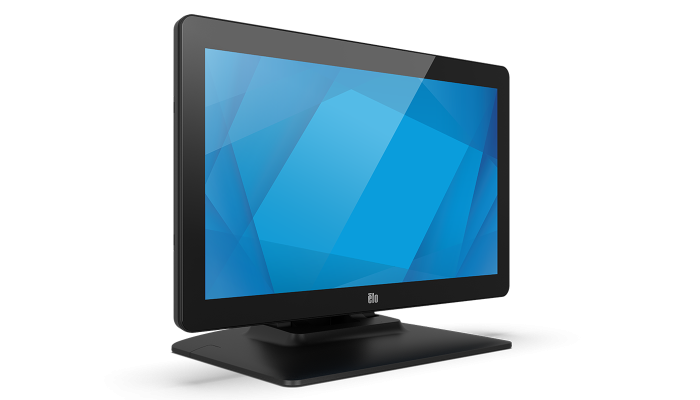

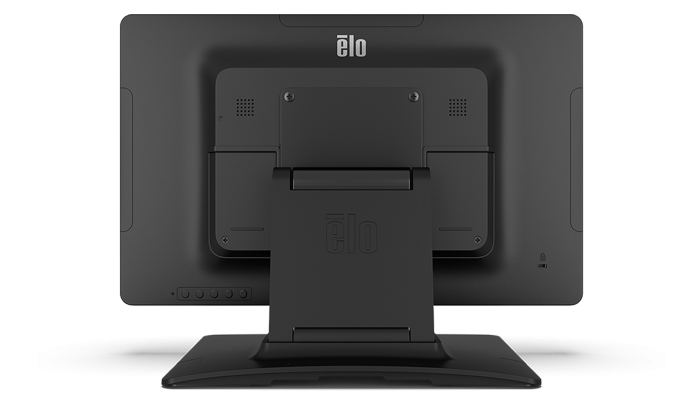

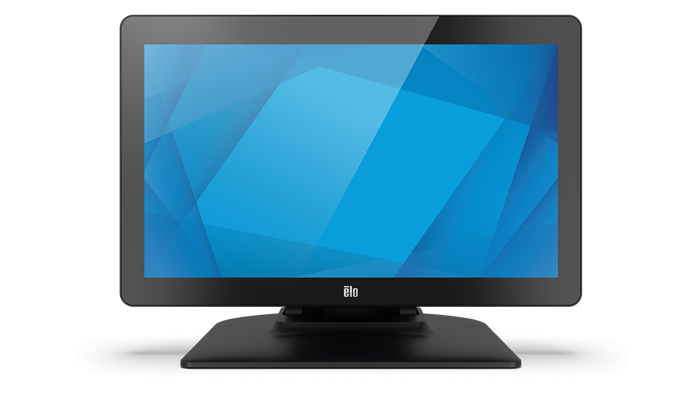

Black With Stand - E542617
White Without Stand - E967255
Black Without Stand - E967064

White or Black

PCAP (Projected Capacitive) - 10 Touch

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344.16 mm x 193.5 mm

1920 x 1080

640 x 480 @ 60Hz
640 x 400 @ 70Hz
720 x 400 @ 70Hz
800 x 600 @ 56, 60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 50, 60Hz
1280 x 800 @ 60Hz, 60HzRB
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1360 x 768 @ 60Hz
1366 x 768 @ 60Hz, 60Hz RB
1440 x 900 @ 60Hz, 60Hz RB
1680 x 1050 @ 60Hz, 60Hz RB
1920 x 1080 @ 50, 60Hz

Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total

16.7 million

LCD Panel: 250 nits
With PCAP: 225 nits

30 msec

700:1

USB

Anti-glare

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

USB Type-C
Audio jack (Line-in)
VGA (Micro-HDMI female connecter)
HDMI
12V D/C input
3 x Micro-USB ports (Top, Left, Right)

2 x 2W internal speakers

Analog VGA
HDMI
USB Type-C (support DP Alt mode)
(Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues)

Input Video Horizontal Sync frequency range: 31.5 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz

Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

Monitor input voltage range: 12VDC +/- 5%

Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

Adapter input voltage range: 100-240 VAC

Input frequency: 50-60 Hz

Monitor + adapter
ON: 9.5 W
SLEEP: 1.27 W
OFF: 0.2 W

9.62'' x 15.23'' x 1.28'' / 244.39 mm x 386.96 mm x 32.4 mm

11.21'' x 15.23'' x 7.84'' / 284.65 mm x 386.96 mm x 199.12 mm

With Stand: 8.03'' x 17.76'' x 13.54''/ 204 mm x 451 mm x 344 mm
Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm

With Stand: 6.79 lbs / 3.08 kg
Without Stand: 3.62 lbs / 1.64 kg

With Stand: 11.24 lbs / 5.1 kg
Without Stand: 7.47 lbs / 3.39 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

50,000 hours demonstrated

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

VESA 4-hole 75mm and 100mm mounting interface on rear of unit

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Taiwan BSMI
Korea, KCC, e-standby
United States UL, FCC
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico NOM
India BIS
RoHS, China RoHS, WEEE, REACH

UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1

IP22 entire enclosure

IK07

Touchmonitor
Quick Install Guide
HDMI cable
Power brick (E128201)
2x cable clamps
2x Tie wraps
EEI Label
USB Cable (USB Type-A to Type-C)
NA Power cable
EU Power cable
3x screws (M3x8mm) for cable clamps
2x screws (M3x10mm) for cable doors
4x screws (M4x10mm) for E967064 and E967255 only
