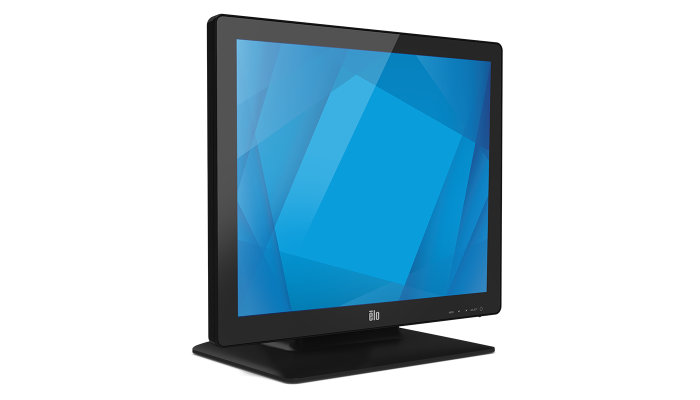

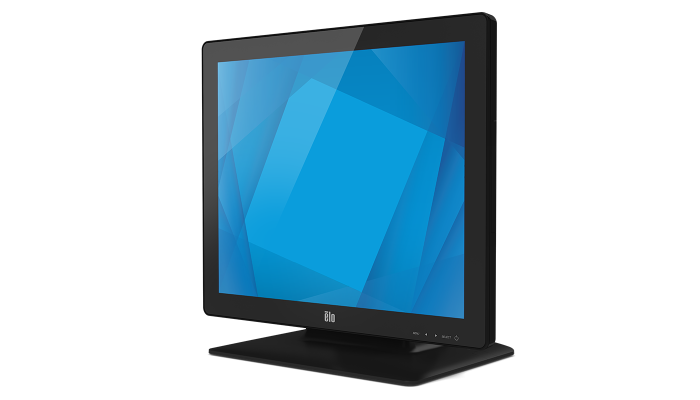

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
|
Part Number |
IntelliTouch Black (Worldwide) - E344758 |
|
Color |
Black |
|
Touch Technology & Capacity |
5-Wire Resistive (AccuTouch®) - Single-Touch |
|
Diagonal Size |
15'' diagonal, Active matrix TFT LCD (LED) |
|
Aspect Ratio |
4:3 |
|
Active Area |
11.97" x 8.98" / 304.13 mm x 228.10 mm |
|
Resolution |
1024 x 768 @ 60Hz, 75Hz |
|
Other Supported Resolutions |
640 x 480 60Hz, 75Hz |
|
Viewing Angle |
Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total |
|
Number of Colors |
16.2 million |
|
Brightness (typical) |
LCD panel: 300 nits |
|
Response Time-total (typical) |
23 msec |
|
Contrast Ratio |
800:1 |
|
Touch Interface |
Serial (RS232) and USB |
|
On-Screen Display (OSD) |
Accessible through switches along the bottom. |
|
I/O Ports |
VGA |
|
Video |
Analog VGA on Female DB-15 connector |
|
Power |
Monitor AC input power connector: IEC 60320 C6 |
|
Power Consumption (Typical) |
Monitor Only |
|
Monitor Dimensions (without Stand) |
Bezel: 14.1" x 1.97" x 12.5" / 358 mm x 50 mm x 319 |
|
Monitor Dimensions (with Stand) |
14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm |
|
Shipping Box Dimensions |
19.2" x 9.1" x 19.1" / 487 mm x 231 mm x 485 mm |
|
Weight (Unpackaged) |
9.48 lbs / 4.3 kg |
|
Weight (Packaged) |
16.09 lbs / 7.3 kg |
|
Operating Temperature |
0°C to 40°C / 32°F to 104°F |
|
Storage Temperature |
20°C to 60°C / -4°F to 140°F |
|
Humidity |
Operating: 20% to 80% |
|
MTBF |
50,000 hours demonstrated |
|
Mounting Options |
VESA 4-hole 75mm mounting interface on rear of unit |
|
Warranty |
3 years |
|
Extended Warranty Option |
4 year warranty coverage - Elo P/N: E898247 |
|
Regulatory approvals and declarations |
Argentina S-mark |
|
What's in the Box |
Touch monitor |
Download PDF
