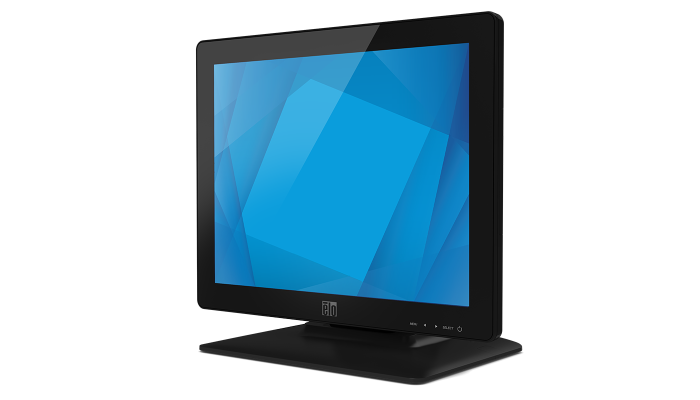

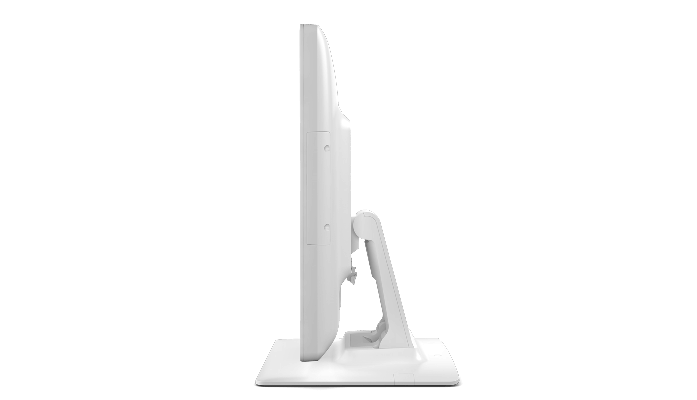

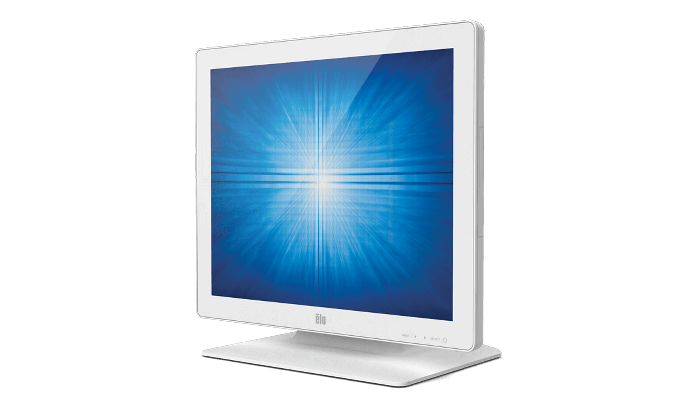

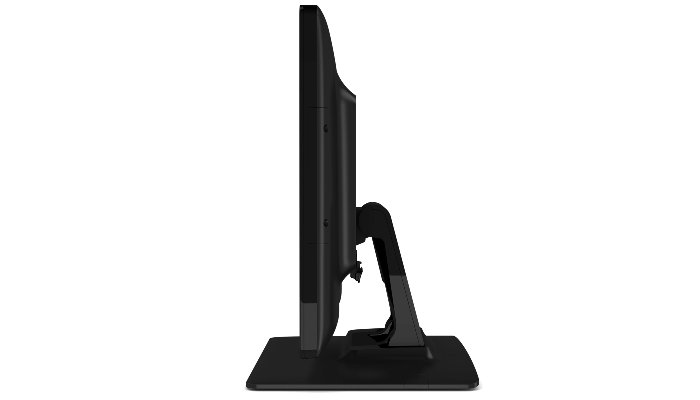

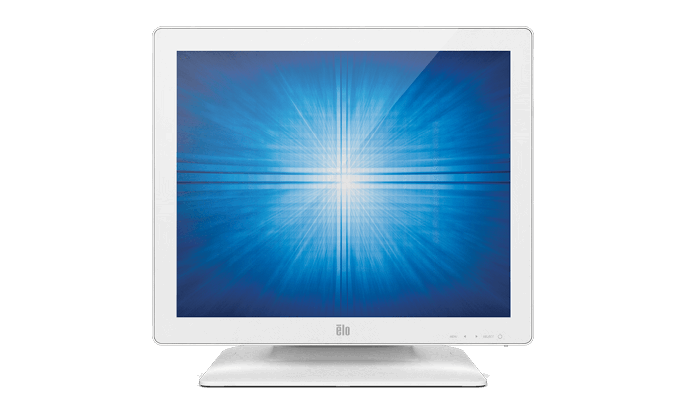

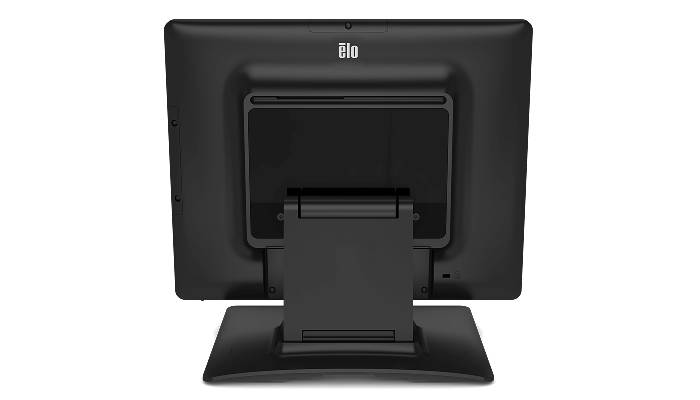

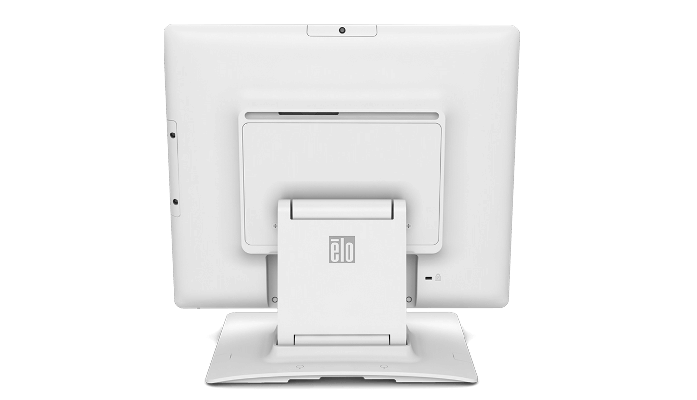

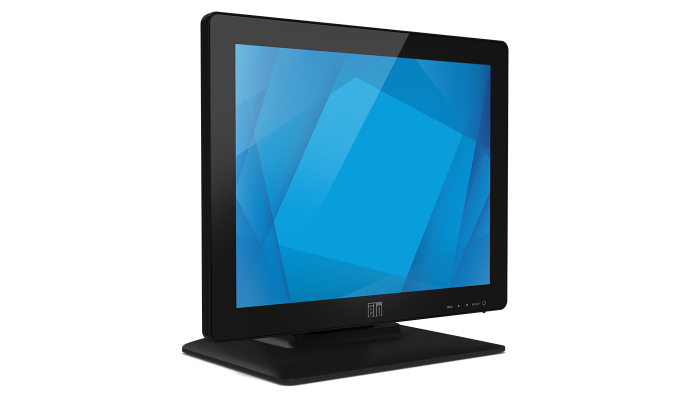

1523L 15" Touchscreen Monitor - Atar El Technologies

Technical Specifications

Part Number	PCAP White (Worldwide) - E336518 PCAP Black (Worldwide) - E738607 IntelliTouch ZB Dual Touch Black (Worldwide) - E394454
Color	White or Black
Touch Technology & Capacity	SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch PCAP (Projected Capacitive) - 10 Touch
Diagonal Size	15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio	4:3
Active Area	11.97" x 8.98" / 304.13 mm x 228.1 mm
Resolution	1024 x 768 @ 60Hz
Other Supported Resolutions	1024 x 768 at 60, 65, 70 or 75 Hz 800 x 600 at 56, 60,75 Hz 720 x 400 at 70 Hz 640 x 480 at 60,75 Hz
Viewing Angle	Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colors	16.2 million
Brightness (typical)	LCD panel: 300 nits IntelliTouch ZB: 270 nits PCAP: 270 nits
Response Time-total (typical)	23 msec
Contrast Ratio	800:1
Touch Interface	USB
On-Screen Display (OSD)	Accessible through switches along the bottom: Controls (side): Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
USB Ports	2 peripheral ports (USB Interface)
Speakers	Two 2W internal speakers
Video	Analog VGA on Female DB-15 connector Digital DVI on Female DVI-D, Dual-Link connector Digital HDMI type A Receptacle Input Video Horizontal Sync frequency range: 31.5 – 80KHz Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
Power	Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter) Monitor input power signal specifications: 12VDC +/- 5% Adapter input connector: IEC 60320 C14 Adapter input voltage range: 100-240VAC, 50/60Hz
Power Consumption (Typical)	Monitor + AC/DC adapter ON: 10.5W SLEEP: 1.3W OFF: 0.2W
Monitor Dimensions (with Stand)	14.1" x 7.84" x 12.53" / 358.1mm x 199.1mm x 318.5mm
Shipping Box Dimensions	17.48" x 14.88" x 8.31" / 444 mm x 378 mm x 211 mm
Weight (Unpackaged)	9.26 lbs / 4.2 kg
Weight (Packaged)	15.43 lb / 7.0 kg
Operating Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-20°C to 60°C / -4°F to 140°F
Humidity	Operating: 20% to 80% Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
Sealabilty	Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF	50,000 hours demonstrated
Stand Options	Tilt, Remove
Mounting Options	VESA 4-hole 75mm mounting interface on rear of unit 3-hole threaded mounting on bottom of stand See dimensional drawings for details
Other Features	2 stage DPMS VESA DDC Plug and Play Security lock receptacle
Warranty	3 years
Extended Warranty Option	4 year warranty coverage - Elo P/N: E898247 5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations	Australia RCM Canada cUL, IC China CCC Europe CE United Kingdom UKCA Japan VCCI Korea KCC Mexico NOM Taiwan BSMI Mark United States UL, FCC International CB RoHS, China RoHS, WEEE
What's in the Box	1523L Touchmonitor Quick Install Guide 50W Power Brick, power cable IEC 60320-C13 to NA/EU plug DVI-D cable VGA cable (DB-15 male to DB-15 male) USB cable (Type A plug to Type B plug) Audio cable Stand base assembly Filler Plate HDMI cable EEI Label
