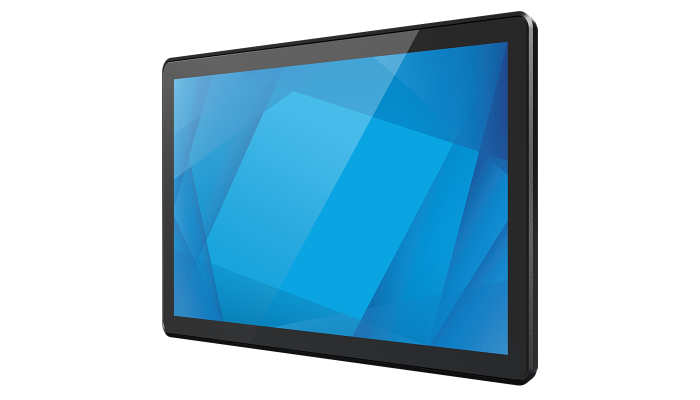

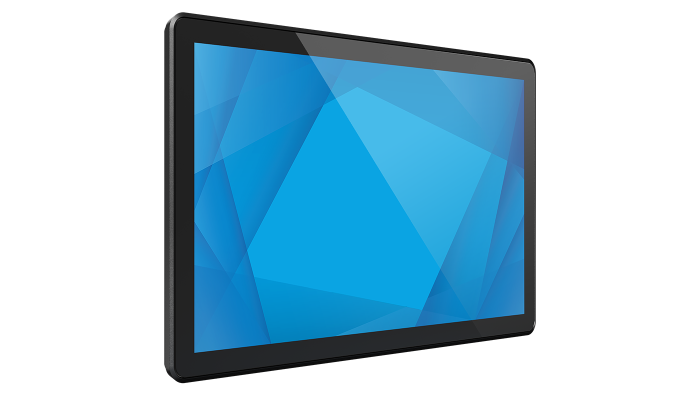

1564L 15-inch Open Frame Touch Display

TouchPro PCAP - E971256

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.

USB 2.0

15.6'' diagonal, Active matrix TFT LCD (LED)

On screen OSD with menu and power buttons on the back of the unit.

Supported Touch gestures include:
1. Call out the OSD menu.
2. lock/unlock the OSD button function.
3. lock/unlock the power button function.

Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

16:9

13.55" x 7.62" / 344.16 mm x 193.59 mm

1920 x 1080

640x480 60Hz
720x400 70Hz
800x500 60Hz
800x600 56, 60Hz
1024x768 60Hz
1280x800 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 50Hz, 60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD panel: 450 nits
TouchPro PCAP: 405 nits

25 msec

1000:1

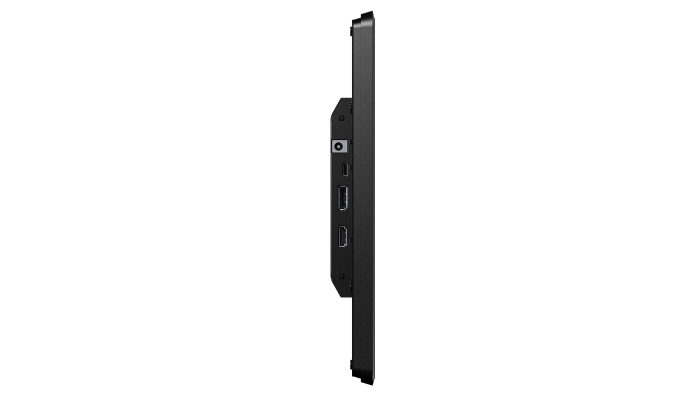

HDMI V1.4 Type A receptacle for HDMI input
DisplayPort V1.2 - Supports later versions of Display Port video input
USB Type-C
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues

Input Video Horizontal Sync frequency range: 30 – 80K KHz

Input Video Vertical Sync (frame rate) frequency range: 50-75Hz

Option1:
External DC - Optional power brick (sold separately)

Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input power signal specifications: 12V – 24V DC +/- 5%

Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

Option 2:
USB Type-C Input range:
5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A

24/7

ON (Default - 80% Brightness): 9.36W
ON (Typical - 100% Brightness): 12.95W
SLEEP (monitor + adapter): 0.45W
OFF (monitor + adapter): 0.25W

14.76" x 8.83" x 1.24" / 375.0 mm x 224.4 mm x 31.6 mm

17.72" x 11.89" x 5.55" / 450 mm x 302 mm x 141 mm

4.91 lbs / 2.23 kg

9.09 lbs / 4.12 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95%

IPX1 for front side

50,000 hours demonstrated

3 years

Australia RCM
Canada cUL, IC
China CCC
Europe CE, TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NoM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE

GLI 27 kV air / 8 kV contact ESD compliance
UL62368 ball-drop compliant
IK08 impact compliant
TUV Rheinland (Low Blue Light)
Power collection function via DDCCI

Energy Star 8.0

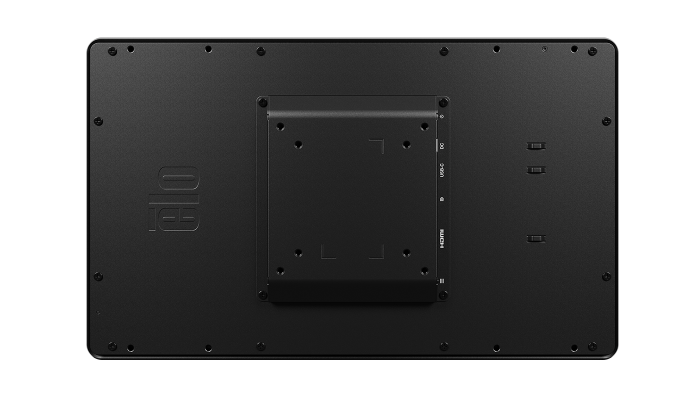

75 mm VESA mount
Mounting interface on all 4 sides
Flush mount with included brackets

See dimensional drawings for details

1564L
HDMI cable
Touch USB Cable (USB-A to USB-C)
Flush Mount Brackets w/Screws
Quick Install Guide
EEI Label
