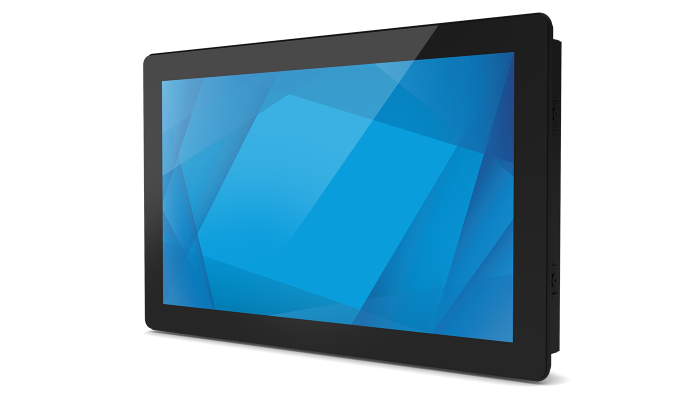

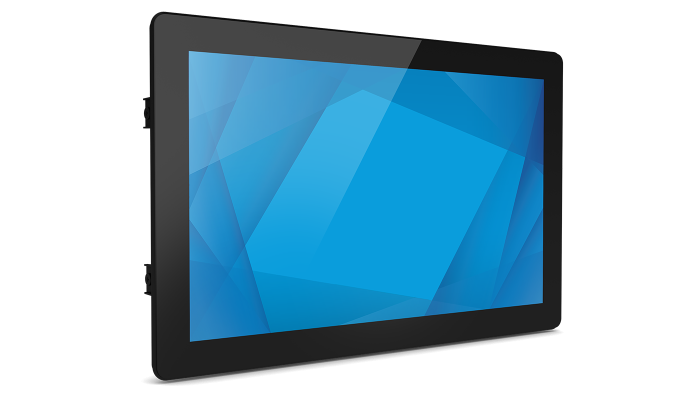

1594L 15.6″ Open Frame Touchscreen

TouchPro PCAP - E131375

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

USB 2.0

15.6'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

16:9

13.55" x 7.62" / 344.16 mm x 193.59 mm

1920 x 1080

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60, 75Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50 60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD panel: 350 nits
TouchPro PCAP: 315 nits

25 msec

800:1

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz

HDMI, VGA & Display Port

External DC - Optional power brick (sold separately)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

12VDC +/- 5%

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Monitor + Adapter
ON: 13.23 W
SLEEP: 0.48 W
OFF: 0.22W

15.5" x 9.52" x 1.71" / 394.7 mm x 242.0 mm x 43.4 mm

18.5" x 13.03" x 6.89" / 470 mm x 331 mm x 175 mm

6.7lbs / 3.02 Kg

10.2lbs / 4.62 Kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95%

50,000 hours demonstrated

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
India BIS
RoHS, China RoHS, WEEE

75 mm VESA mount

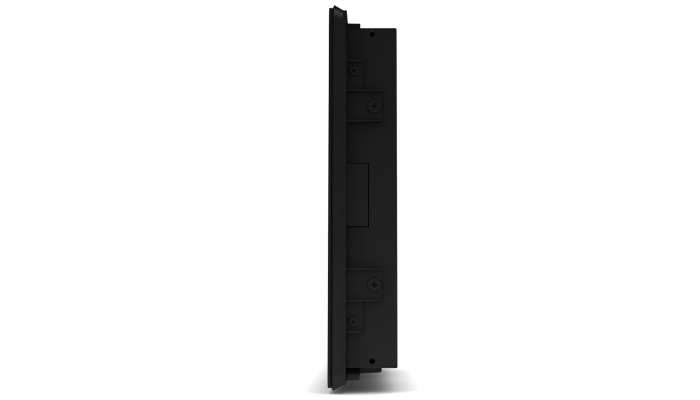

2-hole mounting interface on all 4 sides

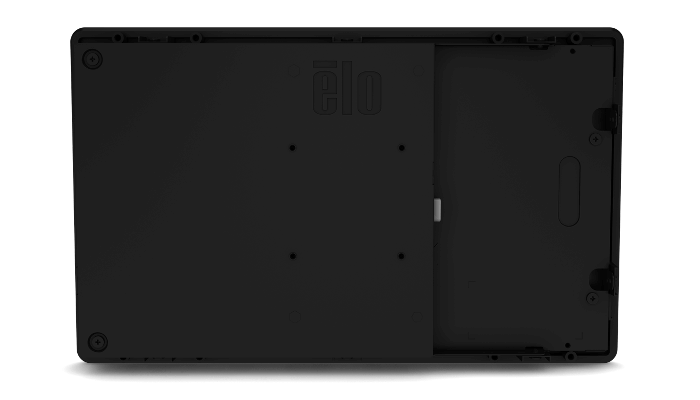

Rear mount
Flush mount with included brackets

HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
Flush Mount Brackets w/Screws
EEI Label
Japan Class-B TM info sheet
