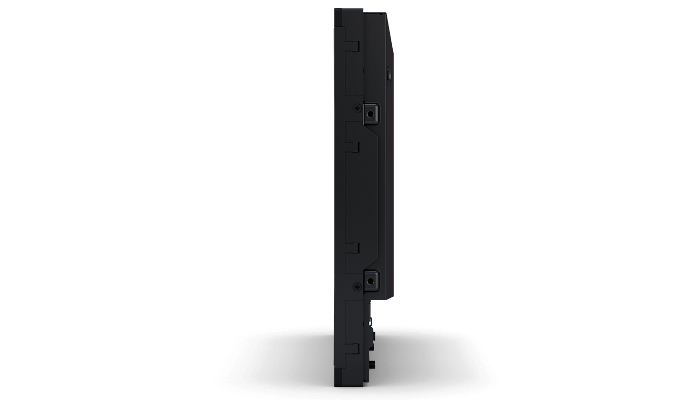

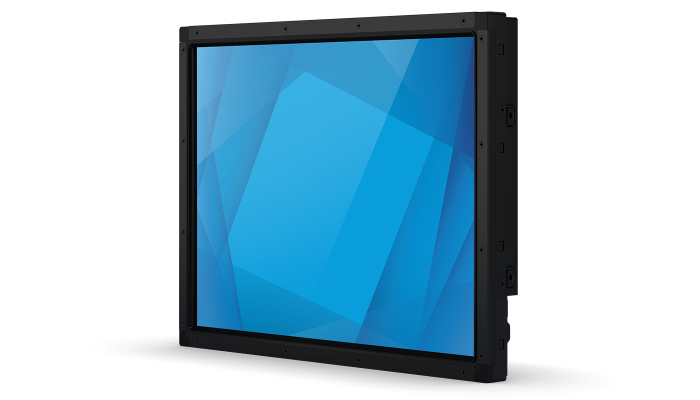

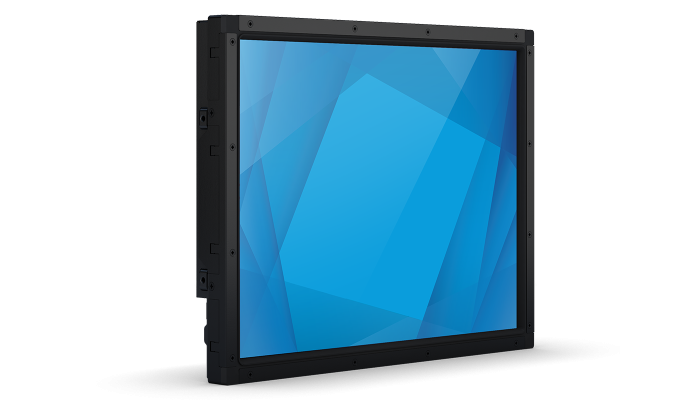

1598L 15″ Open Frame Touchscreen

AccuTouch (Worldwide) - E126407

Black

5-Wire Resistive (AccuTouch®) - Single-Touch

Dual serial/USB

15'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

4:3

11.97" x 8.98"/ 304.1mm x 228.1mm

1024 x 768

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.2 million

LCD panel: 500 nits
AccuTouch: 400 nits

35 msec

1500:1

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Horizontal: 30 - 60 KHz
Vertical: 50 - 75 Hz

HDMI, VGA & Display Port

IEC 60320 C14

100-240VAC, 50/60Hz

External DC - Optional power brick (sold separately)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

12VDC +/- 5%

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Monitor + Adapter at 230V/50Hz
ON: 14.1 W
SLEEP: 1.5 W
OFF: 0.5W

13.24" x 10.41" x 1.65" / 336.4mm x 264.4mm x 41.9mm

17.09" x 14.76" x 6.89" / 434mm x 375mm x 175mm

6.4 lbs / 2.9 Kg

10.36 lbs / 4.7 Kg

0°C to 50°C / 32°F to 122°F

-20°C to 70°C / -4°F to 158°F

Operating: 20% to 80%
Storage: 10% to 95%

Touchscreen sealed to bezel
Touchscreen sealed to LCD

50,000 hours demonstrated

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB; RoHS
China RoHS, WEEE

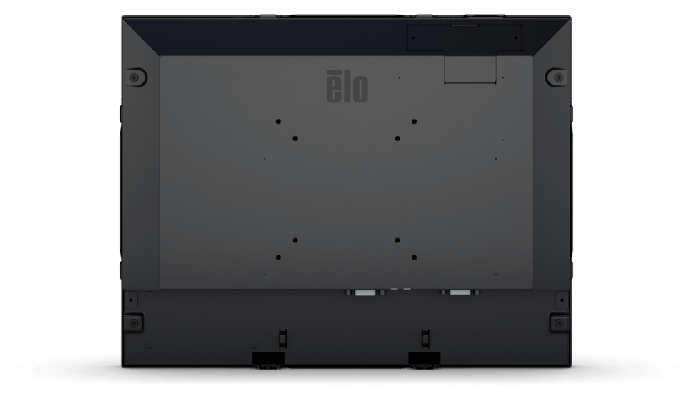

75 mm and 100 mm VESA mount
2-hole mounting interface on all 4 sides
Front mount with optional bezel kit
Rack mount with optional bezel kit
See dimensional drawings for details

HDMI cable
Touch USB Cable
VGA Cable
Remote OSD
“L” (Side Mount) Brackets w/Screws
Quick Install Guide
EEI Label
Japan Class-B TM info sheet
