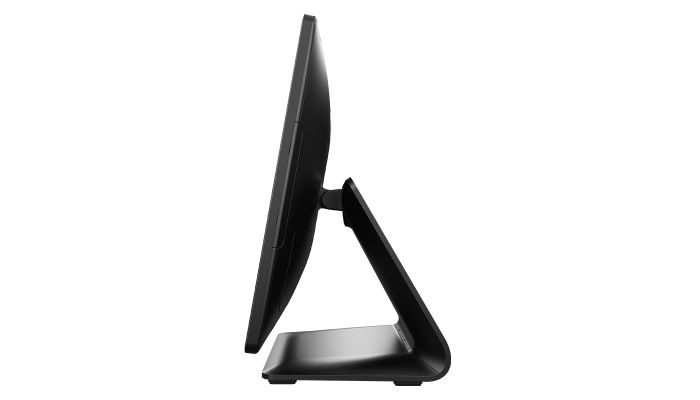

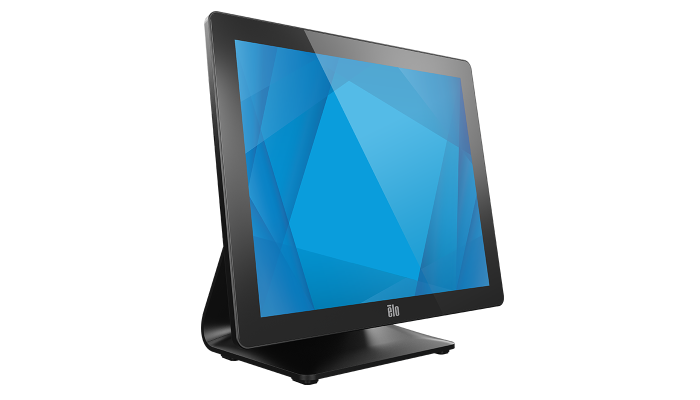

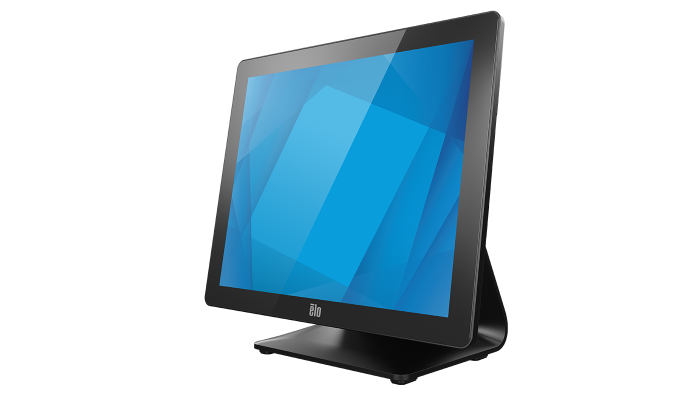

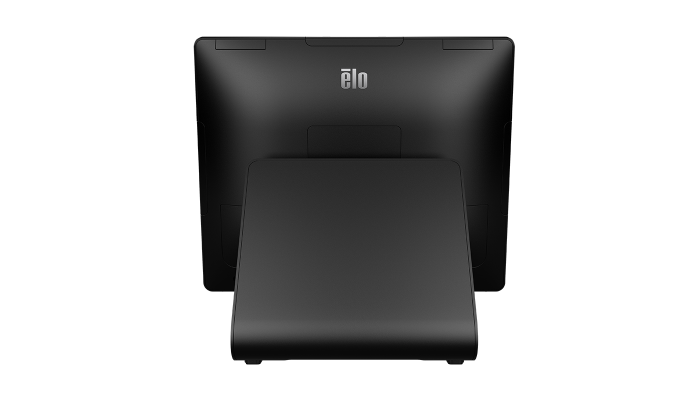

17-inch (5:4) I-Series 3 with Intel

Celeron, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708554
Celeron, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708361
i3, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708953
i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E708749
i5, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E709349
i5, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E709150
i7, Win10, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E709726
i7, No OS, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E709537

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz)
i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
i7: Intel Core i7-1265UL Processor (12M Smart Cache, up to 4.80 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support

Intel UHD Graphics
For i5 & i7 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.

AMI

Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

128GB M.2 PCIe (NVMe) SSD 80 TBW
256GB M.2 PCIe (NVMe) SSD 160 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron & i3: N/A
i5 & i7: Intel Active Management Technology

17'' diagonal, Active matrix TFT LCD (LED)

5:4

13.3" x 10.64" / 337.9 mm x 270.3 mm

1280 x 1024 @ 60Hz

16.7 million

LCD panel: 250 nits
TouchPro PCAP: 212.5 nits

25 msec

1000:1

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x 24V Powered USB Port
2x 12V Powered USB Ports
1x RJ50 Powered Serial Port
1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)

802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

Bluetooth 5.3

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit

Windows 10 - 36 Language groups

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

On Celeron: 33W
On i3: 47W
On i5: 50W
On i7: 54W
Sleep: < 5W
Off: < 0.5W

15.49" x 14.61" x 8.09" / 393.4 mm x 371.2 mm x 205.6 mm

20.8" x 21.2" x 12.4" / 529 mm x 539 mm x 315 mm

21.16 lbs / 9.6 kg

27.34 lbs / 12.4 kg

0°C to 35°C / 32°F to 95°F
Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

Energy Star 8.0 certified configurations available

Canada cUL, IC
United States UL, FCC
Germany TUV
Europe CE
Australia RCM
United Kingdom UKCA
International CB
Argentina S-Mark
Brazil ANATEL
Japan VCCI, MIC
China CCC, SRRC
Mexico NOM
RoHS CoC

50,000 hours demonstrated

3-year

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components
Kensington lock

I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
CFD mounting screw
