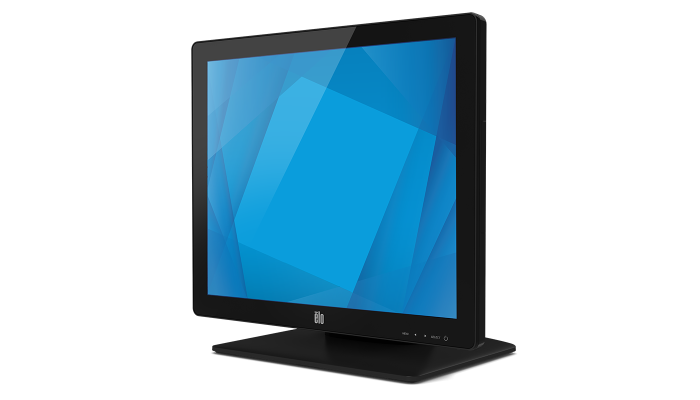

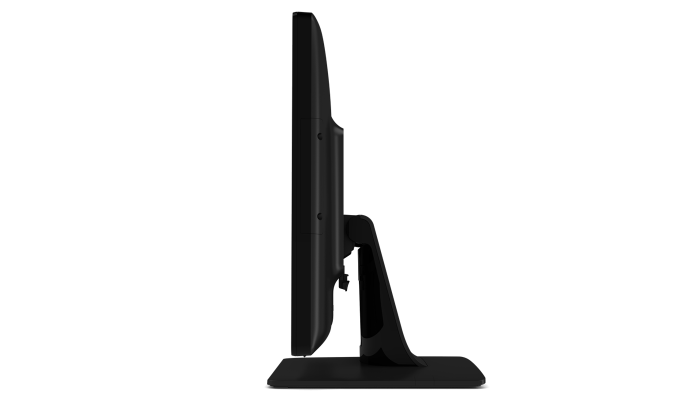

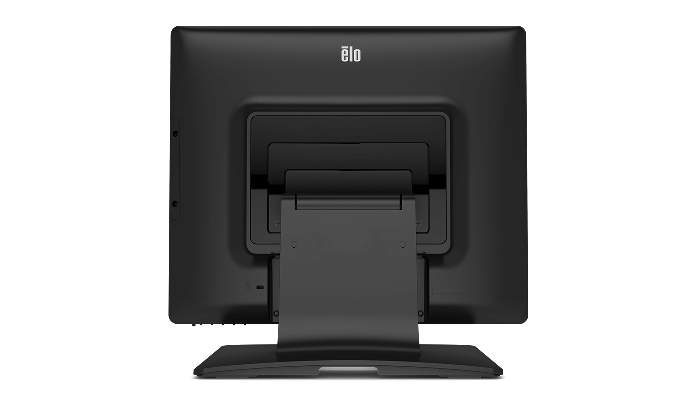

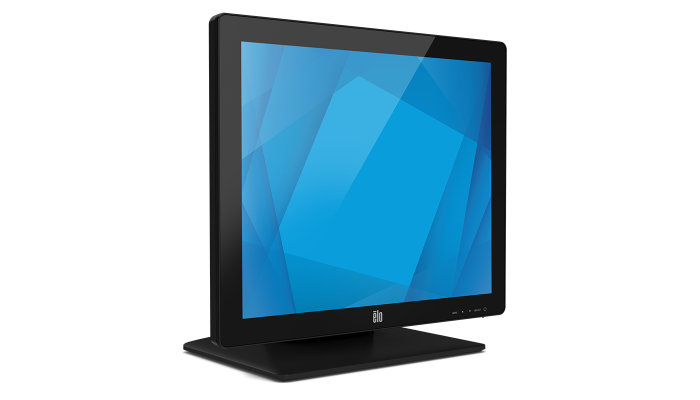

1717L 17" Touchscreen Monitor - Atar El Technologies

Technical Specifications

Part Number	IntelliTouch Black Anti-glare (Worldwide) - E077464 IntelliTouch ZB Black Anti-glare (Worldwide) - E017030 IntelliTouch ZB Black Clear (Worldwide) - E179069 AccuTouch Black Anti-glare (Worldwide) - E877820 AccuTouch ZB Black Anti-glare (Worldwide) - E649473
Color	Black
Touch Technology & Capacity	5-Wire Resistive (AccuTouch®) - Single-Touch SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size	17'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio	5:4
Active Area	13.3" x 10.64" / 337.92 mm x 270.34 mm
Resolution	1280 x 1024
Other Supported Resolutions	640 x 480 60Hz, 75Hz 720 x 400 70Hz 800 x 600 56Hz, 60Hz, 75Hz 1024 x 768 60Hz, 75Hz 1280 x 1024 60Hz, 75Hz
Viewing Angle	Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors	16.7 million
Brightness (typical)	LCD panel: 250 nits AccuTouch: 200 nits IntelliTouch: 225 nits
Response Time-total (typical)	20 msec
Contrast Ratio	1000:1
Touch Interface	Serial (RS232) and USB
On-Screen Display (OSD)	Accessible through switches along the bottom. Controls: Menu, Up, Down, Select, Power Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
I/O Ports	VGA HDMI DC jack AC jack USB Type B RS-232 (DB-9)
Video	Analog VGA on Female DB-15 connector Digital HDMI on Type A receptacle Input Video Horizontal Sync frequency range: 31.5 – 80KHz Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
Power	Monitor AC input power connector: IEC 60320 C6 Monitor AC input voltage specifications: 100-240VAC, 50/60Hz Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter) Monitor DC input voltage specifications: 12VDC +/- 5%
Power Consumption (Typical)	Monitor Only ON: 11.5W (100% brightness) ON: 10W (default 80% brightness) SLEEP: 1.40W OFF: 0.3W
Monitor Dimensions (without Stand)	Bezel: 15.4" x 2.15" x 14.2" / 392.0 mm x 54.5 mm x 361.6 mm Zero Bezel: 15.4" x 1.91" x 14.2" / 392.0 mm x 48.6 mm x 361.6 mm
Monitor Dimensions (with Stand)	15.43" x 8.48" x 14.24" / 391.9 mm x 215.4 mm x 361.6 mm
Shipping Box Dimensions	20.12" x 9.17" x 20.08" / 511 mm x 233 mm x 510 mm
Weight (Unpackaged)	11.9 lbs / 5.4 kg
Weight (Packaged)	18.3 lbs / 8.3 kg
Operating Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	20°C to 60°C / -4°F to 140°F
Humidity	Operating: 20% to 80% Storage: 10% to 95%
MTBF	50,000 hours demonstrated
Mounting Options	VESA 4-hole 75mm mounting interface on rear of unit 3-hole threaded mounting on bottom of stand
Warranty	3 years
Extended Warranty Option	4 year warranty coverage - Elo P/N: E898247 5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations	Argentina S-mark Australia RCM Canada cUL, IC China CCC Europe CE United Kingdom UKCA Japan VCCI Korea KCC, e-Standby Mexico NOM Taiwan BSMI Mark United States UL, FCC International CB RoHS, China RoHS, WEEE
What's in the Box	Touch monitor Quick Install Guide VGA Cable (DB-15 male to DB-15 male) Touch USB Cable (USB Type A plug to USB Type B plug) Power cable, IEC 60320-C5 to NA/EU plug Stand Base assembly Filler Plate HDMI cable
