22-inch I-Series 3 with Intel

Celeron, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E707003
Celeron, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E706811
Celeron, Win10, 8GB RAM, 128GB SSD, Clear, Without Stand - E606903
Celeron, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E606708
i3, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E707378
i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E707193
i3, Win10, 8GB RAM, 128GB SSD, Clear, Without Stand - E607299
i3, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E607093
i5, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E707769
i5, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E707579
i5, Win10, 8GB RAM, 256GB SSD, Anti-glare, With Stand* - E155309
i5, No OS, 8GB RAM, 256GB SSD, Anti-glare, With Stand* - E155493
i5, Win10, 16GB RAM, 256GB SSD, Anti-glare, With Stand* - E457278
i5, No OS, 16GB RAM, 256GB SSD, Anti-glare, With Stand* - E457084
i5, Win10, 8GB RAM, 128GB SSD, Clear, Without Stand - E607709
i5, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E607503
i7, Win10, 16GB RAM, 256GB SSD, Anti-glare, With Stand* - E708162
i7, No OS, 16GB RAM, 256GB SSD, Anti-glare, With Stand* - E707974

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz)
i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
i7: Intel Core i7-1265UL Processor (12M Smart Cache, up to 4.80 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support

Intel UHD Graphics
For i5 & i7 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.

AMI

Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

128GB M.2 PCIe (NVMe) SSD 80 TBW
256GB M.2 PCIe (NVMe) SSD 160 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron & i3: N/A
i5 & i7: Intel Active Management Technology

21.5'' diagonal, Active matrix TFT LCD (LED)

16:9

18.74" x 10.54" / 476.1 mm x 267.8 mm

1920 x 1080 @ 60Hz

16.7 million

LCD panel: 250 nits
TouchPro PCAP: 212.5 nits

14 msec

1000:1

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

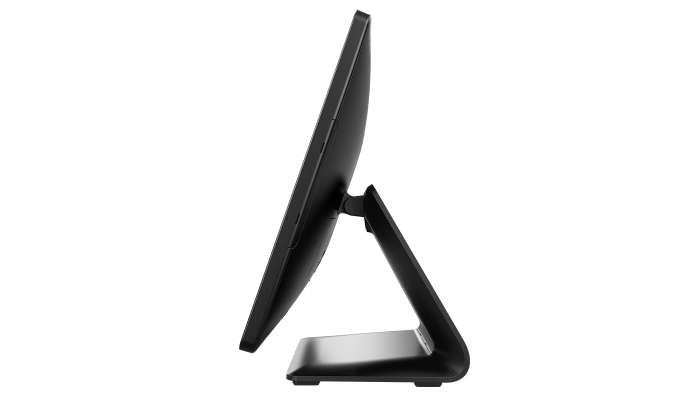

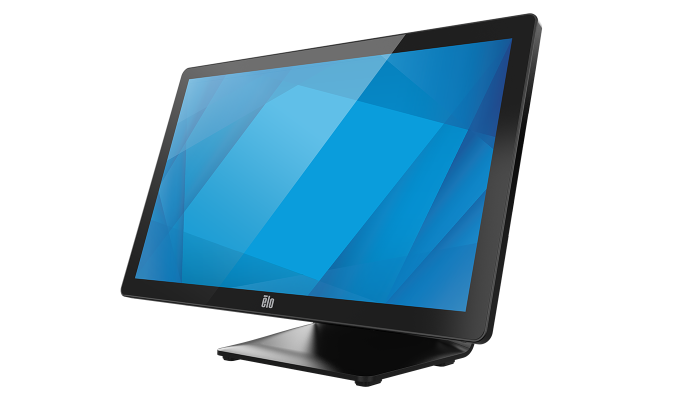

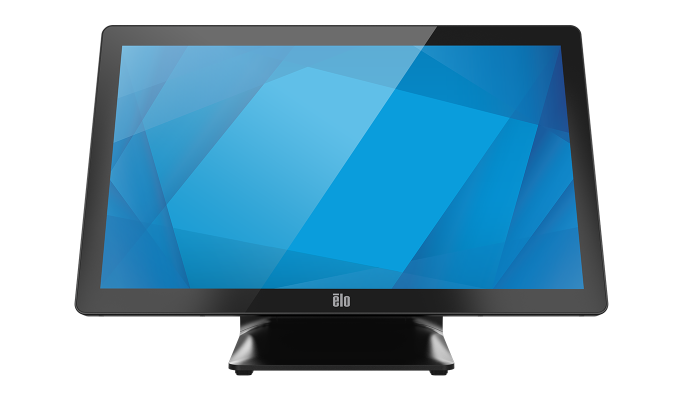

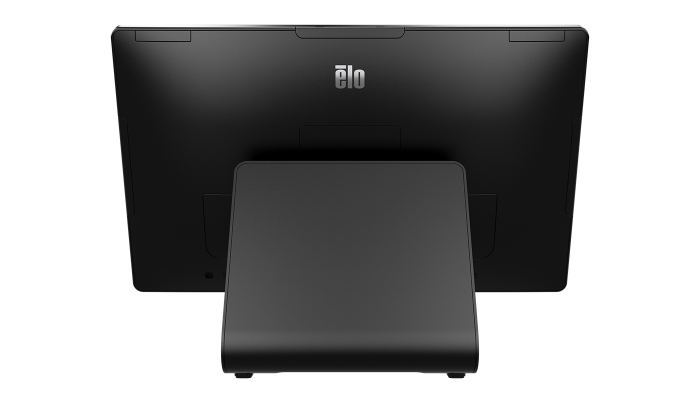

With stand:
1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x 24V Powered USB Port
2x 12V Powered USB Ports
1x RJ50 Powered Serial Port
1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)

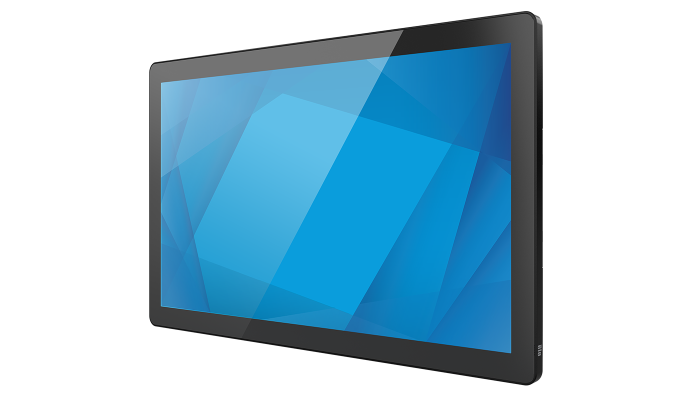

Without stand:
1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x RJ50 Powered Serial Port
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)

802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone

Bluetooth 5.3

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit

Windows 10 - 36 Language groups

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

On Celeron: 39W
On i3: 51W
On i5: 57W
On i7: 56W
Sleep: < 5W
Off: < 0.5W

With stand: 20.70" x 14.52" x 8.06" / 525.8 mm x 368.7 mm x 204.6 mm
Without stand: 20.70" x 12.64" x 1.56" / 525.8 mm x 321.1 mm x 39.6 mm

With stand: 25.4" x 20.2" x 12.5" / 645 mm x 513 mm x 318 mm
Without stand: 25.3" x 8.4" x 17.3" / 643 mm x 214 mm x 439 mm

With stand: 22.3 lbs / 10.1 kg
Without stand: 13.5 lbs / 6.1 kg

With stand: 26.46 lbs / 12 kg
Without stand: 16.76 lbs / 7.6 kg

0°C to 35°C / 32°F to 95°F
Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

Energy Star 8.0 certified configurations available

Canada cUL, IC
United States UL, FCC
Germany TUV
Europe CE
Australia RCM
United Kingdom UKCA
International CB
Argentina S-Mark
Brazil ANATEL
Japan VCCI, MIC
China CCC, SRRC
Mexico NOM
RoHS CoC

50,000 hours demonstrated

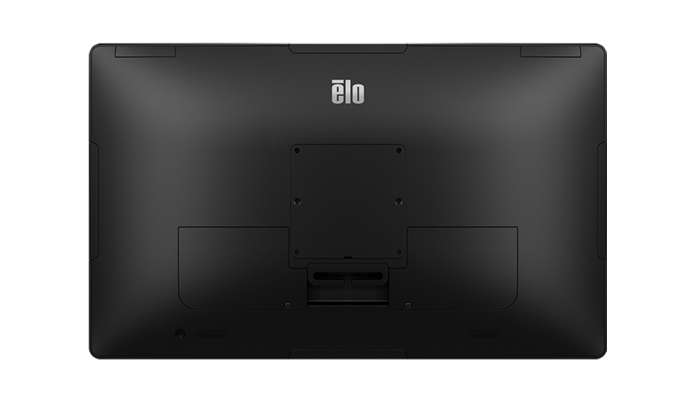

100mm VESA mount

3 years

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components
Kensington lock

With stand:
I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
CFD mounting screw

Without stand:
I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
VESA mounting screw
