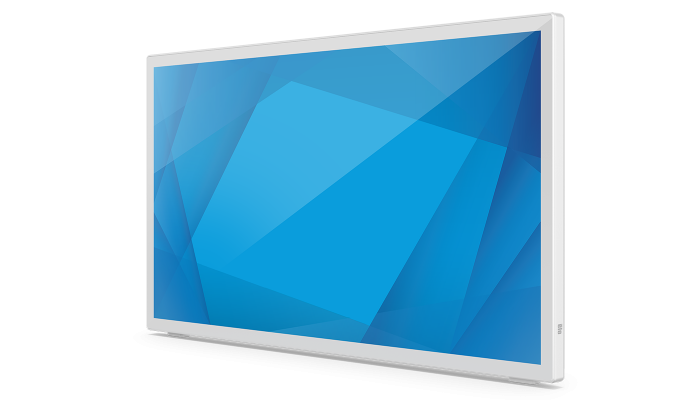

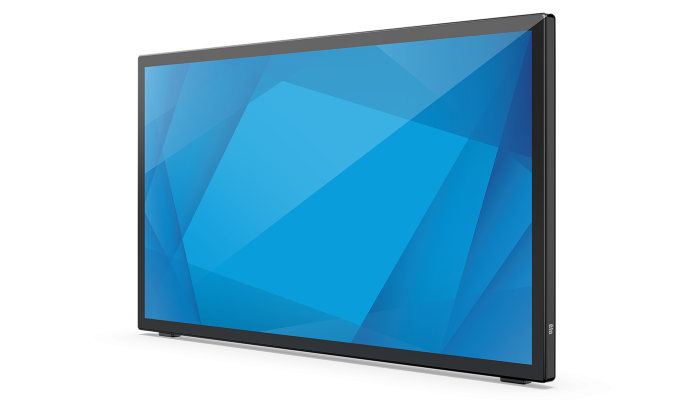

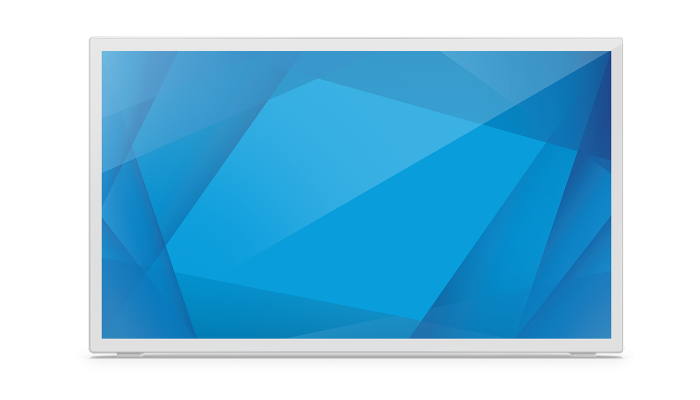

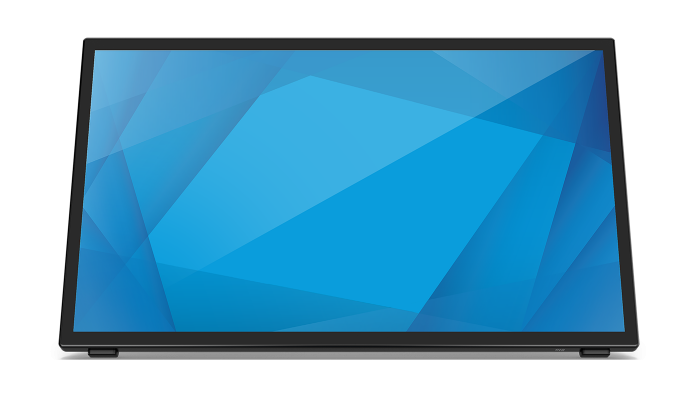

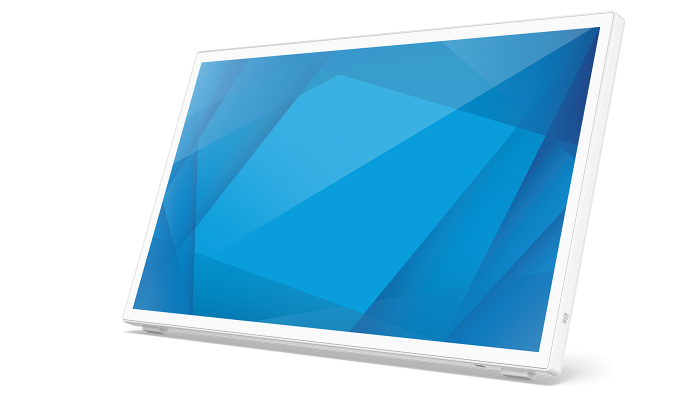

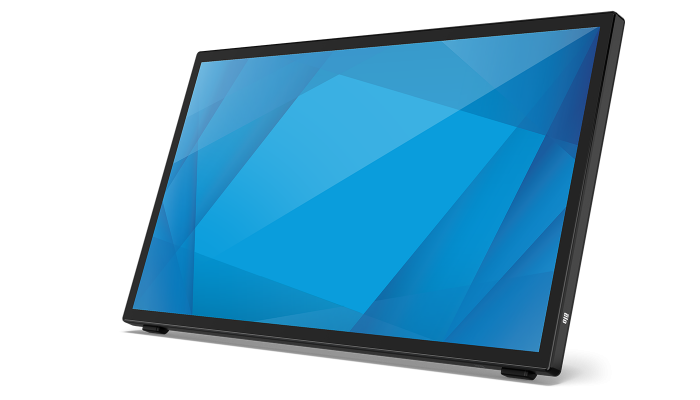

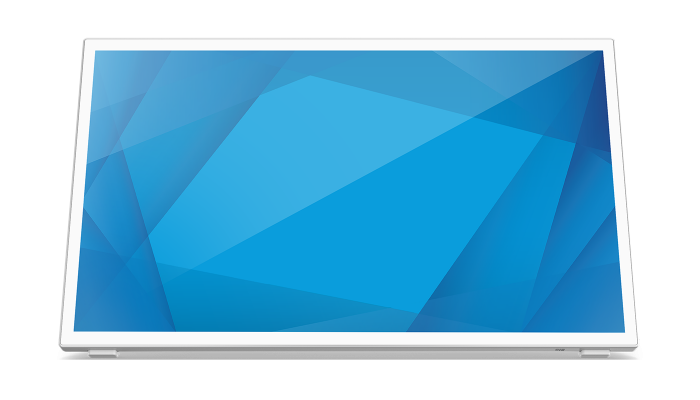

2270L 22″ Touchscreen Monitor

Black, clear - E510259
Black, anti-glare - E511214
White, anti-glare - E265991

White or Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

21.5'' diagonal, Active matrix TFT LCD (LED)

16:9

18.74" x 10.54" / 476.06 mm x 267.79 mm

1920 x 1080 @ 50, 60Hz

640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD Panel: 250 nits
TouchPro PCAP: 225 nits

14 msec

1000:1

USB

Clear or Anti-glare

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Lockouts: OSD, Power

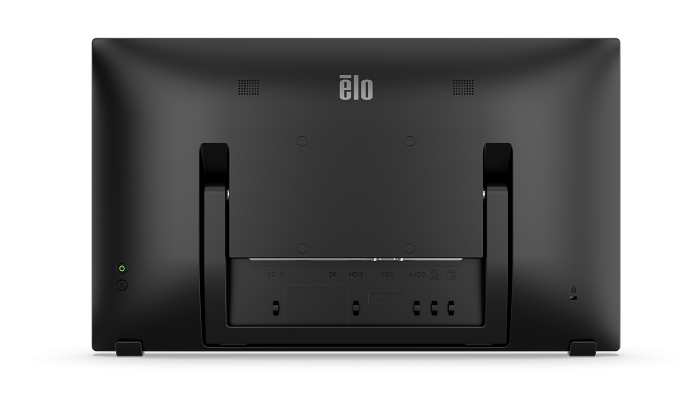

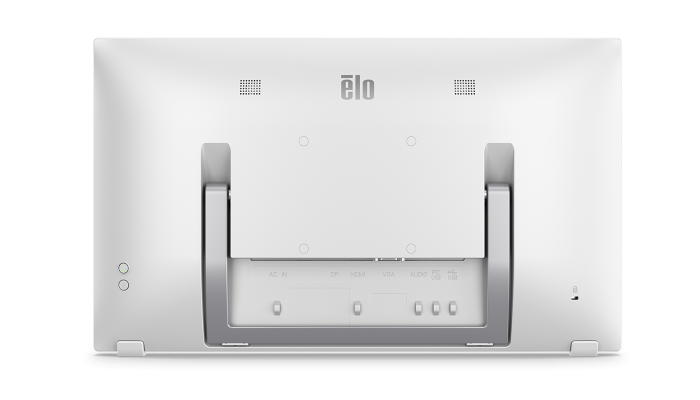

AC Input (IEC60320 C6)
Audio in/out
VGA
HDMI
DisplayPort
USB 2.0 Type B
2x USB 2.0 Type A

Two x 2W internal speakers

VGA (Female DB-15 connector)
HDMI (receptable type A)
DisplayPort

Horizontal: 30 – 82KHz
Vertical: 50 - 75Hz

AC power input connector (IEC 60320 C6)
AC input voltage range: 100-240VAC, 50/60Hz

Only display and touch function available:
ON (Default - 80% Brightness): 12.2 W
ON (Typical - 100% Brightness): 13.8 W
SLEEP: 0.5 W
OFF: 0.16 W

19.87" x 11.91" x 1.63" / 504.7 mm x 302.4 mm x 41.3 mm

23.19" x 5.35" x 15.55" / 589 mm x 136 mm x 395 mm

9.04 lbs / 4.1 kg

14.11 lbs / 6.4 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

Touchscreen sealed to bezel; Touchscreen sealed to LCD

50,000 hours demonstrated

VESA 4-hole 100mm mounting interface on rear of unit

Energy Star 8.0
TUV Rheinland (Flicker Free)
TUV Rheinland (Low Blue Light)
Power collection function via DDCCI

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Argentina AR certificate
Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI, PSE
International CB
Australia RCM
Russia EAC
Mexico CoC
RoHS, China RoHS, WEEE, REACH

IK07

2270L Touchmonitor
Quick Install Guide
HDMI cable
Touch USB cable
NA Power cable
EU Power cable
EEI Label (EU)
2x EEI Label (UK)
2x Replace foot cover
5x Cable tie
