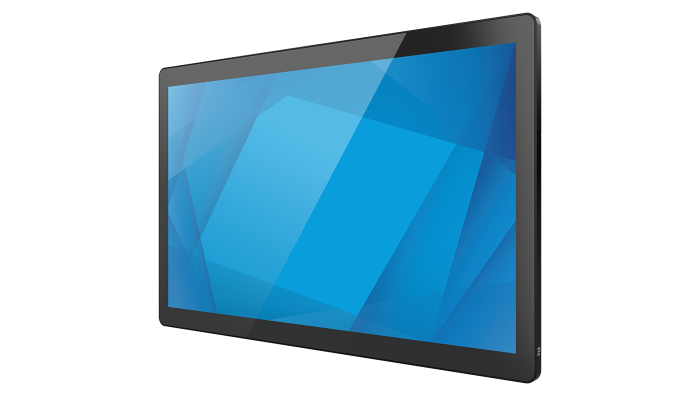

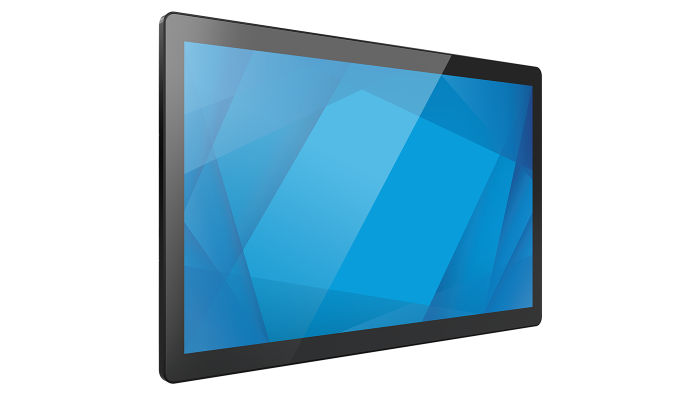

24-inch I-Series 3 with Intel

Celeron, Win10, 8GB RAM, 128GB SSD, Clear, Without Stand - E608084
Celeron, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E607901
i3, Win10, 8GB RAM, 128GB SSD, Clear, Without Stand - E608462
i3, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E608275
i5, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E608662
i5, Win 10, 8GB RAM, 128GB SSD, Clear, Without Stand - E608847

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz)
i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support

Intel UHD Graphics
For i5 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.

AMI

Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

i5: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

128GB M.2 PCIe (NVMe) SSD 80 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron & i3: N/A
i5: Intel Active Management Technology

23.8'' diagonal, Active matrix TFT LCD (LED)

16:9

20.75" x 11.67" / 527.04 mm x 296.46 mm

1920 x 1080 @ 60Hz

16.7 million

LCD panel: 250 nits
TouchPro PCAP: 212.5 nits

16 msec

1000:1

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x RJ50 Powered Serial Port
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)

802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

Bluetooth 5.3

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit

Windows 10 - 36 Language groups

Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

On Celeron: 40W
On i3: 52W
On i5: 56W
Sleep: < 5W
Off: < 0.5W

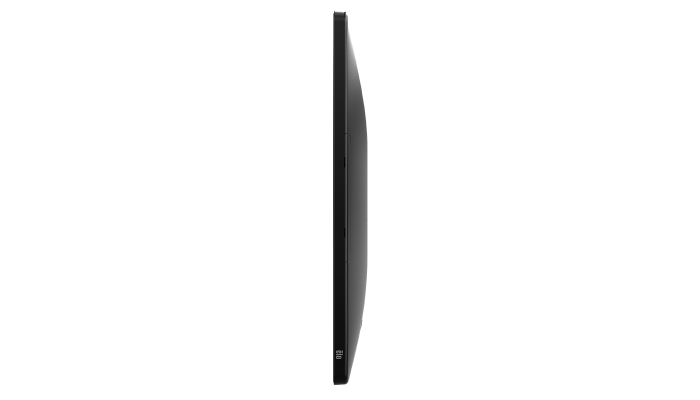

22.49" x 13.86" x 1.54" / 571.2 mm x 352.0 mm x 39.0 mm

27.4" x 20.8" x 7.4" / 697 mm x 529 mm x 188 mm

14.8 lbs / 6.7 kg

19.84 lbs / 9 kg

0°C to 35°C / 32°F to 95°F
Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

Energy Star 8.0 certified configurations available

Canada cUL, IC
United States UL, FCC
Germany TUV
Europe CE
Australia RCM
United Kingdom UKCA
International CB
Argentina S-Mark
Brazil ANATEL
Japan VCCI, MIC
China CCC, SRRC
Mexico NOM
RoHS CoC

50,000 hours demonstrated

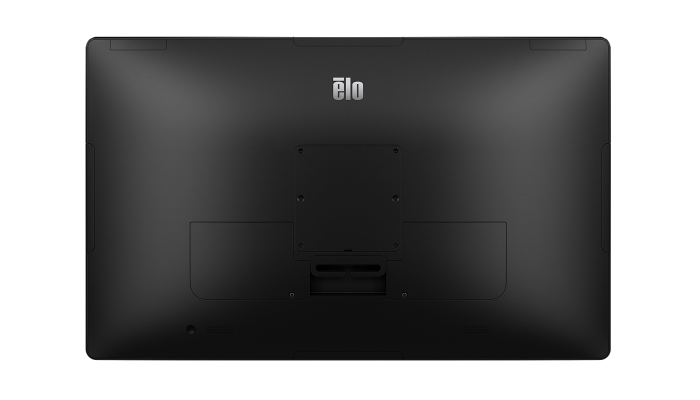

100mm VESA mount

3 years

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components
Kensington lock

I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
VESA mounting screw
