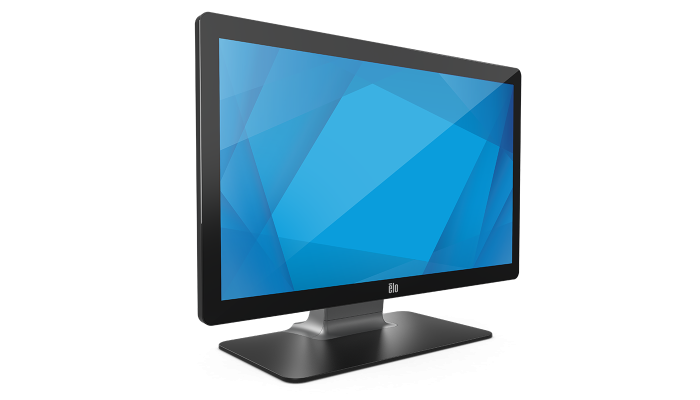

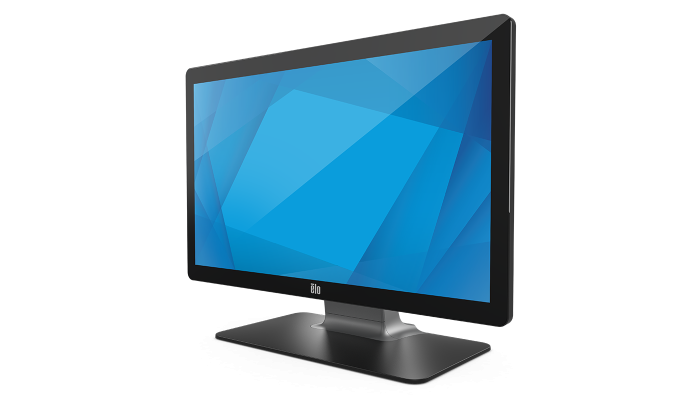

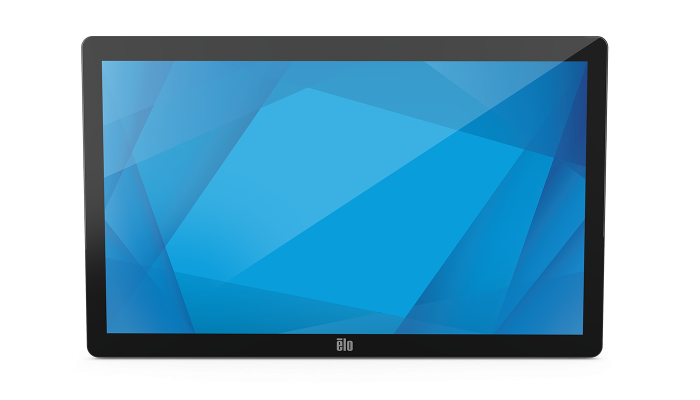

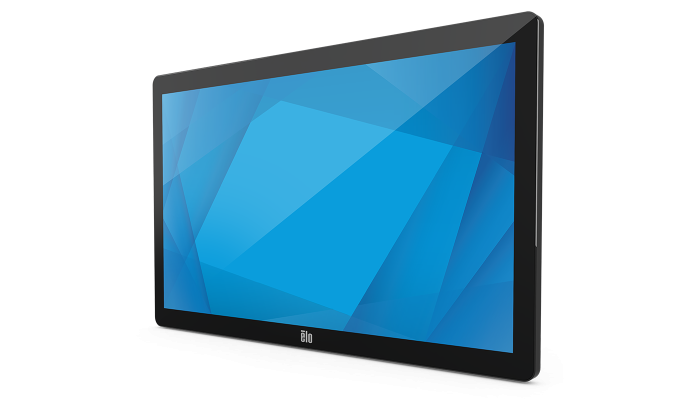

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
|
Part Numbers |
With Stand - E351806 |
|
Enclosure Color |
Black |
|
Touch Technology & Capacity |
PCAP (TouchPro® Projected Capacitive) - 10 Touch |
|
Diagonal Size |
23.8'' diagonal, Active matrix TFT LCD (LED) |
|
Aspect Ratio |
16:9 |
|
Active Area |
20.75" x 11.67" / 527.04 mm x 296.46 mm |
|
Resolution |
1920 x 1080 @ 50, 60Hz |
|
Other Supported Resolutions |
640 x 480 60Hz |
|
Viewing Angle |
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
|
Number of Colors |
16.7 million |
|
Brightness (typical) |
LCD Panel: 250 nits |
|
Response Time-total (typical) |
16 msec |
|
Contrast Ratio |
1000:1 |
|
Touch Interface |
USB |
|
Surface Treatment |
Clear |
|
On Screen Display |
Accessible through switches along the bottom: |
|
I/O Ports |
VGA |
|
Speakers |
Two x 2W internal speakers |
|
Input Video Format |
VGA (VGA DE-15 (DB-15) Male connecter cable included) |
|
Input Video Frequency |
Horizontal: 30 – 82KHz |
|
Power Consumption (Typical) |
Monitor + AC/DC adapter |
|
Input Voltage |
12VDC +/- 5% |
|
Input Connector |
Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter) |
|
Peripheral Mounting |
4x Micro USB side ports (Top, Bottom, Left, Right) |
|

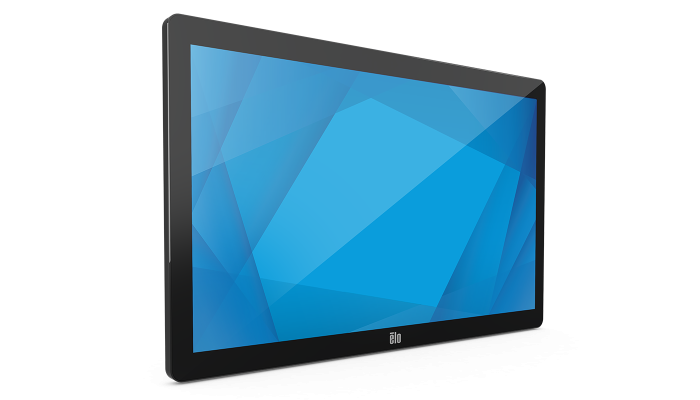

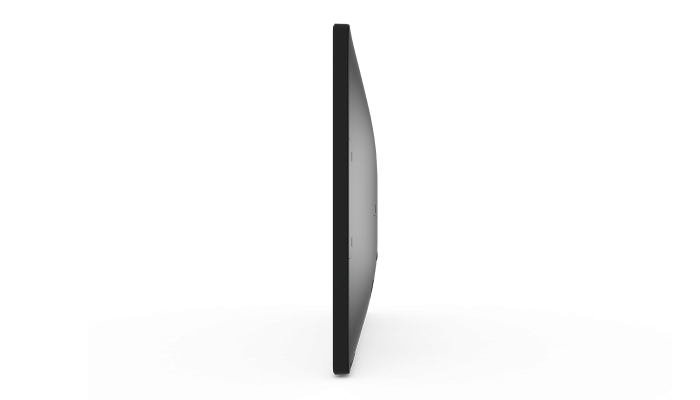

Monitor Dimensions (without Stand) |
13.94" x 22.62" x 1.69" / 354.1 mm x 574.6 mm x 42.8 mm |
|

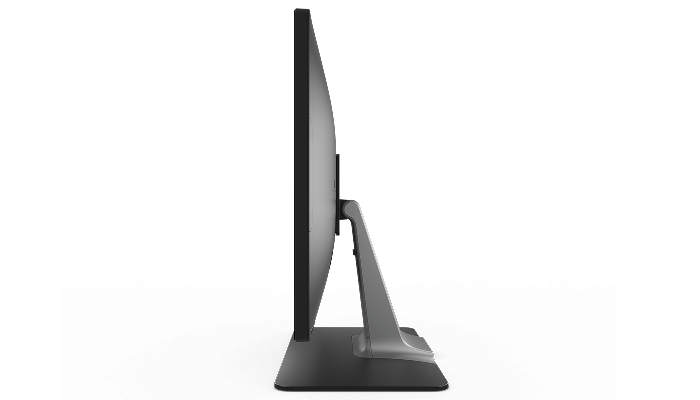

Monitor Dimensions (with Stand) |
17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm |
|
Shipping Box Dimensions |
With Stand: 20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm |
|
Weight (Unpackaged) |
With Stand: 21.58 lbs / 9.80 kg |
|
Weight (Packaged) |
With Stand: 28.45 lbs / 12.92 kg |
|
Operating Temperature |
0°C to 40°C / 32°F to 104°F |
|
Storage Temperature |
-20°C to 60°C / -4°F to 140°F |
|
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature) |
|
Sealability |
Touchscreen sealed to bezel; Touchscreen sealed to LCD |
|
MTBF |
50,000 hours demonstrated |
|

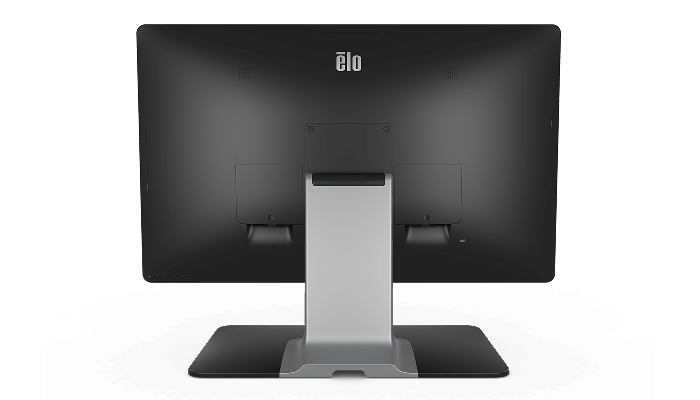

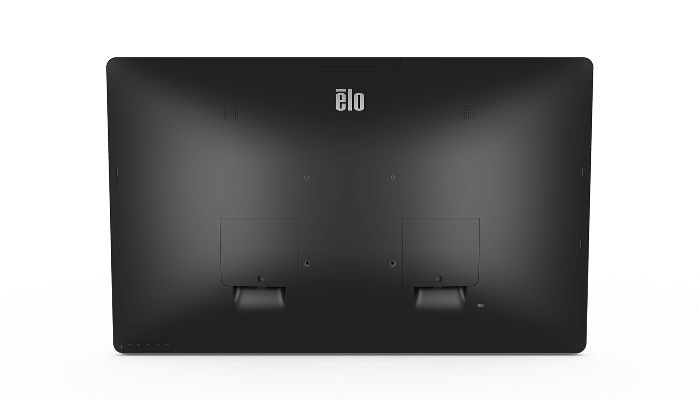

Mounting Options |
VESA 4-hole 100mm mounting interface on rear of unit |
|
Warranty |
3 years |
|
Extended Warranty Option |
4 year warranty coverage - Elo P/N: E898247 |
|
Regulatory approvals and declarations |
Canada CUL, IC |
|
Ingress Protection |
IPX1 - Front only |
|
Impact Protection |
IK06 |
|
What's in the Box |
Touchmonitor |
