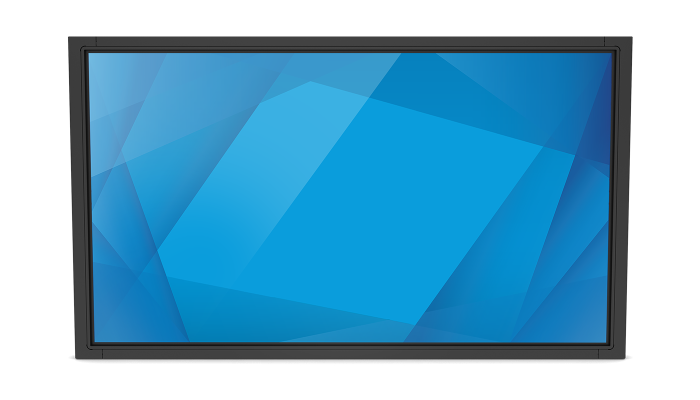

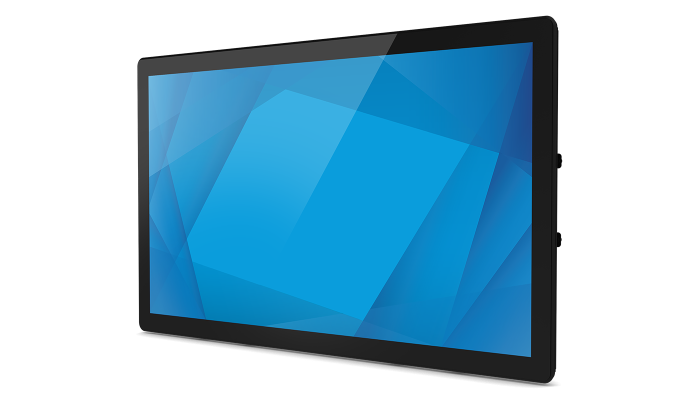

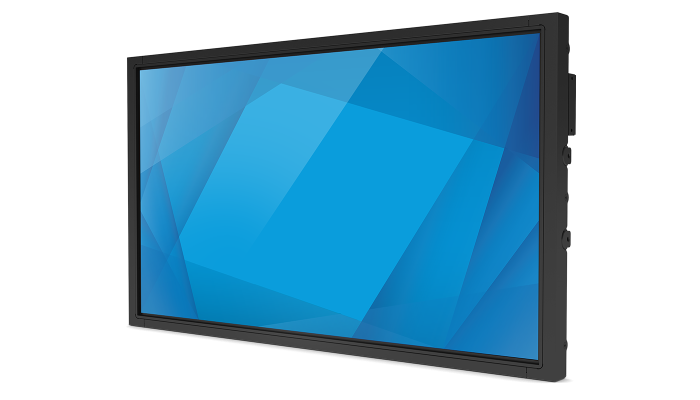

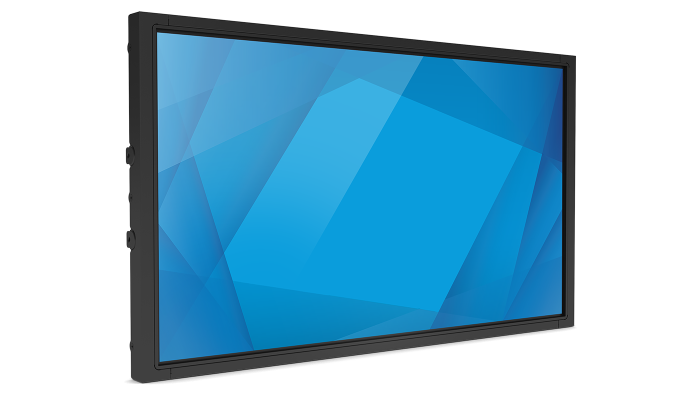

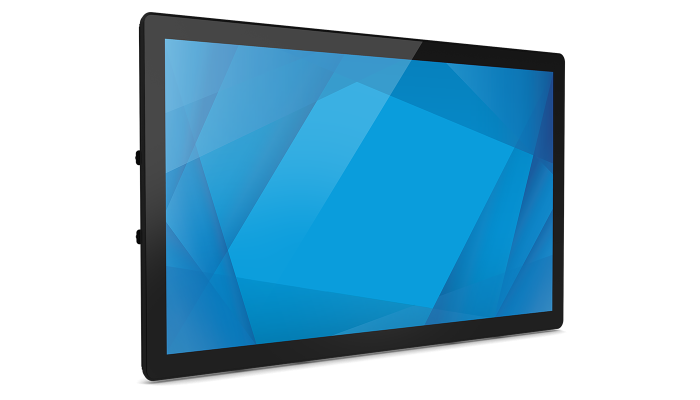

2494L 23.8″ Open Frame Touchscreen

IntelliTouch - E330019
IntelliTouch Dual Touch - E329825
TouchPro PCAP - E493782

Black

SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch

TouchPro PCAP
IntelliTouch DT - USB 2.0
IntelliTouch - Dual serial/USB 2.0

23.8'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

16:9

20.75" x 11.67" / 527.04 mm x 296.46 mm

1920 x 1080

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch Dual-Touch: 225 nits
TouchPro PCAP: 225 nits

16 msec

3000:1

Serial port (IntelliTouch only), USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz

HDMI, VGA & Display Port

External DC - Optional power brick (sold separately)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

12VDC +/- 5%

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

ON (Default - 75% Brightness): 15.24 W
ON (Typical - 100% Brightness): 17.46 W
SLEEP FROM PC (monitor + adapter): 1.07 W
OFF (monitor + adapter): 0.2 W

Bezel: 22.14" x 12.86" x 1.64" / 562.4 mm x 326.6 mm x 41.7 mm
TouchPro PCAP: 22.41" x 13.43" x 1.5" / 569.2 mm x 341.1 mm x 38 mm

27.24" x 17.8" x 7.48" / 692 mm x 452 mm x 190 mm

IntelliTouch: 14.09 lbs / 6.39 Kg
TouchPro PCAP: 13.6 lbs / 6.17 Kg

IntelliTouch: 19.29 lbs / 8.75 Kg
TouchPro PCAP: 17.79 lbs / 8.07 Kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95%

Touchscreen sealed to bezel
Touchscreen sealed to LCD

50,000 hours demonstrated

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

ustralia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
RoHS, China RoHS, WEEE

GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only)
UL 62368 ball-drop compliant (TouchPro PCAP only)
IK08 impact compliant (TouchPro PCAP only)

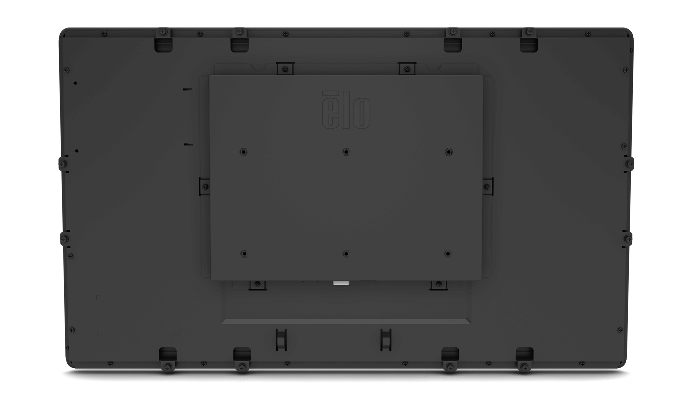

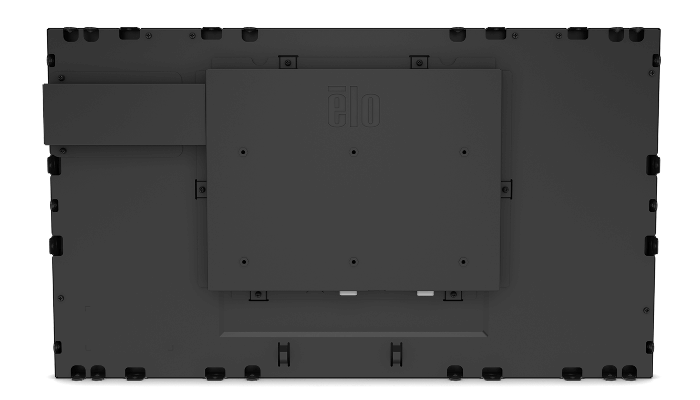

200x100mm VESA mount on rear of unit
4-hole mounting interface on all four sides. (IntelliTouch/IntelliTouch DT Models see Part Numbers for details)
Side mount with included “L” brackets (IntelliTouch/IntelliTouch DT Models see Part Numbers for details)
Front mount with optional bezel kit (IntelliTouch/IntelliTouch DT Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)

HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled - IntelliTouch Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
