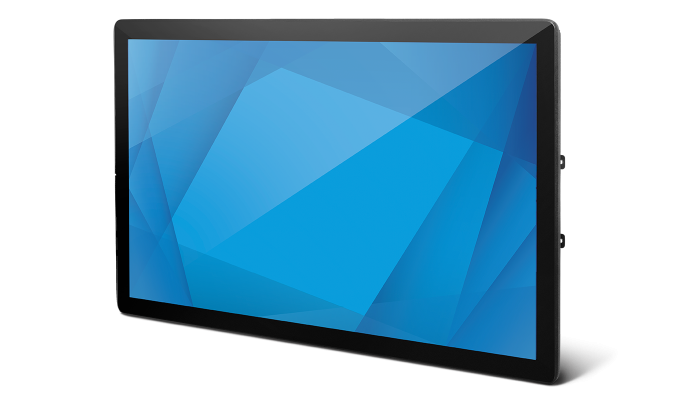

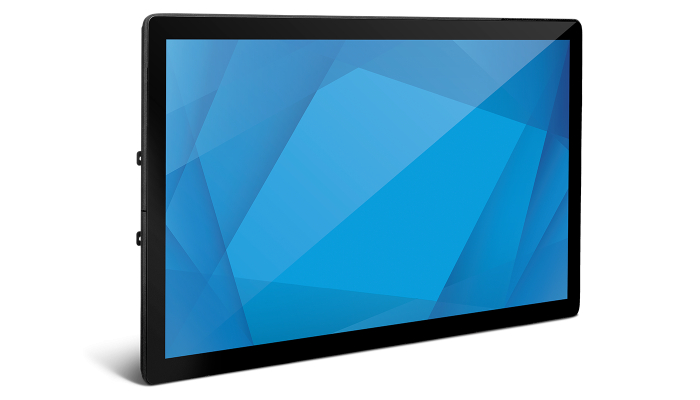

2495L 23.8″ Open Frame Touchscreen

TouchPro PCAP - E506980

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

USB 2.0

23.8'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

16:9

20.75" x 11.67" / 527.04 mm x 296.46 mm

1920 x 1080

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD panel: 600 nits
TouchPro PCAP: 540 nits

14 msec

1000:1

USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz

HDMI, VGA & Display Port

Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

Monitor input voltage range: 12VDC +/- 5%

Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz

ON (Typical - 100% Brightness): 32.95 W
SLEEP FROM PC (monitor + adapter): 0.71 W
OFF (monitor + adapter): 0.2 W

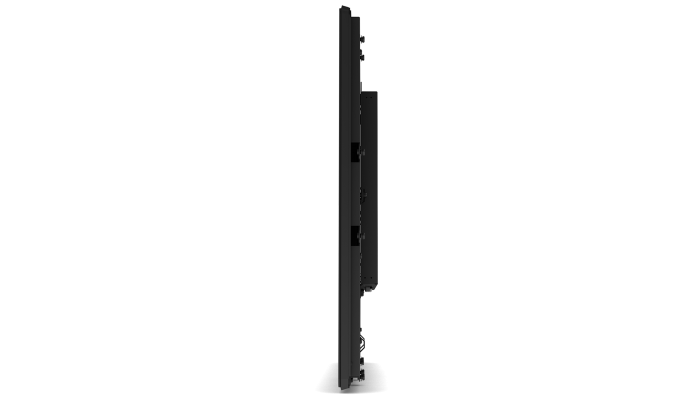

22.41" x 13.43" x 1.46" / 569.2 mm x 341.1 mm x 37 mm

27.24" x 17.8" x 7.48" / 692 mm x 452 mm x 190 mm

12.47 lbs / 5.65 kg

16.7 lbs / 7.57 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95%

Touchscreen sealed to bezel
Touchscreen sealed to LCD

50,000 hours demonstrated

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
RoHS, China RoHS, WEEE

GLI 27 kV air / 8 kV contact ESD compliant
UL 62368 ball-drop compliant
IK07 impact compliant

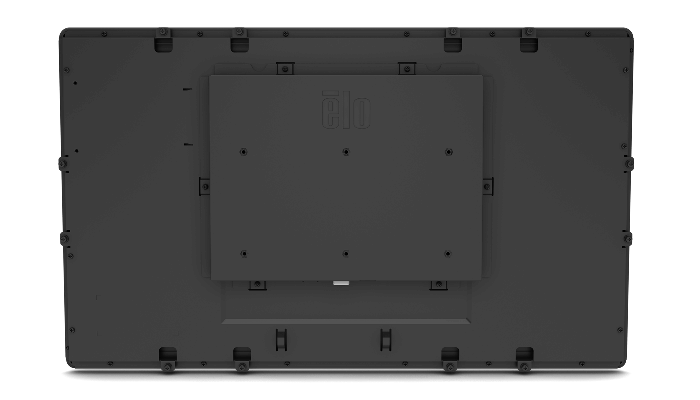

200x100mm VESA mount on rear of unit
Flush mount with included brackets

HDMI cable
Touch USB Cable
VGA Cable
Remote OSD
Flush Mount Brackets w/Screws
Quick Install Guide
EEI Label
Japan Class-B TM info sheet
