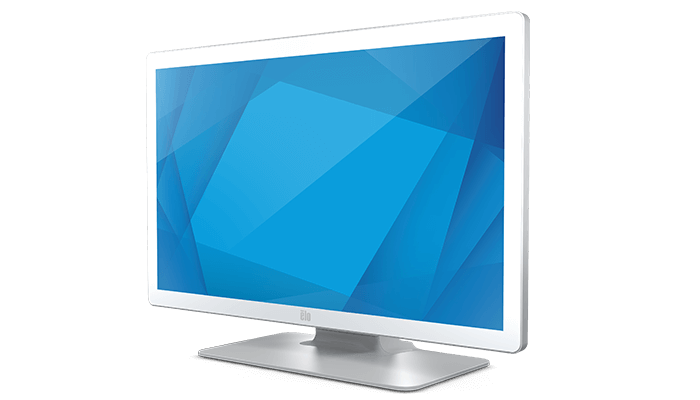

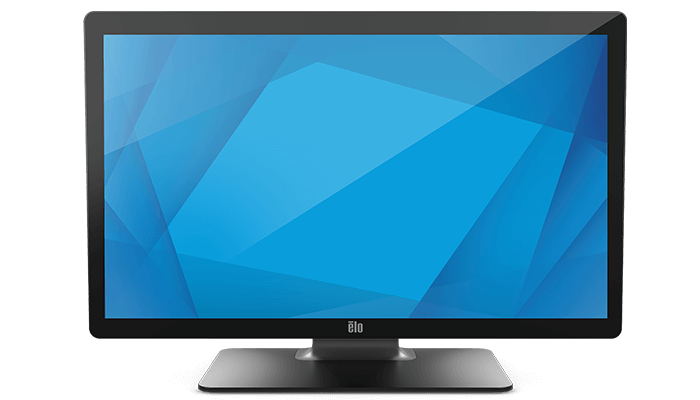

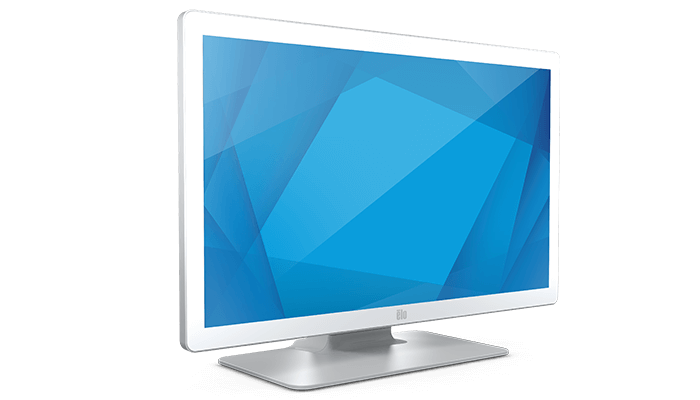

2703LM 27″ Medical Grade Touchscreen Monitor

TouchPro PCAP White with stand - E659793
TouchPro PCAP Black with stand - E659596
TouchPro PCAP White without stand - E381844
TouchPro PCAP Black without stand - E381654

White or Black

PCAP (Projected Capacitive) - 10 Touch

27'' diagonal, Active matrix TFT LCD (LED)

16:9

23.54" x 13.24" / 597.88 x 336.31 mm

1920 x 1080 @ 50, 60Hz

640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD Panel: 300 nits
TouchPro PCAP: 270 nits

14 msec

1000:1

USB, Serial (via VGA)

Anti-glare

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Lockouts: OSD, Power

VGA (RS232 touch supported via E810917)
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB

Two 2W internal speakers

VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)

Horizontal: 30 – 82KHz
Vertical: 50 - 75Hz

Monitor + AC/DC adapter
ON (Default - 75% Brightness): 17.37 W
ON (Typical - 100% Brightness): 22.41W
SLEEP: 1.006 W
OFF: 0.24 W

12VDC +/- 5%
100-240VAC, 50/60Hz

Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

4x Micro USB side ports (Top, Bottom, Left, Right)

15.52" x 25.50" x 1.77" / 394.1 mm x 647.6 mm x 44.9 mm

17.75" x 25.50" x 9.17" / 450.9 mm x 647.6 mm x 233 mm

With Stand: 22.05" x 30.08" x 12.68" / 560 mm x 764 mm x 322 mm
Without Stand: 20.47'' x 30.31'' x 7.36'' / 520 mm x 770 mm x 187 mm

With Stand: 22.64 lbs / 10.27 kg
Without Stand: 15.72 lbs / 7.13 kg

With Stand: 31.48 lbs / 14.28 kg
Without Stand: 22.95 lbs / 10.41 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

Touchscreen sealed to bezel; Touchscreen sealed to LCD

50,000 hours demonstrated

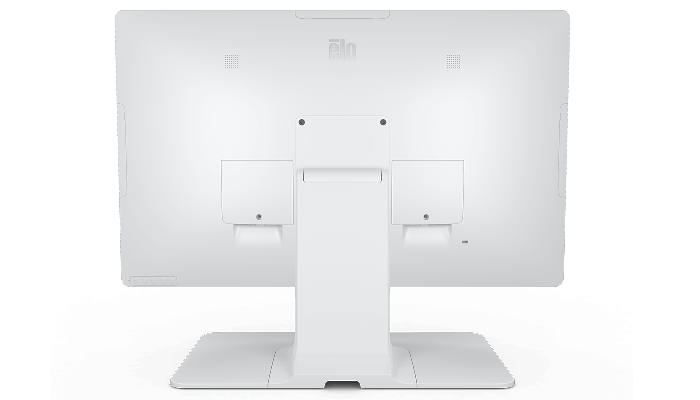

VESA 4-hole 75mm and 100mm mounting interface on rear of unit

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
India BIS
RoHS, China RoHS, WEEE, REACH

UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
CE: IEC 60601-1-2:2014 (Ed. 4)
Risk Management: ISO 14971:2007 + EN ISO 14971:2012
Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)

DICOM Part 14 (AAPM secondary display)

IP54 entire enclosure

IK06

Touchmonitor
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick (E323104)
NA Power cable
EU Power cable
EEI Label
DICOM calibration sheet
4 x VESA Screws (only for E381654 and E381844)
4 x rubbers (only for E381654 and E381844, affix to VESA holes)
2 x Cable cover screws
