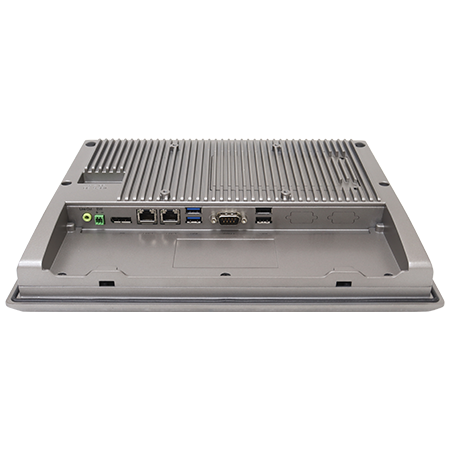

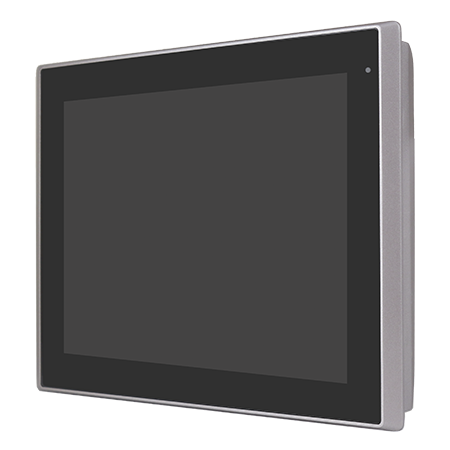

Its fanless design offers 24/7 reliability, from low power Intel® Celeron to the 8th Core i3/i5 CPU.The projected capacitive touch screen with pure flat, multi-touch support, anti-scratching, Wi-Fi, Dual LAN, Serial and USB functionality.
|
LCD Size |
12.1" TFT-LCD |
|
Touch Type |
Projected Capacitive |
|
Luminance(cd/m²) |
Standard: 450 |
|
BIOS |
AMI |
|
CPU |
Intel Celeron J6412 Quad Core Processor |
|
Power Consumption |
ARCHMI-812BP/R: 40W |
|
System Chipset |
SoC |
|
System Memory |
1 x DDR4 3200MHz SO-DIMM, up to 32GB |
|
TPM |
TPM 2.0 |
|
Audio |
1 x Line-out |
|
DP |
1 x DP, support DP++ |
|
LAN |
2 x 2.5GbE LAN RJ-45 (I226) |
|
Power |
1 x 3-pin Terminal Block Connector |
|
Serial / Parallel |
1 x RS-232/422/485 (Default RS-232; select via BIOS) |
|
USB |
2 x USB 3.2 Gen2 type A |
|
HDD/SSD |
1 x M.2 B-Key slot (Support SATA3; 2242/2280, Default 2242) |
|
Expansion Slot |
1 x Mini-PCIe slot (full size) |
|
Backlight lifetime (hrs) |
Standard: 50,000 |
|
Contrast |
1000:1 |
|
Max. color |
16.7M |
|
Max. resolution |
800 x 600 (default) |
|
Viewing Angle (H°/V°) |
176 / 176 (default) |
|
Construction |
Aluminum Die-casting Chassis |
|
Dimension(mm) |
319 x 245 x 51.7 mm |
|
IP rating |
IP66 Compliant Front Bezel |
|
Mounting |
Panel Mount, VESA 100 x 100 |
|
Net weight (Kgs) |
2.73 kg |
|
Certification |
CE/FCC class B/UL |
|
Operating Temperature (°C) |
0~50˚C |
|
Storage Humidity |
10 to 95% @ 40˚C, non-condensing |
|
Storage Temperature (°C) |
-30~70˚C |
Download PDF & DWG
