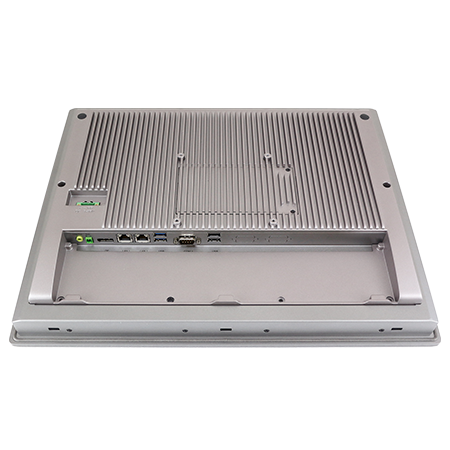

ARCHMI-817

Technical Specifications

LCD Size	17" TFT-LCD
Touch Type	Projected Capacitive Resistive
Luminance(cd/m²)	Standard: 350 High Brightness: 1000
CPU	Intel Celeron J6412 Quad Core Processor
Power Consumption	ARCHMI-815BP/R: 40W
System Chipset	SoC
System Memory	1 x DDR4 3200MHz SO-DIMM, up to 32GB
TPM	TPM 2.0
Audio	1 x Line-out
DP	1 x DP, support DP++
LAN	2 x 2.5GbE LAN RJ-45 (I226)
Power	1 x 3-pin Terminal Block Connector 1 x 2-pin Power Switch Connector
Serial / Parallel	1 x RS-232/422/485 (Default RS-232; select via BIOS)
USB	2 x USB 3.2 Gen2 type A 2 x USB 2.0 type A
HDD/SSD	1 x M.2 B-Key slot (Support SATA3; 2242/2280, Default 2242)
Expansion Slot	1 x Mini-PCIe slot (full size) 1 x M.2 E-key 1 x Nano SIM Card Holder
Backlight lifetime (hrs)	Standard: 30,000 High Brightness: 50,000
Contrast	1000:1
Max. color	16.2M
Max. resolution	1280 x 1024
Viewing Angle (H°/V°)	170 / 160
Construction	Aluminum Die-casting Chassis
Dimension(mm)	439 x 348 x 64.8 mm
IP rating	IP66 Compliant Front Bezel
Mounting	Panel Mount, VESA 100 x 100
Net weight (Kgs)	6.07 kg
Certification	CE/FCC class B/UL
Operating Temperature (°C)	0~50˚C -20~60˚C (option)
Storage Humidity	10 to 95% @ 40˚C, non-condensing
Storage Temperature (°C)	-30~70˚C
