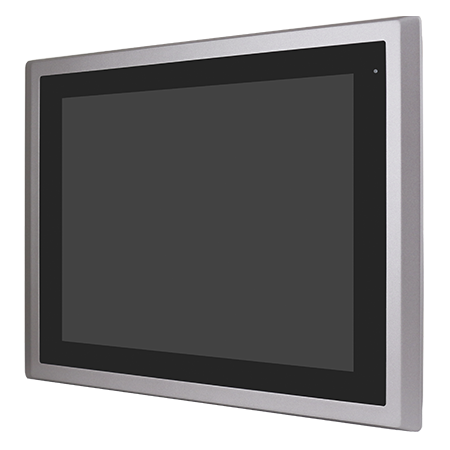

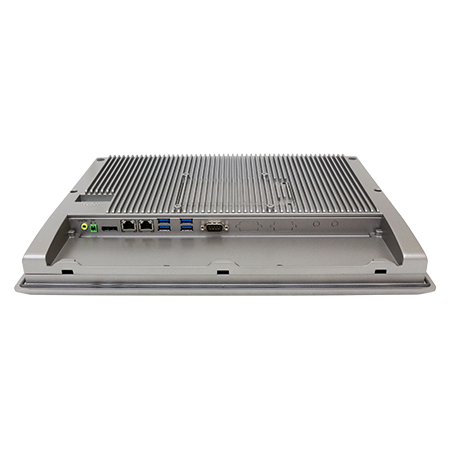

ARCHMI-915

Technical Specifications

LCD Size	15" TFT-LCD
Touch Type	Projected Capacitive Resistive
Luminance(cd/m²)	Standard: 300 High Brightness: 1000
CPU	Intel 8th Gen. Corei3-8145UE Processor(2C/4T,2.2GHz) Intel 8th Gen. Corei5-8365UE Processor(4C/8T,1.6GHz)
Power Consumption	ARCHMI-915BP: 50W (MAX)
System Chipset	SoC
System Memory	1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz
TPM	TPM 2.0
Audio	1 x Audio Line Out
DP	1 x DP Port
LAN	2 x GbE LAN RJ-45
Power	1 x 3-pin Terminal Block Connector 1 x 2-pin Power Switch Connector
Serial / Parallel	1 x DB-9 Connector, Including: 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1) 1 x RS-232(Tx, Rx)/ 422/485(COM2) by Y Cable
USB	4 x USB 3.0 type A
HDD/SSD	1 x M.2 M Key slot (Support PCIe/SATA; 2242/2280, Default 2242)
Expansion Slot	1 x Mini-PCIe slot (full size) 1 x Nano SIM Card Holder
Backlight lifetime (hrs)	70,000
Contrast	Standard: 1000:1 High Brightness: 800:1
Max. color	16.2M
Max. resolution	1024 x 768
Viewing Angle (H°/V°)	176 / 176 (default)
Construction	Aluminum die-casting chassis
Dimension(mm)	410 x 310 x 54.67 mm
IP rating	IP66 Compliant Front Bezel
Mounting	Panel Mount, VESA 100 x 100
Net weight (Kgs)	4.4 kg
Certification	CE / FCC, Class A
Operating Temperature (°C)	0~50˚C -20~60˚C (option)
Storage Humidity	10 to 95% @ 40˚C, non-condensing
Storage Temperature (°C)	-30~70˚C
