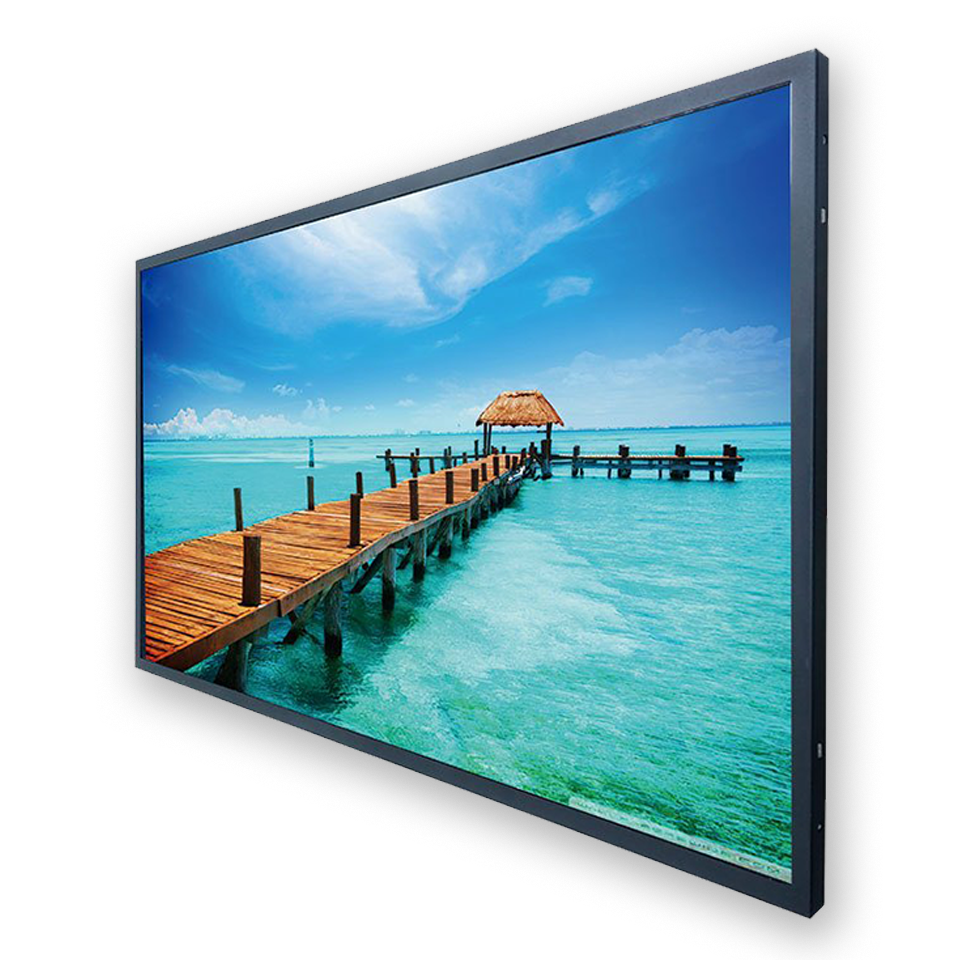

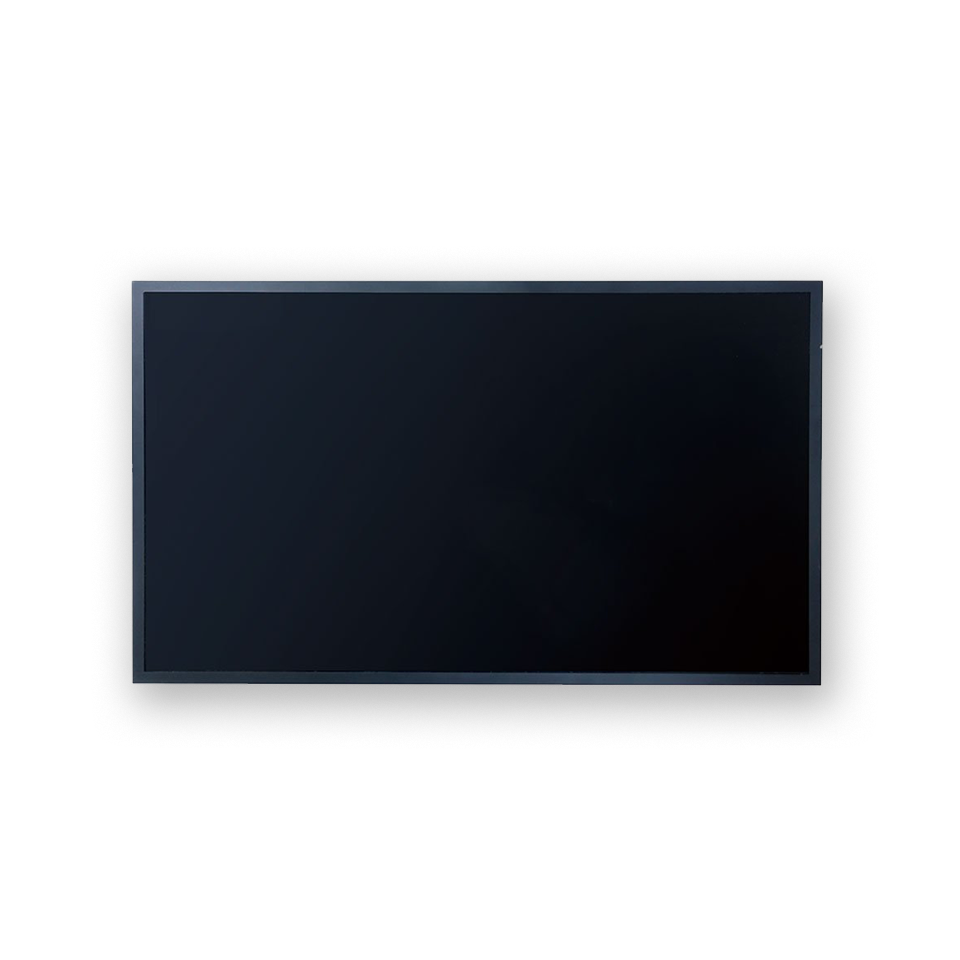

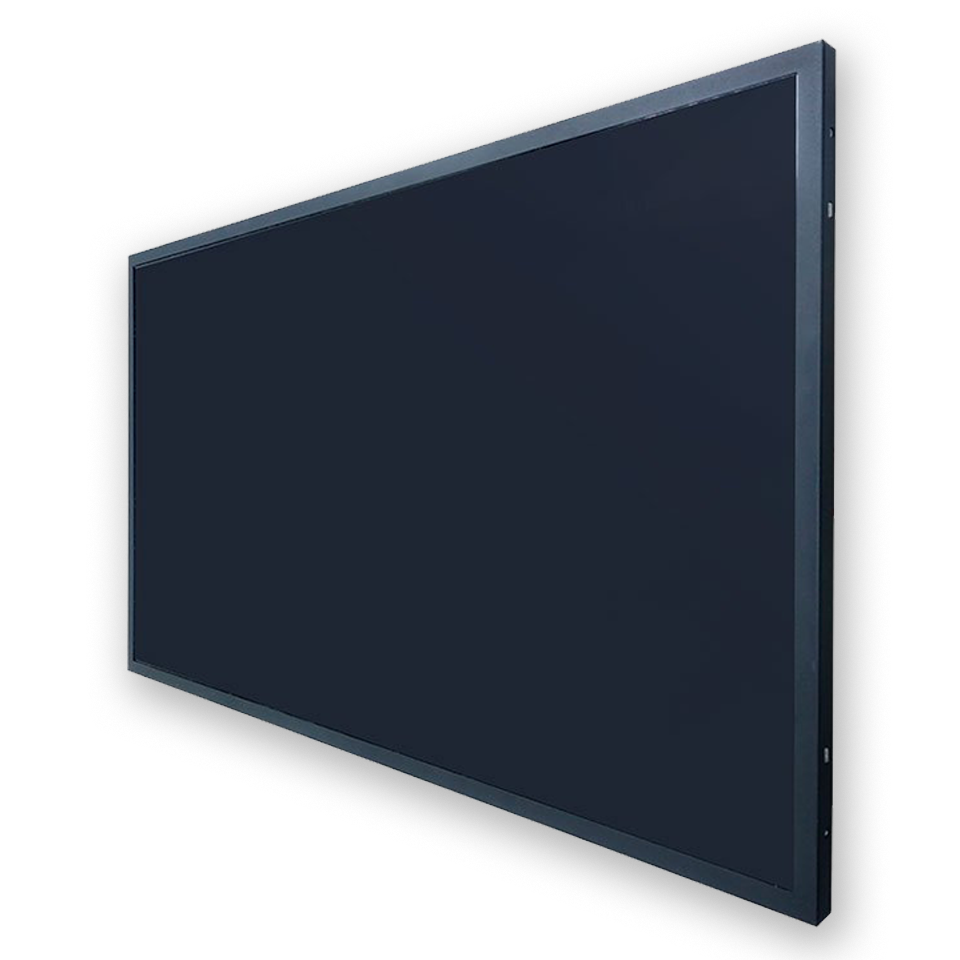

The DLD2408-U is a 24 inch industrial grade sunlight readable LCD, with high brightness 1600 nits, it produce sharp images, crisp text and lifelike colors.
The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
|
Description |
24” TFT LCD, 1600 nits LED Backlight, 1920x1080 |
|
Screen Size |
24" |
|
Display Area (mm) |
531.360(H) x 298.890(V) |
|
Brightness |
1600 cd/m2 |
|
Resolution |
1920x1080 |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
5400:1 |
|
Pixel Pitch (mm) |
0.276(H) x 0.276(V) |
|
Pixel Pre Inch (PPI) |
92 |
|
Viewing Angle |
178°(H),178°(V) |
|
Color Saturation (NTSC) |
84% |
|
Display Colors |
16.7M |
|
Response Time (Typical) |
25ms |
|
Panel Interface |
LVDS |
|
Input Interface |
DVI-I, HDMI, DP |
|
Input Power |
DC12V |
|
Power Consumption |
43W |
|
OSD Key |
4 Keys (Power Switch, Menu, +, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Dimensions (mm) |
558.44 x 325.6 x 36.53 |
|
Bezel Size(U/B/L/R) |
13.35/13.36/13.54/13.54 mm |
|
Weight (Net) |
4 kg |
|
Mounting |
75x75, 100x100 mm |
|
Operating Temperature |
-20 ˚C ~ 70 ˚C |
|
Storage Temperature |
-30 ˚C ~ 80 ˚C |
Download PDF + DWG
