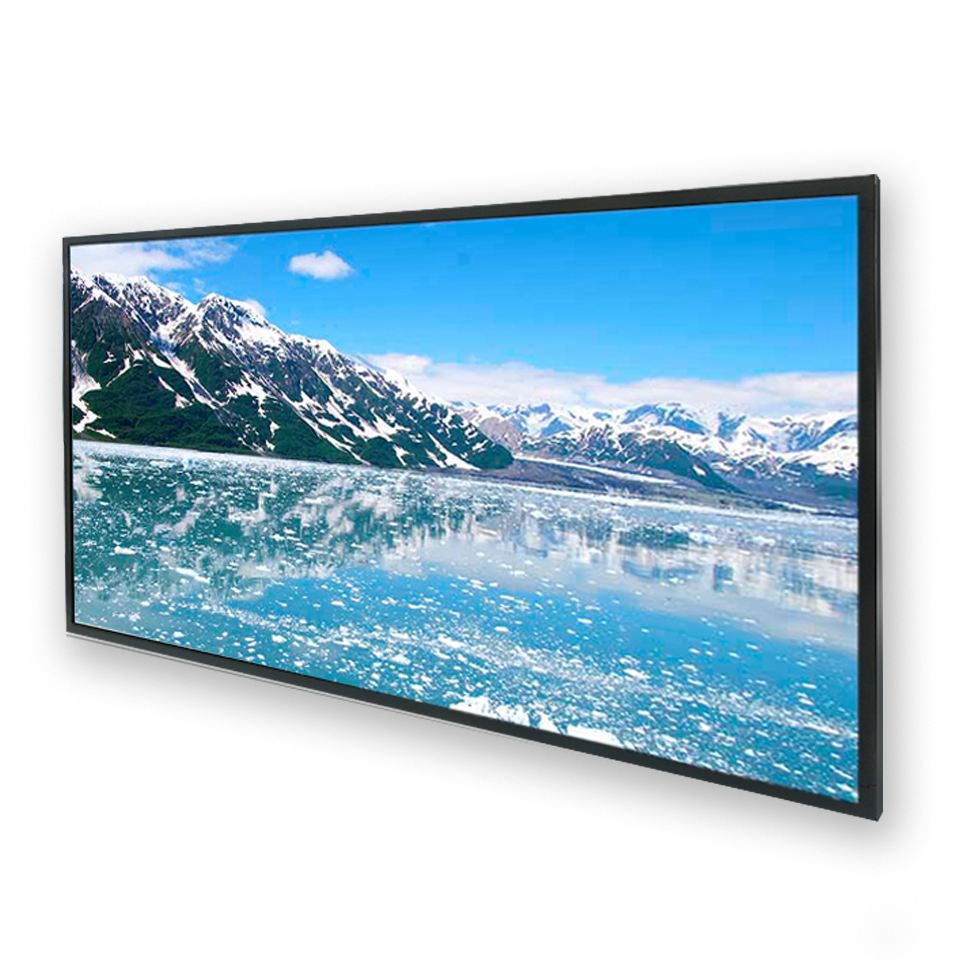

The DLD4305-ANU is a 43 inch industrial grade sunlight readable LCD, with high brightness 1000 nits and high color saturation, it produce sharp images, crisp text and lifelike colors.
The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
|
Description |
43” TFT LCD, LED Backlight 1000 nits, UHD (3840x2160) |
|
Screen Size |
43" |
|
Display Area (mm) |
941.184(H) x 529.416(V) |
|
Brightness |
1000 cd/m2 |
|
Resolution |
3840x2160 |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
3700:1 |
|
Pixel Pitch (mm) |
0.2451(H) x 0.2451(V) |
|
Pixel Pre Inch (PPI) |
102 |
|
Viewing Angle |
178°(H),178°(V) |
|
Color Saturation (NTSC) |
85% |
|
Display Colors |
1.07G |
|
Response Time (Typical) |
8ms |
|
Panel Interface |
V-by-One |
|
Input Interface |
DVI-I, HDMI, DP |
|
Input Power |
AC100~240V |
|
Power Consumption |
138W |
|
OSD Key |
5 Keys (Power Switch, Menu, +, Exit, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Dimensions (mm) |
973 x 567.3 x 69.9 |
|
Bezel Size(U/B/L/R) |
18.9/18.9/15.9/15.9 mm |
|
Mounting |
400x100 mm |
|
Weight (Net) |
18 kg |
|
Operating Temperature |
0 ˚C ~ 50 ˚C |
|
Storage Temperature |
-20 ˚C ~ 60 ˚C |
Download PDF + DWG
