Description |

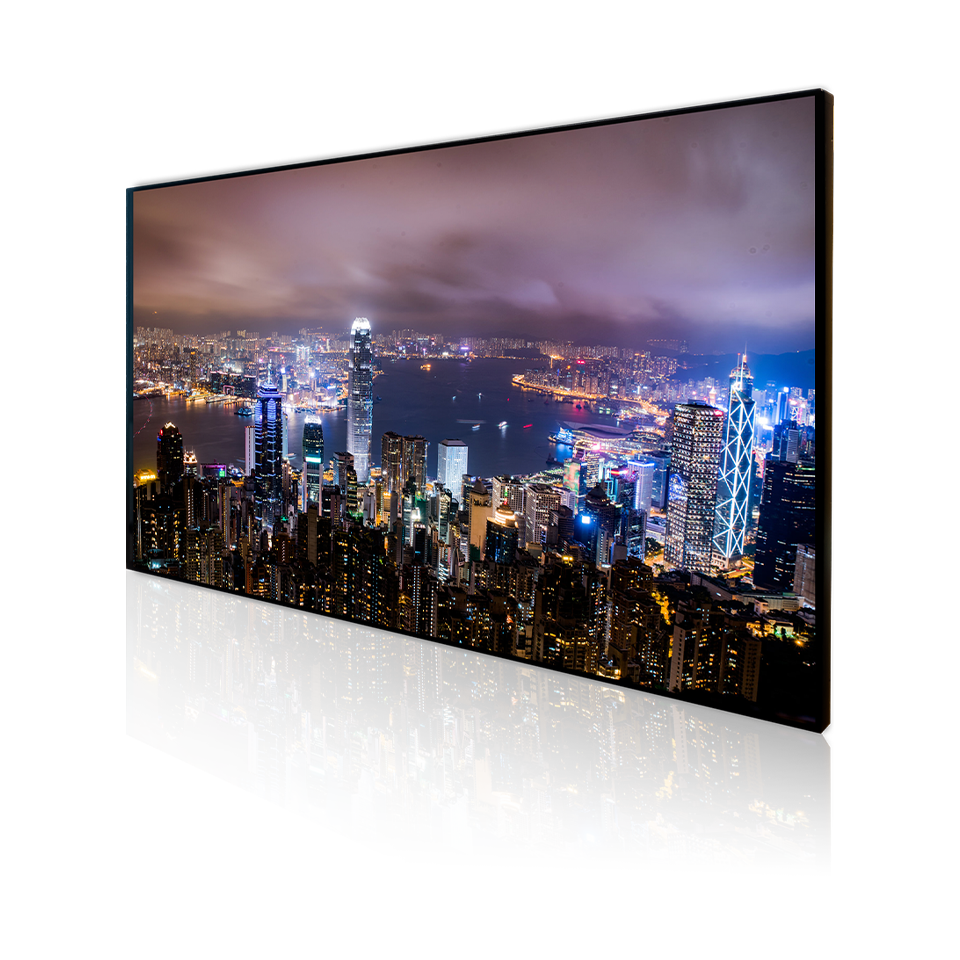

55” TFT LCD, 1000nits LED Backlight, 3840x2160 |
|
Screen Size |
55" |
|
Display Area (mm) |
1209.6(H) x 680.4(V) |
|
Brightness |
1000 cd/m² |
|
Resolution |
3840x2160 |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
1000:1 |
|
Pixel Pitch (mm) |
0.315 (H) x 0.315 (V) |
|
Pixel Pre Inch (PPI) |
80 |
|
Viewing Angle |
178° (H), 178° (V) |
|
Color Saturation (NTSC) |
82% |
|
Display Colors |
1.07G |
|
Response Time (Typical) |
8ms |
|
Video Interface |
V-by-One |
|
Input Power |
DC 12V |
|
Power Consumption |
134W |
|
Dimensions (mm) |
1232.4x 703.2 x 30.8 |
|
Bezel Size(U/B/L/R) |
11.4/11.4/11.4/11.4 |
|
Weight (Net) |
15 kg |
|
Mounting |
VESA 400x200 |
|
OSD Key |
5 keys (Power switch, menu, +, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Operating Temperature |
0°C ~ +50°C |
|
Storage Temperature |
-20°C ~ +60°C |
Download PDF + DWG
