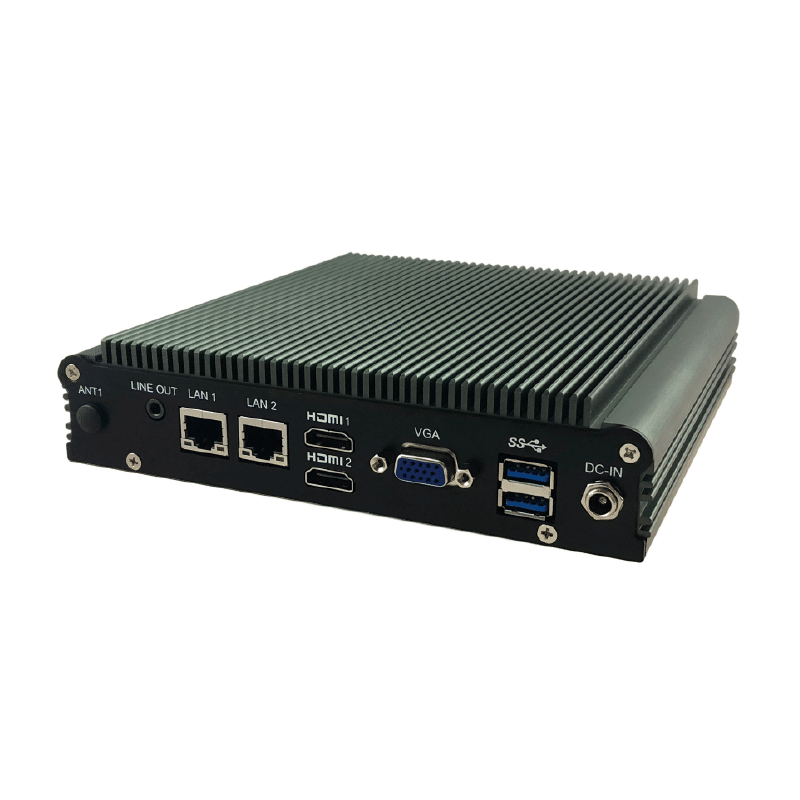

The SBOX-2601 is powered by Intel Gen 6 i7-6600U with HD Graphic 520/2 x LAN/2 x HDMI®/VGA/DC 12V, and up to 16GB DDR4 SODIMM Fanless Box PC. Intel’s sixth-generation core microarchitecture, “Skylake”, is perfect solution for the application that requires a boost in performance, such as when streaming multimedia. SBOX-2601 is designed for outdoor video surveillance, automatic factory, automatic guided vehicle (AGV) and flight information display system (FIDS) in the airports. The solutions can tackle all manner of outdoor digital applications and extreme weather conditions. In addition, the ultra slim (40 mm) compact size makes this series ideally suited for digital signage or kiosks where space is limited.
|
Part Number |
SBOX-2601-i3 |
|
Processor |
Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz |
|
Memory |
1 x DDR4 SO-DIMM up to 16GB |
|
ATA |
2 x Serial ATA ports with 6Gb/s HDD Transfer Rate |
|
Watchdog |
1 ~ 255 level reset |
|
Graphics |
Intel HD Graphics |
|
HDMI |
2 |
|
VGA |
1 |
|
LAN Chipset |
1 x Intel i210-AT Gigabit Ethernet |
|
LAN |
2 x RJ45 Ports for GbE |
|
Storage Type |
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD |
|
Line-out |
1 |
|
Mic-in |
1 |
|
Power Input |
DC 12V Input |
|
Serial Port |
3 x RS-232/422/485 (for i7 and i5) |
|
USB |
2 x USB 2.0 Ports and 2 x USB 3.0 |
|
GPIO |
4 In and 4 Out GPIO Ports (5V Level) |
|
Mini-Card Slot |
1 |
|
M.2 |
1 x A-E Key |
|
Relative Humidity |
10% RH – 90% RH (non-condensing) |
|
Operating Temp |
-30 ~ 60°C, ambient w/ 0.6m/s airflow |
|
Storage Temp |
-40 ~ 85°C |
|
Dimensions |
182 x 167.6 x 47 mm (for i3 and C1) |
|
Weight |
1200g (Barebone) |
|
Construction |
Aluminum Alloy |
|
Mounting |
Wall-mount |
