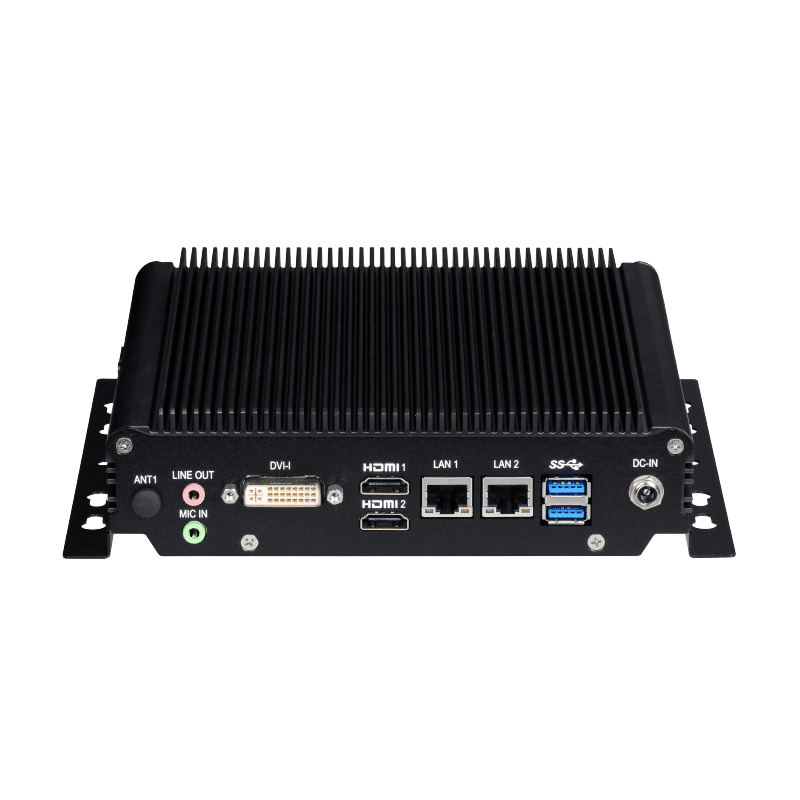

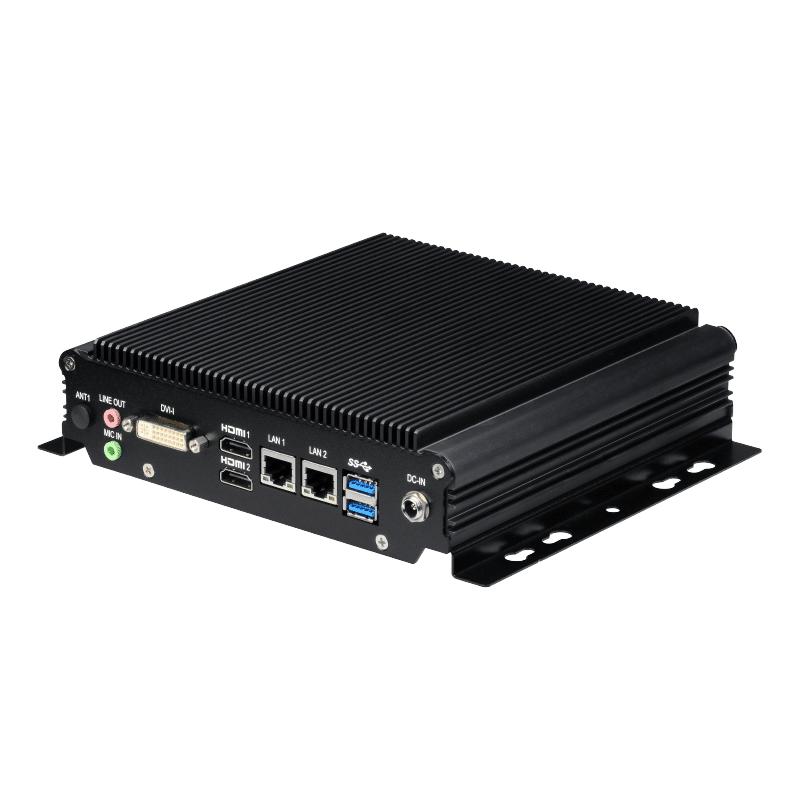

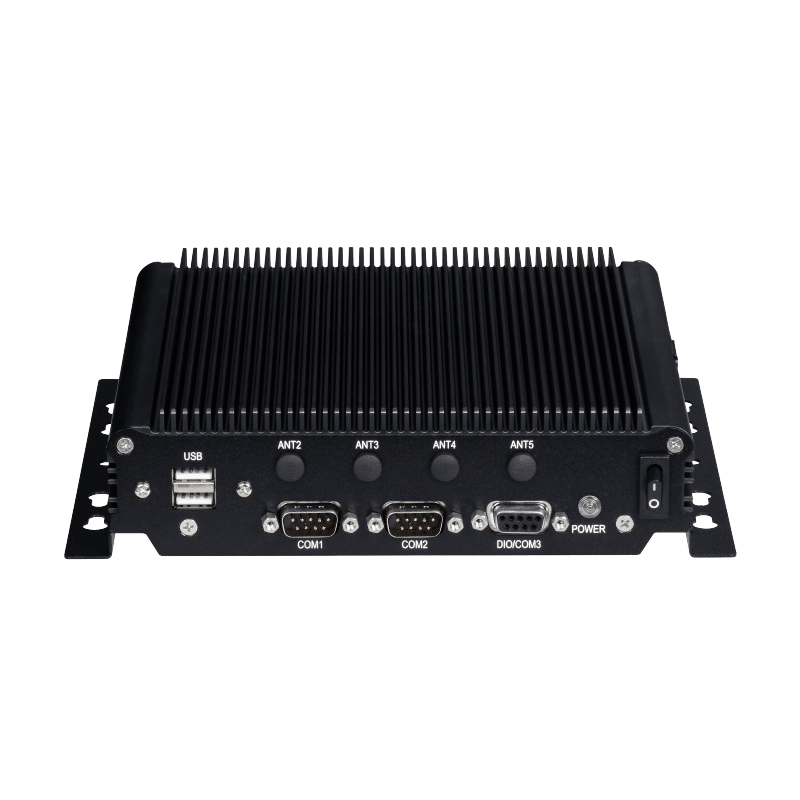

The SBOX-2602 is powered by Intel® 11th Gen Core i7-1185G7E with supporting triple display output (2 x HDMI® / VGA); it delivers high-performance computing and real-time capabilities for critical Industrial loT deployment. The SBOX-2602 is equipped with the newest Intel® Iris@ Xe Graphics and TSN technology, making it a perfect solution for Factory Automation, Service Robots, Cellular V2X, Smart Retail, and any AloT/Industry 4.0 applications. Also, this SBOX Fanless Box PC can be applied to industrial automation, digital signage, outdoor video surveillance, and automatic guided vehicle (AGV). The solutions can tackle all outdoor digital applications and extreme weather conditions.
|
Part Number |
SBOX-2602-C1 |
|
Processor |
Intel® 11th Gen CoreTM i7-1185G7E up to 2.8 GHz* |
|
Memory |
1 x DDR4 SO-DIMM up to 32 GB |
|
ATA |
1 x Intel® i210-AT Gigabit Ethernet |
|
Watchdog |
1~ 255 Level Reset |
|
TPM |
2.0 |
|
Graphics |
Intel® Iris® Xe Graphics (for Core™ i7/i5 SKU) |
|
HDMI |
2 |
|
VGA |
1 |
|
LAN Chipset |
1 x lntel® 2.5GbE supports vPro for i5 & i7 SKU |
|
LAN |
2 x RJ45 Ports for GbE |
|
Storage Type |
1 x SATA Connector for 2.5″ HDD/SSD |
|
M.2 |
1 x M.2 2280 Key M Slot |
|
Line-out |
1 |
|
Mic-in |
1 |
|
Power Input |
DC 12V Input with DC-Jack |
|
Serial Port |
2 x RS-232/422/485 (Optional 3rd serial port) |
|
USB |
2 x USB 2.0 |
|
GPIO |
4 In and 4 Out GPIO Ports (5V/100mA) |
|
SIM Socket |
2 x SIM Card Socket Support Onboard |
|
Antenna |
5 x SMA Type External Antenna Pre-cut Hole |
|
M.2 |
1 x M.2 3042/52 Key B for 5G/LTE modem |
|
Relative Humidity |
10% RH – 90% RH (non-condensing) |
|
Operating Temp |
-30 ~ 60°C, ambient w/ 0.6m/s airflow |
|
Storage Temp |
-40 ~ 85°C |
|
Dimensions |
210(L) x 171 (W) x 50(H) mm (Wall Mount Bracket Included) |
|
Weight |
1600g |
|
Construction |
Aluminum Alloy |
|
Mounting |
Wall-mount (Optional VESA and Din Rail Mounting Kit) |
