TKV-084-TB25V-MODUL

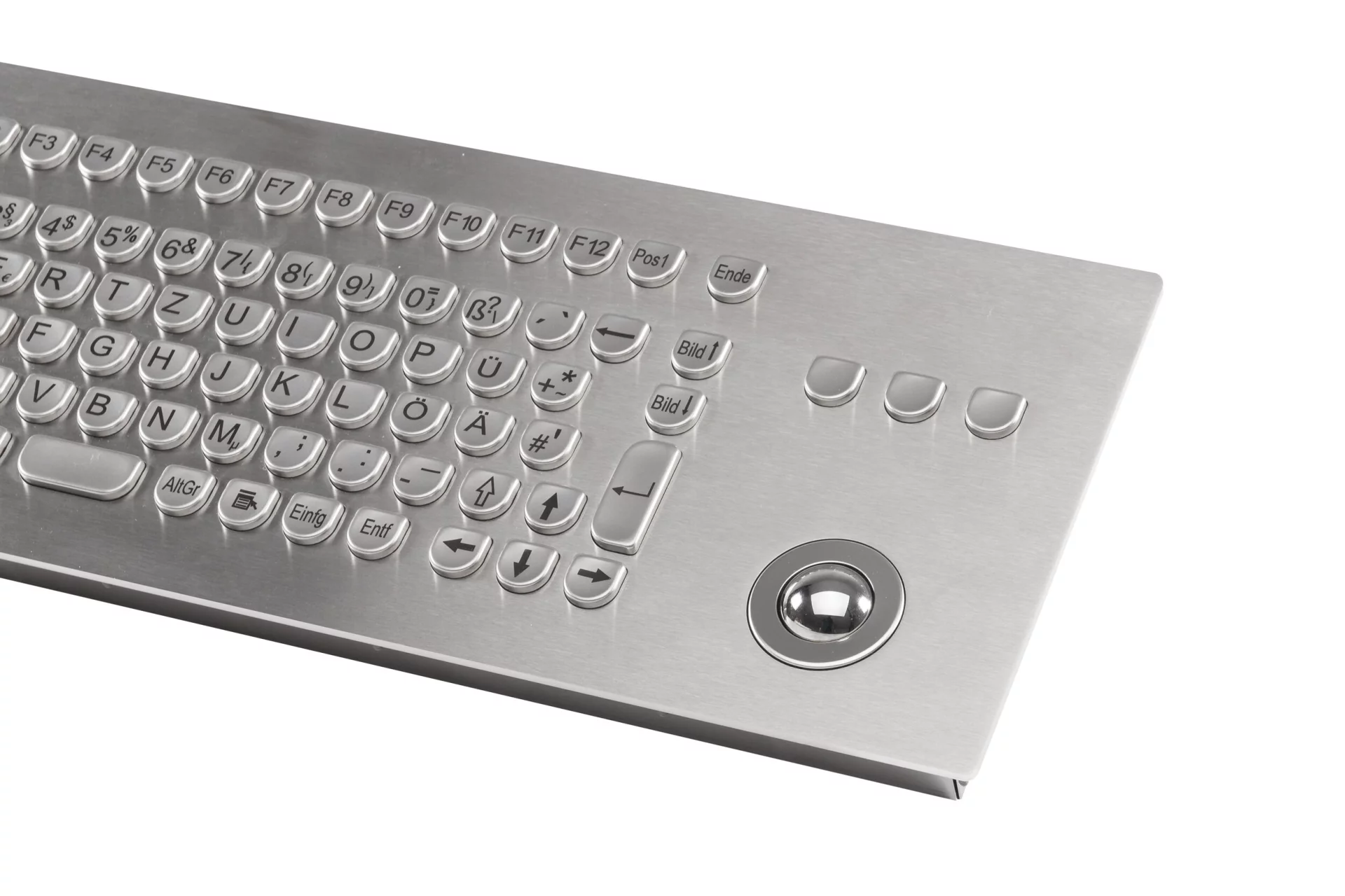

Stainless steel front mount keyboard with 25mm trackball – TKV-084

Stainless steel panel mount keyboard for frontal integration with 25-mm trackball
Compact full keyboard layout
Soft typing through switching elements
IP65 resistant against water and dust ingress
Individual modifications on demand

Technical Specifications

Keyboard Type

Front Mounting

Warranty

2 years

Number of keys

84

Key stroke

1.5

Operating force

1.00 N

Front Material

Stainless Steel

Front Finish

Brushed

Housing Color

Silver-Grey

Housing Material

Stainless Steel

Front Thickness

3 mm

Storage Temperature

-25°C - 80°C

Operating Temperature

-0°C - 65 °C

Length (Width)

307 mm

Width (Depth)

145 mm

Height

37 mm

Weight

1948 g

USB-Type

USB-A

USB-Compliance

USB 1.1 Compliant

Supported Operating Systems

Windows

Cable Length

2000 mm

Cable Color

Grey

Operating Voltage

5V

IP Protection Class

IP65 Frontside

Declarations & Certifications

CE
EMV
REACH
