TKV-105-TOUCH-MODUL

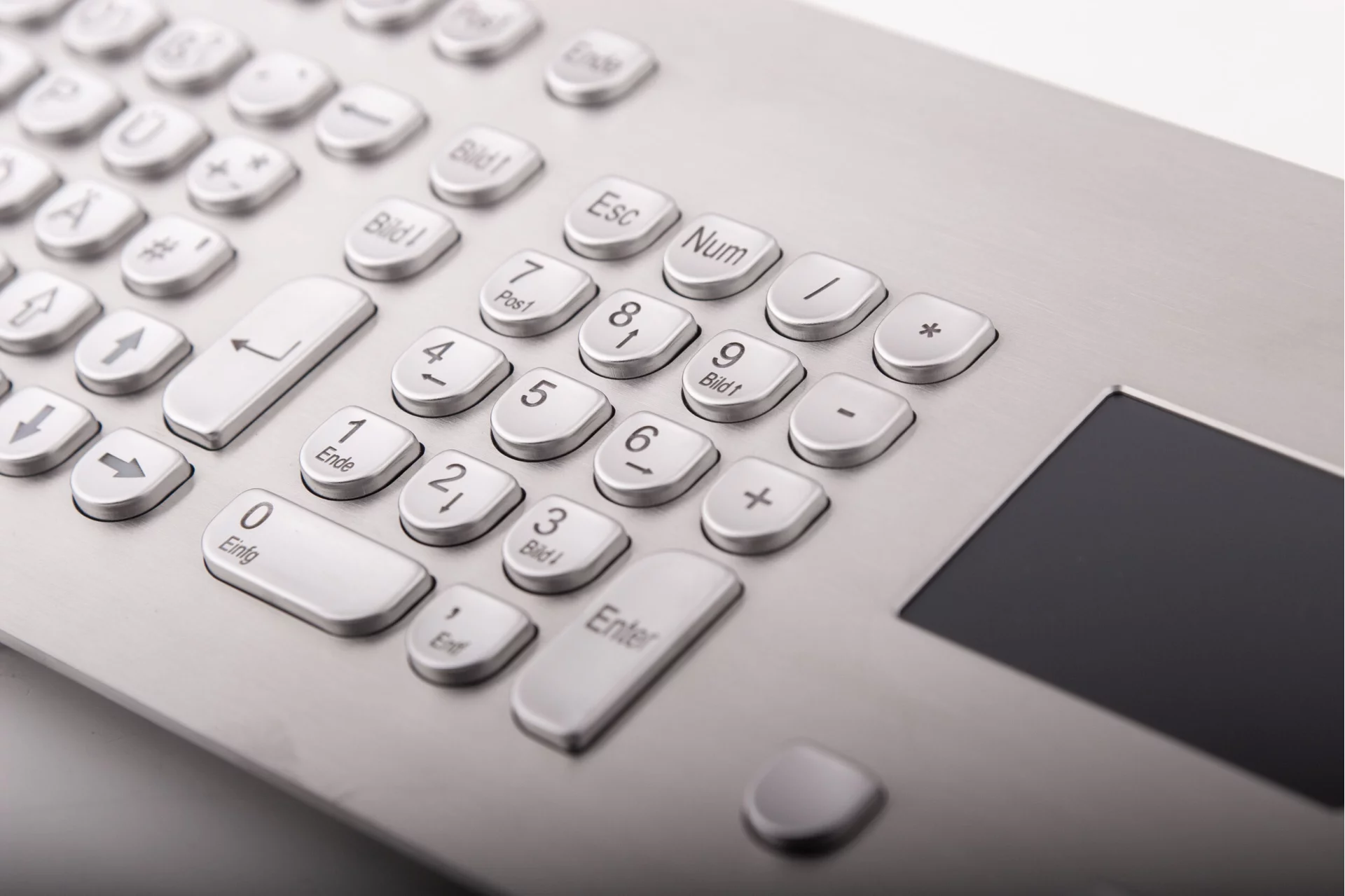

Stainless steel front mount keyboard with touchpad – TKV-084

Stainless steel panel mount keyboard for frontal integration with touchpad
Compact full keyboard layout
Soft typing through switching elements
IP65 resistant against water and dust ingress
Individual modifications on demand.

Technical Specifications

Keyboard Type

Front Mounting

Warranty

2 years

Number of keys

105

Key stroke

1.5

Operating force

1.00 N

Touchpad

Capacitive
Width: 65 mm
Length: 49 mm

Front Material

Stainless Steel

Front Finish

Brushed

Housing Color

Silver-Grey

Housing Material

Stainless Steel

Front thickness

3 mm

Storage Temperature

-25°C - 80°C

Operating Temperature

-0°C - 70 °C

Length (Width)

446 mm

Width (Depth)

145 mm

Height

36 mm

Weight

2560 g

USB-Type

USB-A

USB-Compliance

USB 2.0 Compliant

Supported Operating Systems

USB 2.0 supporting OS

Cable Length

2000 mm

Cable Color

Grey

Operating Voltage

5V

IP Protection Class

IP65 Frontside

Declarations & Certifications

CE
EMV
REACH
